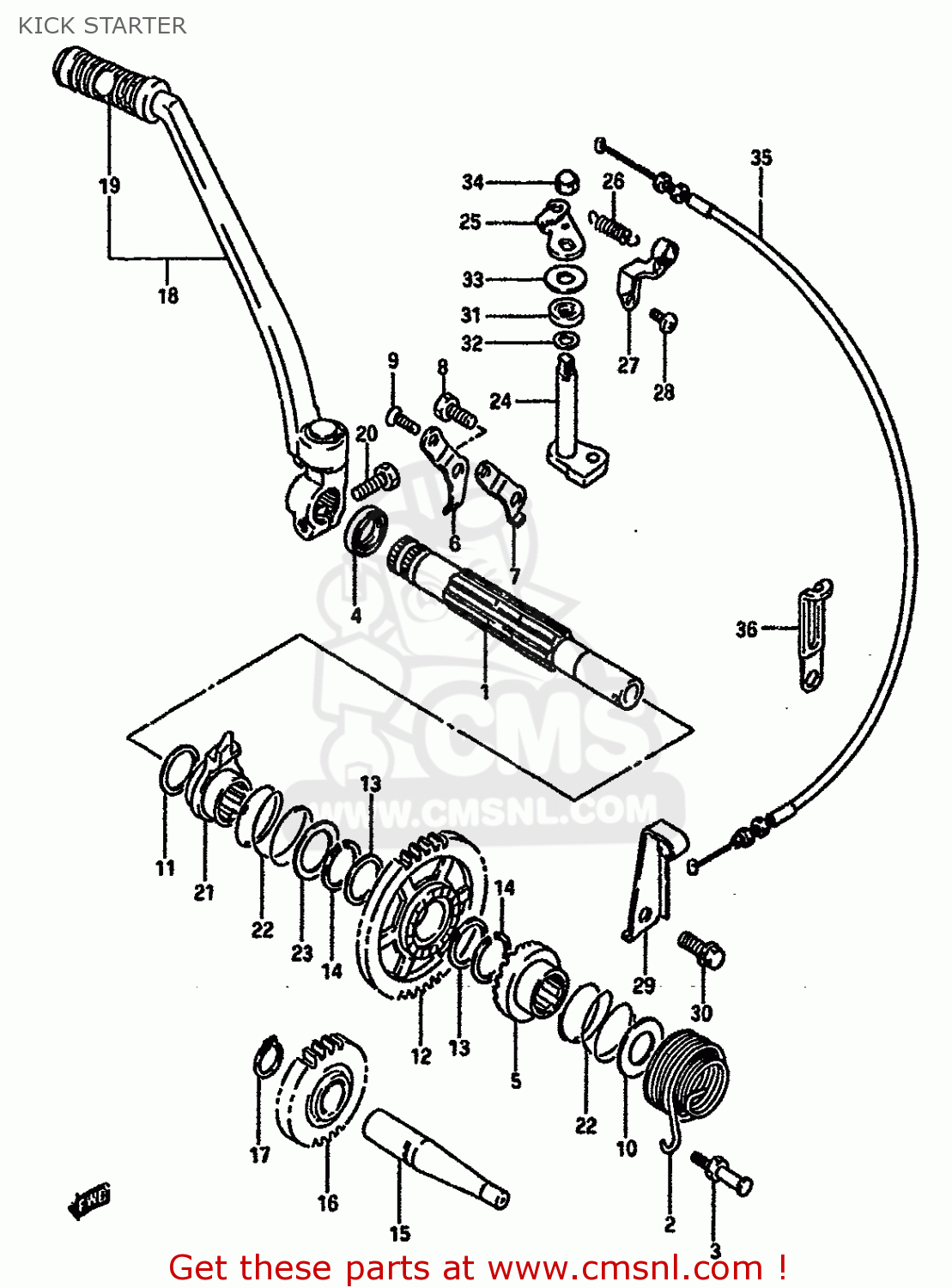

KICK STARTER

ref

part #

description

quantity

1

2621114A01
ref: 1

SHAFT,KICK STARTER

€ 63.00

2

0944841003
ref: 2

SPRING

€ 17.00

3

2623714500
ref: 3

BOLT,KICK SHAFT SPRING

€ 3.50

4

0928320044
ref: 4

SEAL,OIL(20X27X6)

€ 8.00

5

2623138201
ref: 5

STARTER,KICK

€ 25.50

6

2623214A00
ref: 6

GUIDE,KICK STARTER

€ 8.00

7

2623314A01
ref: 7

STOPPER,KICK STARTER

€ 6.00

8

0110708206
ref: 8

BOLT,8X1.25X2

€ 2.00

9

0212206167
ref: 9

SCREW

€ 2.00

10

0821117341
ref: 10

WASHER

€ 2.00

11

0821120281
ref: 11

WASHER,THRUST

€ 2.50

12

2624014A00
ref: 12

GEAR,KICK STARTER DRIVE

€ 52.50

13

0821122281
ref: 13

SHIM

€ 4.00

14

0938022006
ref: 14

CIRCLIP

€ 3.00

15

2622314A00
ref: 15

SHAFT,KICK STARTER IDLE

€ 16.50

16

2626037400
ref: 16

GEAR,KICK STARTER IDLE

€ 36.00

17

0938017001
ref: 17

CIRCLIP

€ 2.00

18

2630014A00
ref: 18

LEVER ASSEMBLY,KICK STARTER

€ 282.00

19

2635216401
ref: 19

RUBBER,KICK STARTER PEDAL

€ 4.00

20

0910008194
ref: 20

BOLT 8X25

€ 2.00

21

2681114A04
ref: 21

CAM,DECOMPRESSION

€ 35.50

22

0944032006
ref: 22

SPRING

€ 1.50

23

0821122341
ref: 23

WASHER

€ 3.00

24

2682014A05
ref: 24

SHAFT,DECOMP CAM FOLLOWER

€ 167.50

25

2682414A03
ref: 25

ARM,DECOMPRESSION SHAFT

€ 6.50

26

0944306061
ref: 26

SPRING

€ 2.50

27

2684114A01
ref: 27

HOLDER,DECOMPRESSION CABLE NO

€ 6.50

28

0211206106
ref: 28

SCREW

€ 1.50

29-1

2684214A01
ref: 29-1
~E.NO.106412,TO 2684

HOLDER,DECOMPRESSION CABLE NO

€ 6.00

29-2

2684214A02
ref: 29-2
E.NO.106413~

HOLDER,DECOMP CABLE NO.2

€ 6.00

30

0151708165
ref: 30

BOLT, LOWER

€ 3.00

31

0928210007
ref: 31

OIL SEAL

€ 7.50

32

0821110151
ref: 32

WASHER

€ 2.00

33

0916010020
ref: 33

WASHER(10.5X24X1)

€ 2.00

34

0831311085
ref: 34

NUT,M8X1.25X12

€ 2.00

35

2683014A05
ref: 35
E.NO.108278~,SEE NOT

CABLE,KICK STARTER DECOMP

€ 19.00

36

0940406401
ref: 36
E.NO.108278~

CLAMP L:35

€ 2.50

all assemblies
