SEAT (MODEL K)
DR600SU 1985 (F) GERMANY (E22)

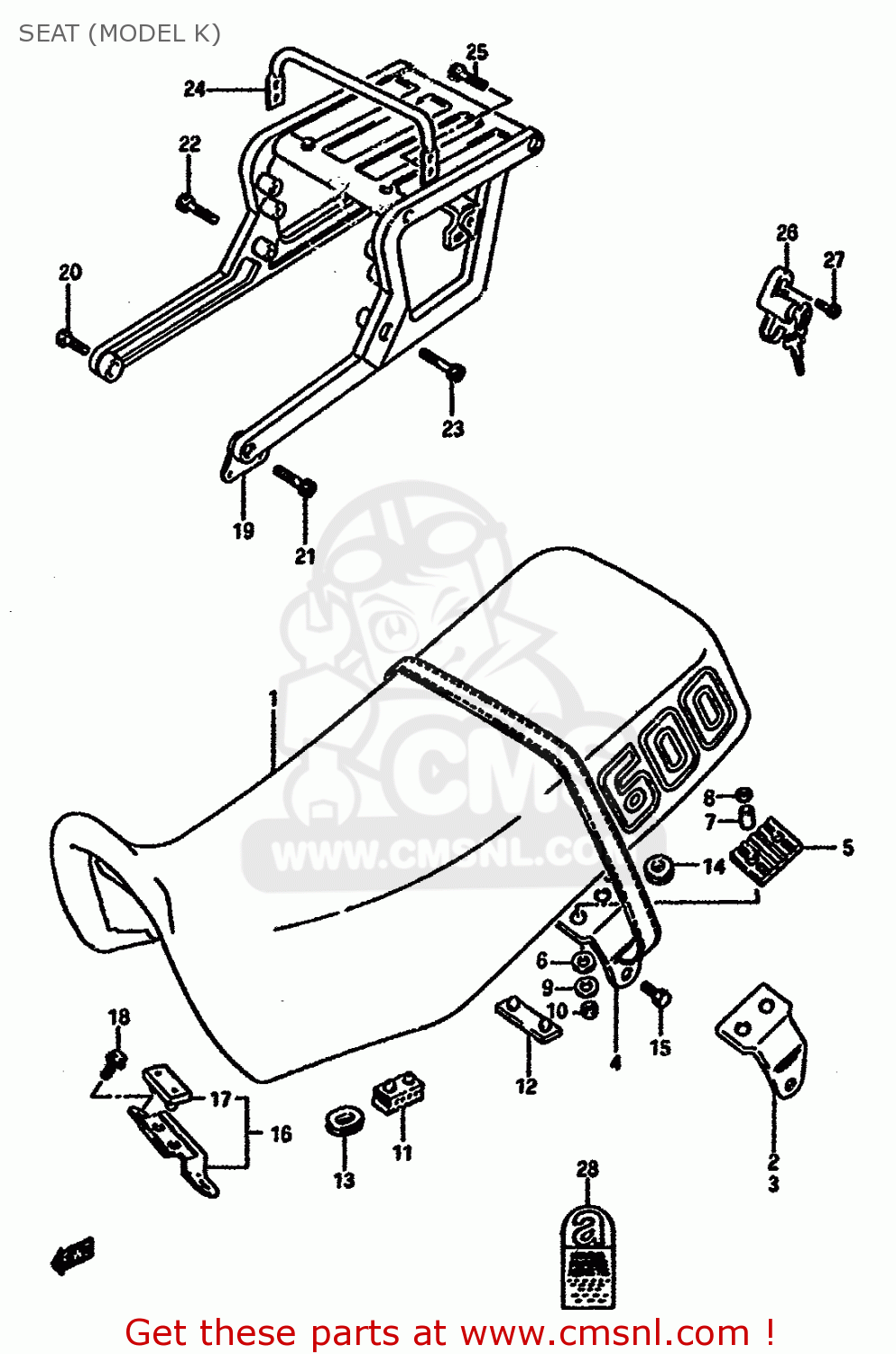

Seat (model k) diagram DR600SU 1985 (F) GERMANY (E22)
SEAT (MODEL K) DR600SU 1985 (F) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510015C804UZ
ref: 1-1
SEAT SET (BLUE)
€ 279.00
1-2
4510015C8058P
ref: 1-2
SEAT SET (BLACK)
€ 0.00
1-3
4510015C704UZ
ref: 1-3
E4
SEAT SET (BLUE)
€ 229.50
1-4
4510015C7058P
ref: 1-4
E4
SEAT SET (BLACK)
€ 0.00
1-5
4510015C604UZ
ref: 1-5
E16,E18
SEAT SET (BLUE)
€ 229.50
1-6
4510015C6058P
ref: 1-6
E16,E18
SEAT SET (BLACK)
€ 229.50
1-7
4510015C904UZ
ref: 1-7
E17,E22
SEAT SET (BLUE)
€ 0.00
1-8
4510015C9058P
ref: 1-8
E17,E22
SEAT SET (BLACK)
€ 0.00
1-9
4510015C504UZ
ref: 1-9
E21,E34,E39,E53
SEAT SET (BLUE)
€ 229.50
1-10
4510015C5058P
ref: 1-10
E21,E34,E39,E53
SEAT SET (BLACK)
€ 0.00
2
4511714A10
ref: 2
BRACKET,SEAT,RIGHT
€ 9.00
3
4511814A10
ref: 3
BRACKET,SEAT,LEFT
€ 3.50
4-1
4518014A004UZ
ref: 4-1
E16,E18
BAND,SEAT
€ 16.50
4-2
4518014A0058P
ref: 4-2
E16,E18
BAND,SEAT GRIP
€ 16.50
4-3
4518014A504UZ
ref: 4-3
E4,E21,E34,E39,E53
BAND, SEAT GRIP (BLUE)
€ 25.00
4-4
4518014A5058P
ref: 4-4
E4,E21,E34,E39,E53
BAND,SEAT
€ 25.00
5
4514723450
ref: 5
CUSHION,SEAT FR
€ 1.50
6
4515023450
ref: 6
CUSHION,FR PLATE
€ 3.00
7
4521923450
ref: 7
SPACER,SEAT SUPPORT
€ 2.50
8
0821206201
ref: 8
WASHER
€ 1.50
9
0832221066
ref: 9
WASHER, LOWER
€ 2.00
10
0831626066
ref: 10
NUT
€ 2.00
11
4514931300
ref: 11
CUSHION,SEAT(40X20X15)
€ 2.00
12
0932108009
ref: 12
CUSHION
€ 4.00
13
0932908003
ref: 13
CUSHION
€ 3.50
14
0932008018
ref: 14
CUSHION
€ 4.00
15
0110708166
ref: 15
BOLT, 8X1.25X1
€ 2.00
16
4512014A00
ref: 16
PLATE ASSY,SEAT FR HOOK
€ 16.50
17
0932108010
ref: 17
CUSHION
€ 4.00
18
0151708126
ref: 18
BOLT
€ 3.50
19
4630014A40
ref: 19
CARRIER ASSEMBLY,REAR
€ 282.00
20
0711008358
ref: 20
BOLT, FRONT RH
€ 4.50
21
0711008257
ref: 21
BOLT, FRONT LH
€ 3.50
22
0711008608
ref: 22
BOLT, REAR RH
€ 4.50
23
0711008508
ref: 23
BOLT ,8X50
€ 3.50
24
4632214A40
ref: 24
E16,E22
TUBE, PILLION HANDLE
€ 29.00
25
0151708167
ref: 25
E16,E22
BOLT 8X16
€ 3.00
26
9570031810
ref: 26
LOCK SET,HELMET
€ 49.50
27
0711006165
ref: 27
BOLT
€ 3.00
28
1196782000
ref: 28
E2
LABEL,ASBESTOS WARNING
€ 2.00
20-4
4631014A2034S
ref: 20-4
MODEL H
CARRIER COMP,SUPPORT
€ 89.50
20-5
4631014A30019
ref: 20-5
MODEL H E16,E22
CARRIER,SPORT (BLACK)
€ 0.00
20-6
4631014A3034S
ref: 20-6
MODEL H E16,E22
CARRIER,SPORT (BLUE)
€ 0.00
21
0110708207
ref: 21
MODEL F/G/H
BOLT
€ 3.00
22
0832121088
ref: 22
MODEL F/G/H
LOCK WASHER
€ 2.00
23
0832221088
ref: 23
MODEL F/G/H
WASHER
€ 2.00
24
0151708705
ref: 24
MODEL F/G/H
BOLT (8X70)
€ 2.50
25
4630014A40
ref: 25
MODEL J
CARRIER ASSEMBLY,REAR
€ 282.00
26
0711008358
ref: 26
MODEL J
BOLT, FRONT RH
€ 4.50
27
0711008258
ref: 27
MODEL J
BOLT
€ 3.50
28
0711008608
ref: 28
MODEL J
BOLT, REAR RH
€ 4.50
29
0711008508
ref: 29
MODEL J
BOLT ,8X50
€ 3.50
30
4632214A40
ref: 30
MODEL J E16,E22
TUBE, PILLION HANDLE
€ 29.00
31
0151708167
ref: 31
MODEL J E16,E22
BOLT 8X16
€ 3.00
32
9570031810
ref: 32
LOCK SET,HELMET
€ 49.50
33
0711006165
ref: 33
BOLT
€ 3.00
34
1196782000
ref: 34
E2
LABEL,ASBESTOS WARNING
€ 2.00
