CAM CHAIN

DR650REU 1994 (R) (E22)

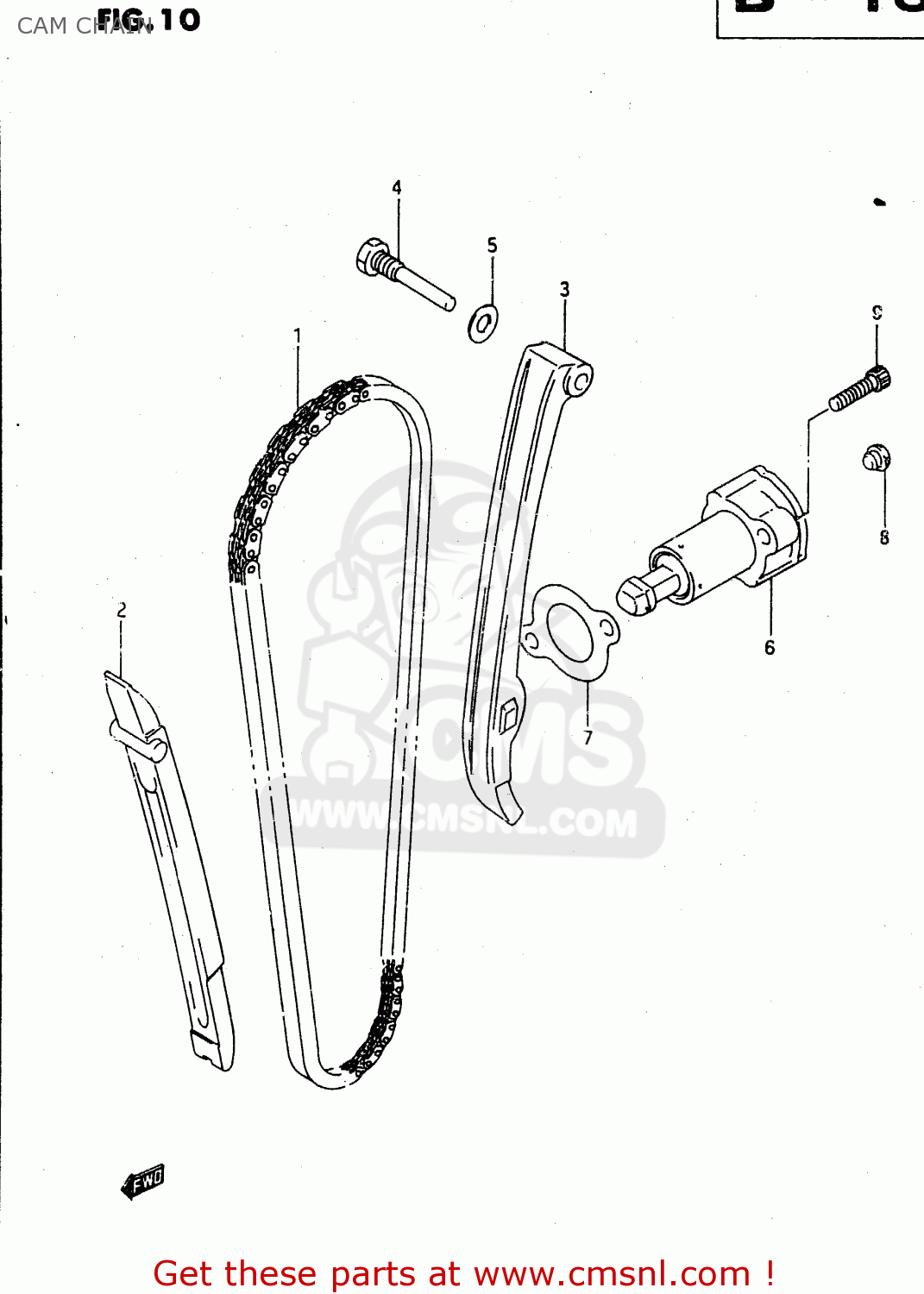

Cam chain diagram DR650REU 1994 (R) (E22)

CAM CHAIN DR650REU 1994 (R) (E22)

CAM CHAIN DR650REU 1994 (R) (E22)

prices are in EUR

ref

part #

description

quantity

1

1276037400
ref: 1
124LE

CHAIN,CAMSHAFT DRIVE

€ 132.50

2

1277137400
ref: 2

GUIDE,CAM CHAIN

€ 39.50

3

1281137401
ref: 3

TENSIONER,CAM CHAIN

€ 41.50

4

1281232410
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 3.50

5

0916808008
ref: 5

GASKET 8.2X14X1 (NAS)

€ 1.00

6

1283033C10
ref: 6

ADJUSTER ASSY,TENSIONER

€ 91.00

7

1283724A10
ref: 7

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.50

8

1283938200
ref: 8

PLUG,ADJUSTER

€ 2.00

9

0713006253
ref: 9

BOLT,CL.COVER

€ 3.00
