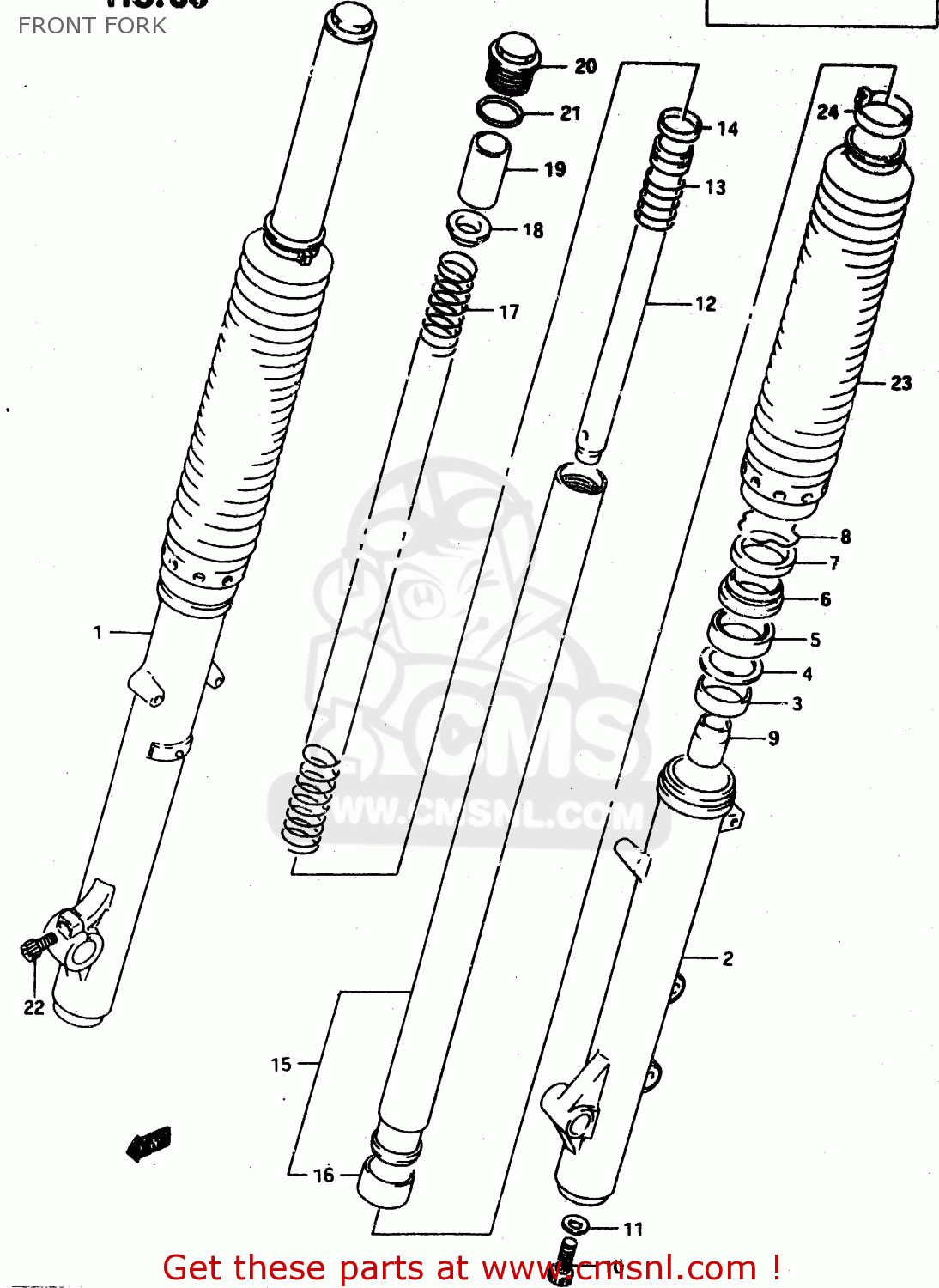

FRONT FORK

ref

part #

description

quantity

0

5110312E20
ref: 0

DAMPER ASSEMBLY,RIGHT

€ 858.50

0

5110412E20
ref: 0

DAMPER ASSEMBLY,LEFT

€ 858.50

1

5113012E20
ref: 1

TUBE,OUTER,R

€ 0.00

2

5114012E20
ref: 2

TUBE,OUTER,L

€ 354.50

3

5116728C00
ref: 3

METAL,SLIDE

€ 20.50

4

5115805A00
ref: 4

WASHER,FORK OIL SEAL

€ 5.00

5

5115344B00
ref: 5

SEAL,OIL

€ 17.50

6

5117344B00
ref: 6

SEAL,DUST

€ 13.00

7

5115844B00
ref: 7

WASHER

€ 6.00

8

5115649440
ref: 8

RING,OIL SEAL STOPPER

€ 5.50

9

5119512E20
ref: 9

PIECE,OIL LOCK

€ 15.50

10

5114714200
ref: 10

BOLT(14X25)

€ 5.50

11

5114814200
ref: 11

GASKET (NAS)

€ 2.00

12

5114612E20
ref: 12

CYLINDER

€ 0.00

13

5117712D00
ref: 13

SPRING,REBOUND

€ 6.00

14

5119624A00
ref: 14

RING,FR FORK PISTON

€ 6.50

15

5111012E20
ref: 15

TUBE,INNER

€ 322.00

16

5112128C00
ref: 16

PISTON

€ 23.00

17

5117112E20
ref: 17

SPRING,MAIN

€ 0.00

18

5117212D00
ref: 18

GUIDE,SPRING

€ 5.00

19

5117612D00
ref: 19

SPACER,SPRING

€ 8.00

20

5135110D00
ref: 20

CAP,FORK

€ 50.00

21

0928032001
ref: 21

O RING(D:3.5,ID:31.7)

€ 2.00

22

5113844B00
ref: 22

BOLT,SOCKET HEAD(8X22)

€ 4.00

23

5157112D0038K
ref: 23

BOOT(BLUE)

€ 73.50

23

5157112D001LU
ref: 23
MODEL S FOR 019

BOOT

€ 65.50

24

5157512D00
ref: 24

BAND,BOOT

€ 7.50
