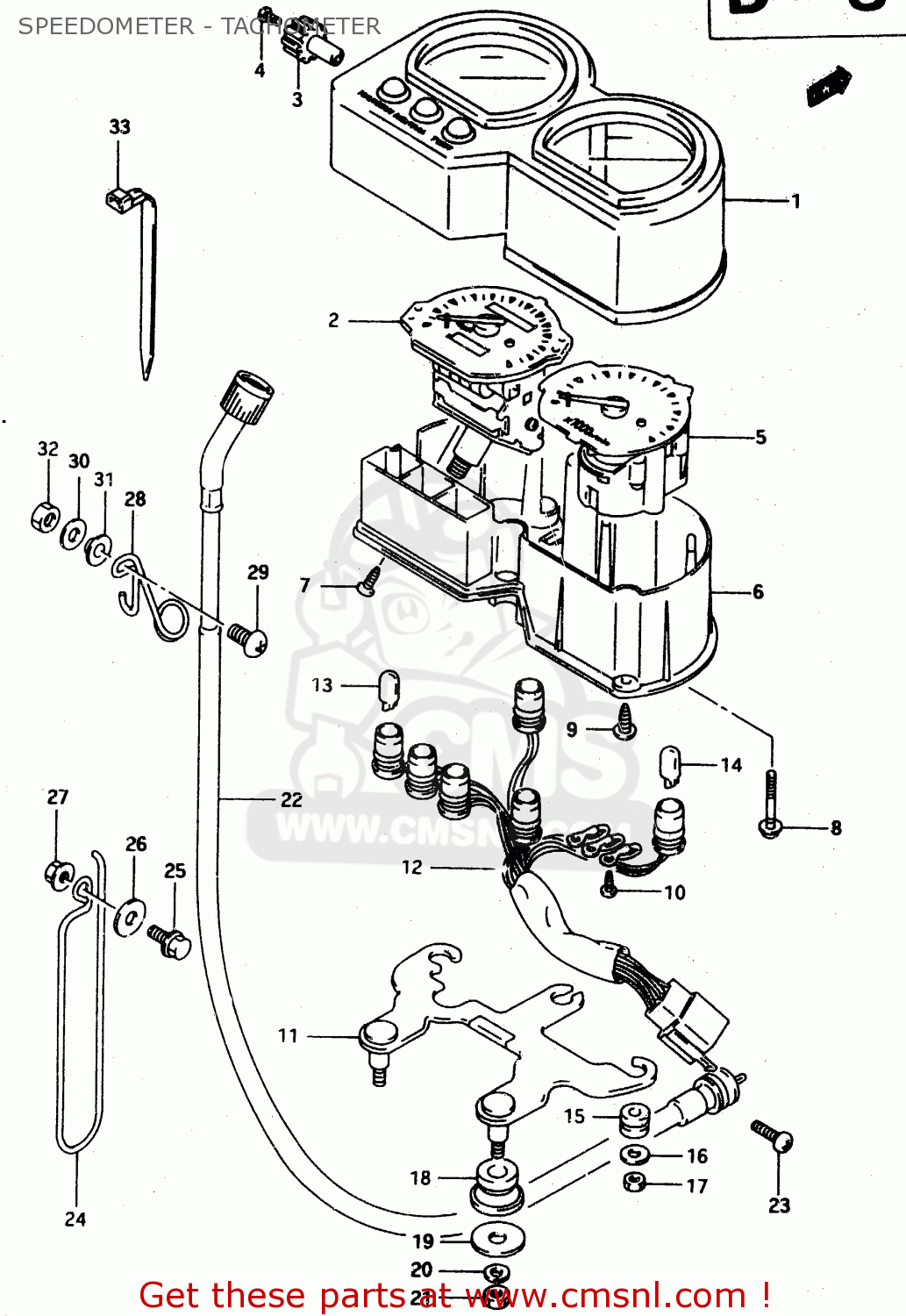

SPEEDOMETER - TACHOMETER - DR650REU 1994 (R) (E22)

ref

part #

description

quantity

1

3415012E00
ref: 1

VISOR

€ 76.00

1

3415012E10
ref: 1

VISOR

€ 76.00

2

3412012E00
ref: 2

SPEEDOMETER (MILE/KILO)

€ 0.00

2

3412012E10
ref: 2

SPEEDOMETER(KILO)

€ 261.00

3

3498029B50
ref: 3

KNOB

€ 4.00

4

0913902003
ref: 4

SCREW(2X6)

€ 2.00

5

3422012E20
ref: 5

TACHOMETER

€ 467.00

6

3411112E00
ref: 6

CASE,METER

€ 52.50

7

0211274103
ref: 7

SCREW

€ 2.00

8

3428332B00
ref: 8

SCREW (4X36)

€ 2.00

9

3418412B00
ref: 9

SCREW

€ 1.50

10

0211233103
ref: 10

SCREW

€ 1.50

11

3495012E00
ref: 11

BRACKET

€ 55.50

12

3417012E00
ref: 12

SOCKET,METER

€ 62.00

13

0947112028
ref: 13

BULB(12V3.4W,T10)

€ 3.50

14

0947112077
ref: 14

BULB(12V1.7W,T10,WB121)

€ 1.00

15

3418932B00
ref: 15

CUSHION

€ 5.00

16

0916005017
ref: 16

WASHER (5.5X16X1.2)

€ 2.50

17

0831000057
ref: 17

NUT

€ 2.50

18

3495631001
ref: 18

CUSHION,METER BRACKET

€ 4.50

19

0916008057
ref: 19

WASHER (8.5X20X1.6)

€ 2.00

20

0832101083
ref: 20
MODEL R

LOCK WASHER

€ 2.50

20

0916208008
ref: 20
MODEL S

WASHER,LOCK

€ 2.00

21

0831000083
ref: 21

NUT

€ 1.50

22

3491012E00
ref: 22

CABLE ASSY,SPEEDOMETER

€ 40.50

23

0211205163
ref: 23

SCREW

€ 2.00

24

3493814D30
ref: 24

GUIDE,METER CABLE NO.2

€ 8.00

25

0155006203
ref: 25

BOLT

€ 2.50

26

0916006066
ref: 26

WASHER(6.5X20X1.6)

€ 2.00

27

0831610063
ref: 27

NUT

€ 2.50

28

3493814D20
ref: 28

GUIDE,METER CABLE NO.3

€ 6.50

29

0214206163
ref: 29

SCREW

€ 2.50

30

0916006057
ref: 30

WASHER

€ 2.00

31

0916906053
ref: 31

WASHER

€ 2.00

32

0831000063
ref: 32

NUT 6MM

€ 2.00

33

0940714403
ref: 33

CLAMP(L:125)

€ 2.50

SPEEDOMETER - TACHOMETER

all assemblies
