STAND - REAR BRAKE

DR650REU 1994 (R) (E22)

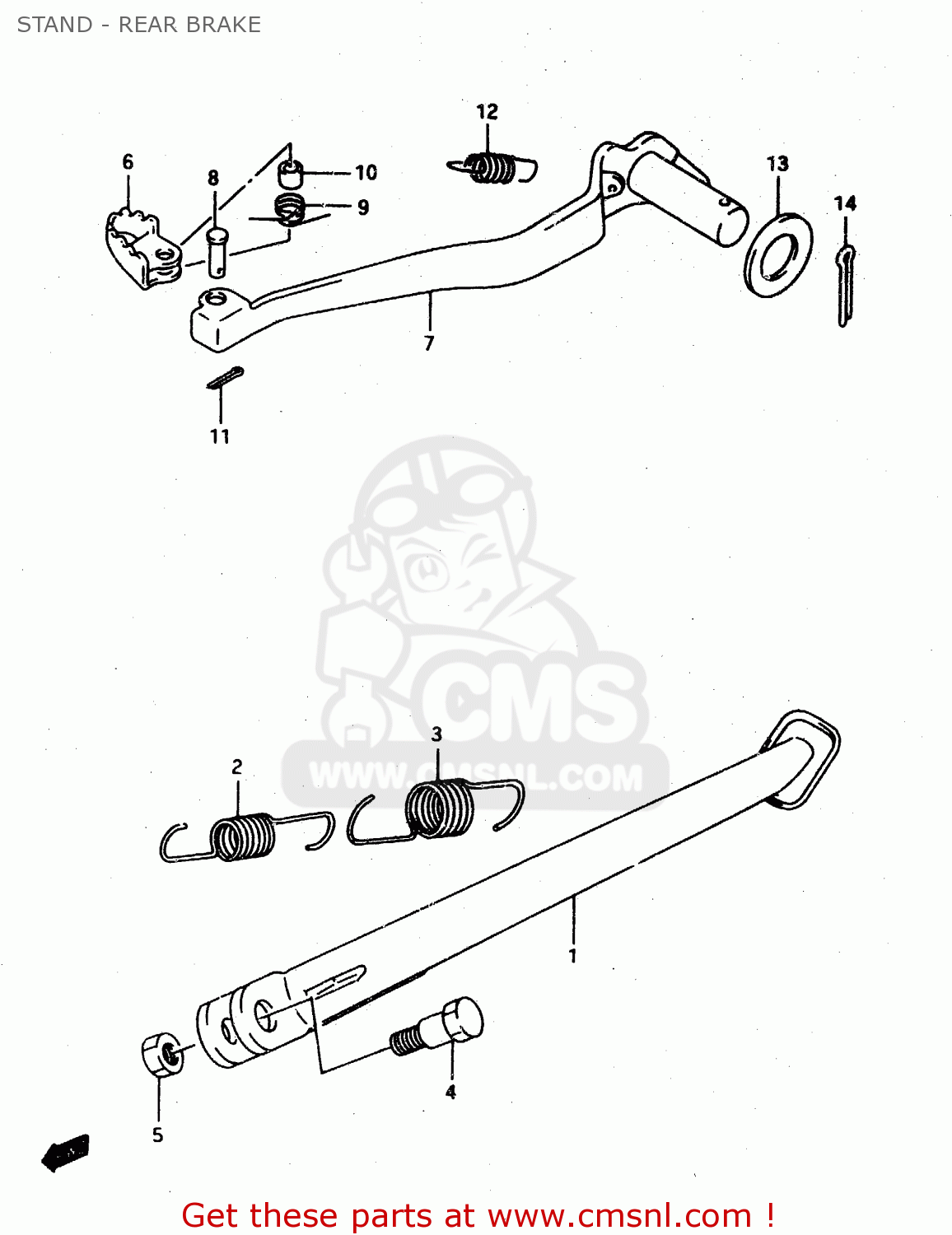

Stand - rear brake diagram DR650REU 1994 (R) (E22)

STAND - REAR BRAKE DR650REU 1994 (R) (E22)

STAND - REAR BRAKE DR650REU 1994 (R) (E22)

prices are in EUR

ref

part #

description

quantity

1

4231012E00019
ref: 1

STAND,PROP(BLACK)

€ 85.00

2

0944314030
ref: 2

SPRING

€ 6.00

3

0944322003
ref: 3

SPRING

€ 7.00

4

0911110047
ref: 4

BOLT(10X30)

€ 4.50

5

0915910097
ref: 5

NUT

€ 5.00

6

4311014130
ref: 6

PEDAL,BRAKE

€ 6.00

7

4312012D00
ref: 7

ARM,BRAKE PEDAL

€ 51.50

8

0920006038
ref: 8

PIN

€ 2.00

9

0944411005
ref: 9

SPRING

€ 3.00

10

0918006165
ref: 10

SPACER (6.6X9X6.5)

€ 2.50

11

0411120158
ref: 11

PIN

€ 1.50

12

0944310033
ref: 12

SPRING

€ 3.50

13

0916017501
ref: 13

WASHER (17.5X34X2)

€ 2.00

14

0411130308
ref: 14

COTTER PIN

€ 1.50
