REAR SWINGING ARM
DR650REU 1994 (R) (E22)

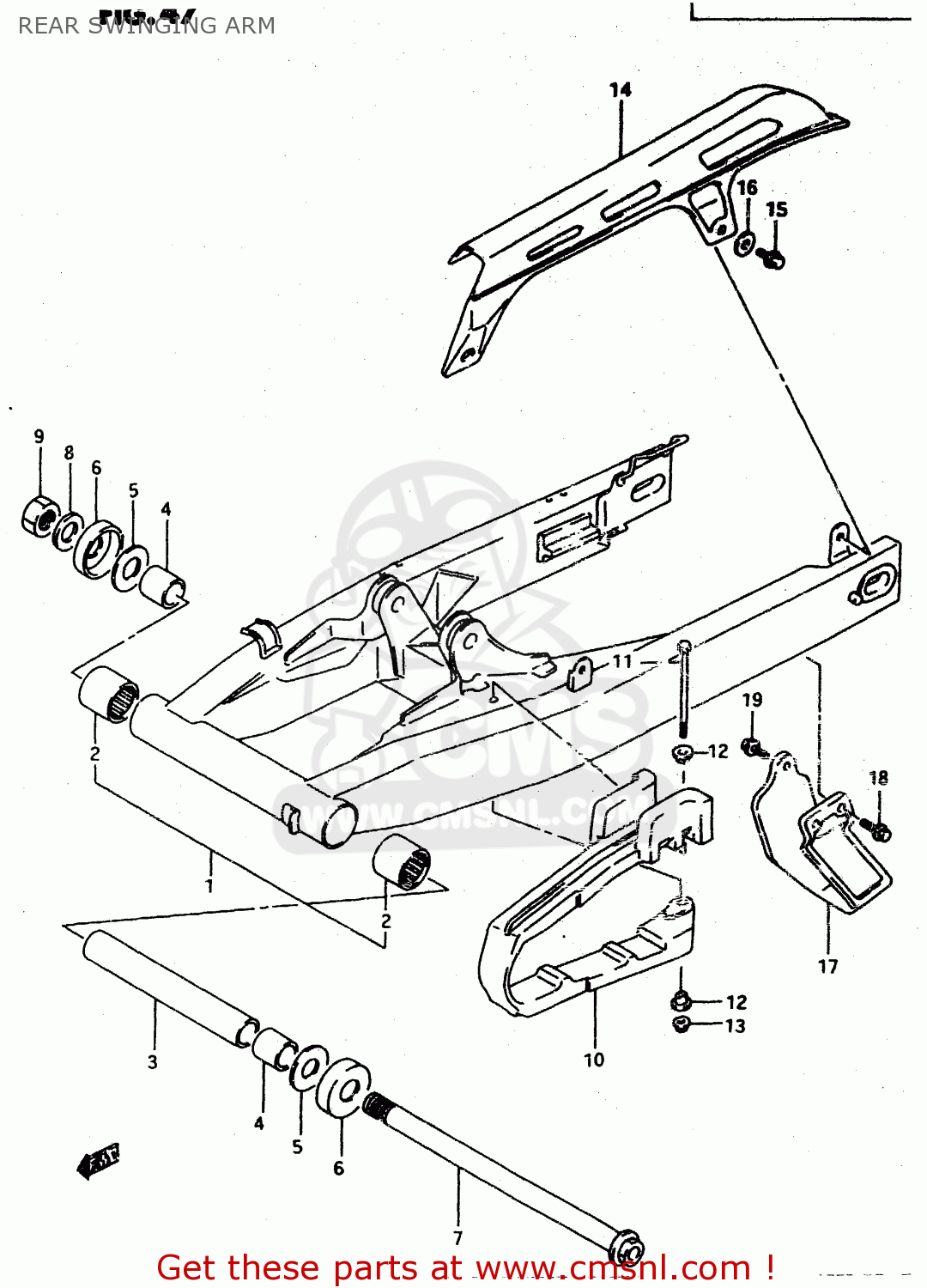

Rear swinging arm diagram DR650REU 1994 (R) (E22)
REAR SWINGING ARM DR650REU 1994 (R) (E22)
×
prices are in EUR
ref
part #
description
quantity
1
6100012D3013L
ref: 1
SWING ARM ASSEMBLY,REAR
€ 476.50
2
0926322022
ref: 2
BEARING(22X29X20)
€ 27.00
3
6128214A00
ref: 3
SPACER,RR SWGARM PIVOT CTR
€ 15.00
4
6125132410
ref: 4
SPACER,RR SWGARM PIVOT
€ 8.50
5
0821116341
ref: 5
WASHER
€ 2.00
6
6126214A00
ref: 6
SEAL,RR SWGARM PIVOT DUST
€ 7.50
7
6121112D10
ref: 7
SHAFT,RR SWINGINGARM PIVOT
€ 39.00
8
0832201167
ref: 8
WASHER
€ 2.00
9
0831921168
ref: 9
NUT 16MM
€ 5.00
10
6127312D20
ref: 10
BUFFER,CHAIN TOUCH DEFENSE
€ 40.00
11
6127544B00
ref: 11
BOLT,TOUCH DEFENSE FTG
€ 4.50
12
0916905020
ref: 12
WASHER
€ 3.00
13
0831931053
ref: 13
NUT
€ 3.00
14
6131014A00
ref: 14
CASE,CHAIN
€ 49.00
15
0155006103
ref: 15
BOLT
€ 2.50
16
0916906026
ref: 16
WASHER
€ 2.00
17
6134114A03
ref: 17
GUIDE,CHAIN
€ 25.00
18
0155006123
ref: 18
BOLT
€ 2.50
19
0155006163
ref: 19
BOLT
€ 2.50
