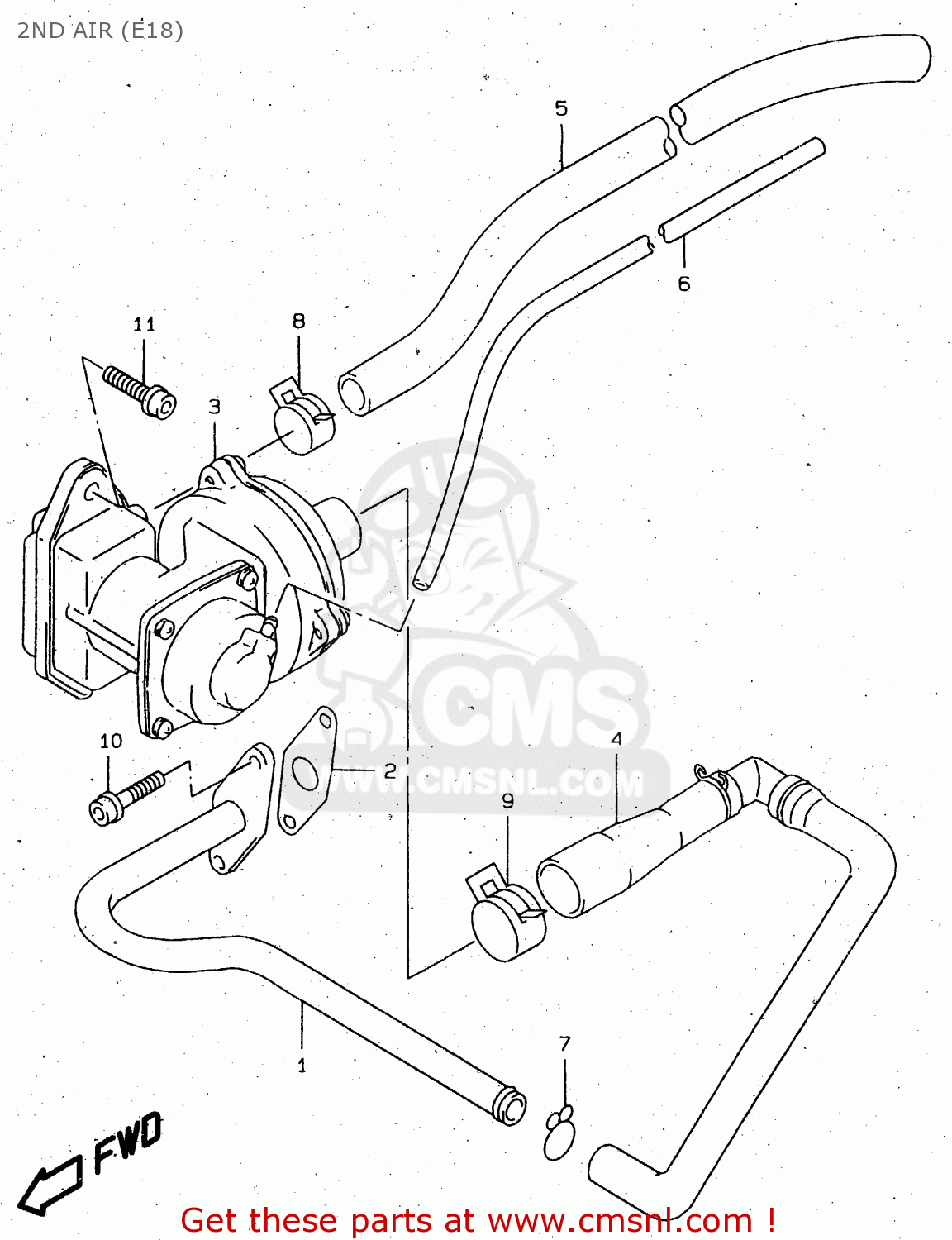

2ND AIR (E18)

DR650SE 1997 (V) (E02 E04 E17 E18 E22 E24 E34)

2nd air (e18) diagram DR650SE 1997 (V) (E02 E04 E17 E18 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

1841032E00
ref: 1
~F.NO.505229

PIPE, 2ND AIR

€ 36.50

1841032E10
ref: 1
F.NO.505230~

PIPE, 2ND AIR

€ 0.00

1844145C00
ref: 2

GASKET,SECOND AIR PIPE (N (NAS)

€ 6.00

1845014D00
ref: 3

VALVE ASSY,2ND AIR REED

€ 377.50

1846032E00
ref: 4

HOSE ASSY,2ND AIR

€ 46.00

0935212163600
ref: 5
L:600->350

HOSE(12X16X600)

€ 24.50

0935940701600
ref: 6
L:600->300

HOSE(4X7X600)

€ 9.00

0940113413
ref: 7
MODEL T/V

CLIP

€ 2.50

0940113417
ref: 7
MODEL W/X

CLIP

€ 2.50

0940115404
ref: 8

CLIP

€ 2.50

0940123403
ref: 9
MODEL T

CLIP

€ 4.50

0940122404
ref: 9
MODEL V/W/X

CLIP,SECOND AIR HOSE

€ 3.00

0712006163
ref: 10

BOLT MAGNETO S

€ 2.50

0712006203
ref: 11

BOLT

€ 3.50
