FRONT CALIPER

DR650SE 1997 (V) (E02 E04 E17 E18 E22 E24 E34)

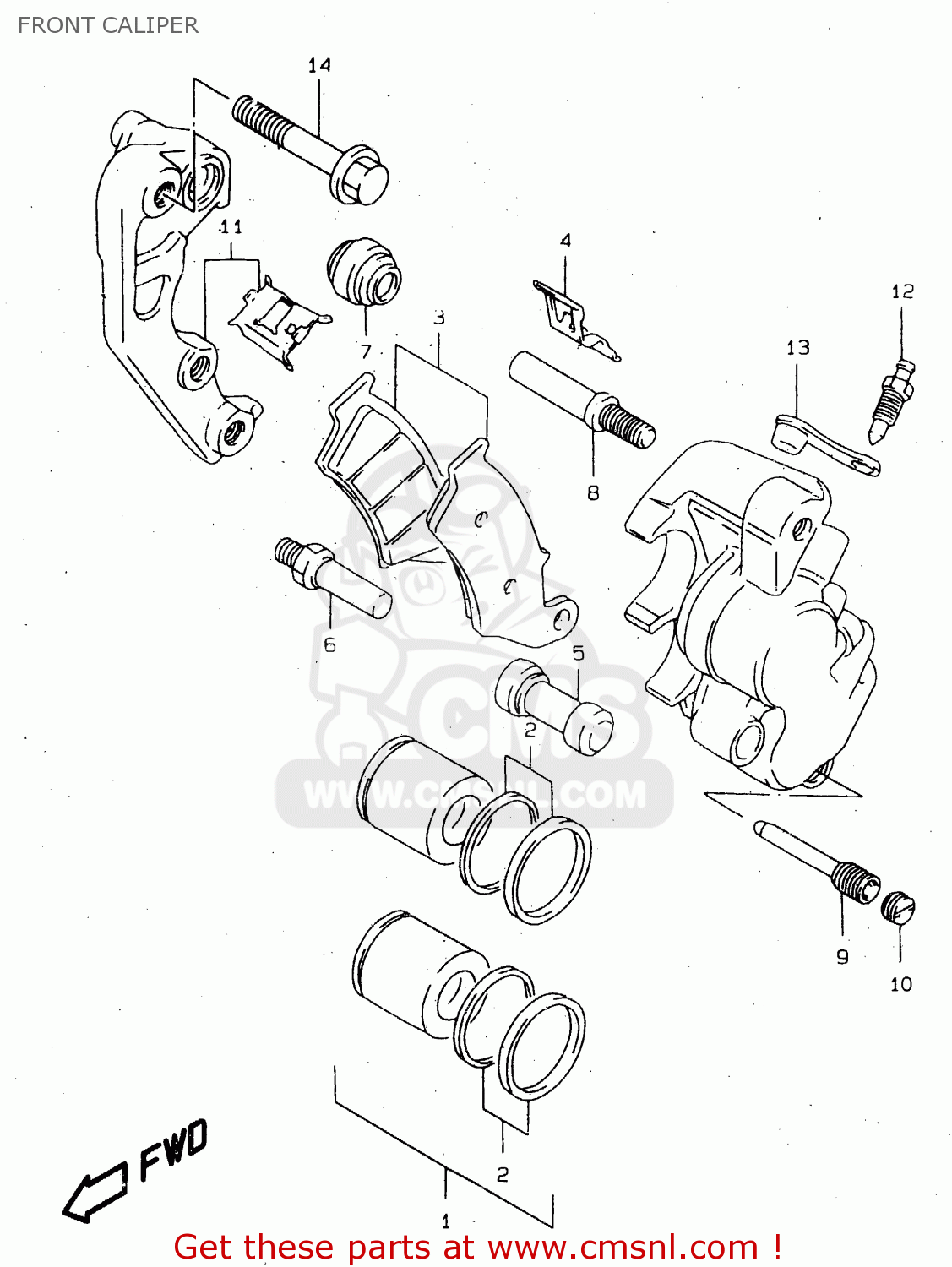

Front caliper diagram DR650SE 1997 (V) (E02 E04 E17 E18 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

5930013E00
ref: 0

CALIPER ASSEMBLY,FRONT,LEFT

€ 392.00

5930027840
ref: 1

PISTON SET

€ 44.00

5930013820
ref: 2

SEAL SET,PISTON

€ 34.50

5930013830
ref: 3

PAD SET (NAS)

€ 42.00

5931513E00
ref: 4

SPRING,PAD

€ 12.00

5938613A00
ref: 5

BOOT

€ 6.50

5938227C30
ref: 6

BOLT

€ 7.50

5930314500
ref: 7

BOOT

€ 5.50

5930527C00
ref: 8

PIN

€ 13.50

5934513E00
ref: 9

PIN,HANGER

€ 13.50

5914621E10
ref: 10

PLUG,PIN

€ 6.50

5935013E00
ref: 11

BRACKET

€ 90.50

5912101A00
ref: 12

BLEEDER

€ 8.50

5912201A00
ref: 13

CAP,BLEEDER

€ 4.50

0910308338
ref: 14

BOLT(8X40)

€ 3.50

FRONT CALIPER

all assemblies
