CYLINDER

DR650SE 1997 (V) (E02 E04 E17 E18 E22 E24 E34)

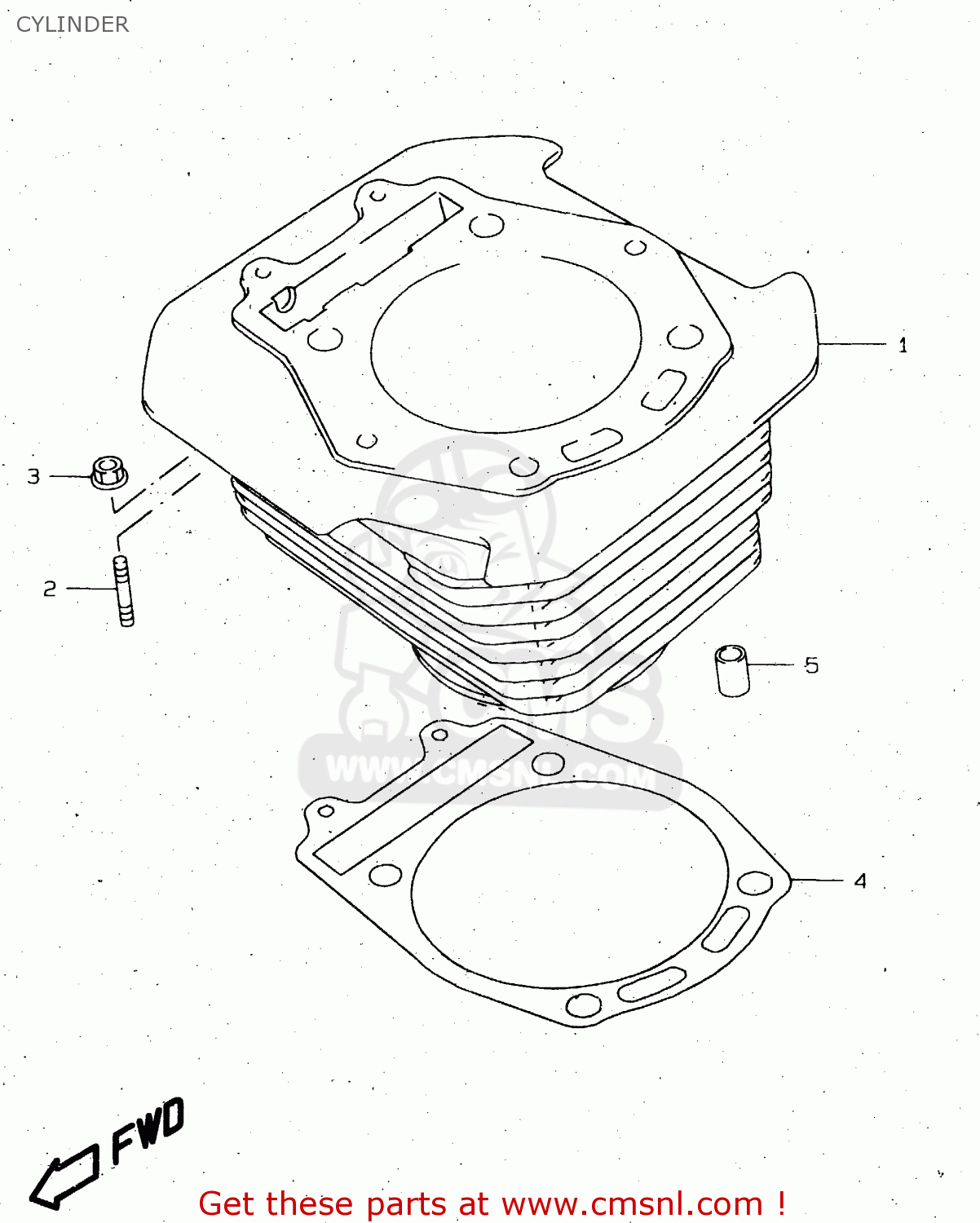

Cylinder diagram DR650SE 1997 (V) (E02 E04 E17 E18 E22 E24 E34)

CYLINDER DR650SE 1997 (V) (E02 E04 E17 E18 E22 E24 E34)

CYLINDER DR650SE 1997 (V) (E02 E04 E17 E18 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

1

1121132E010F0
ref: 1
MODEL T

CYLINDER

€ 759.50

1

1121132E020F0
ref: 1
MODEL V/W/X

CYLINDER

€ 759.50

2

0142106208
ref: 2

STUD 6X20

€ 2.50

3

0831610063
ref: 3

NUT

€ 2.50

4

1124104F00
ref: 4
<-11241-32E00

GASKET,CYLINDER (NAS)

€ 17.00

5

0421113189
ref: 5

PIN

€ 2.50
