STARTER CLUTCH

DR650SE 1997 (V) (E02 E04 E17 E18 E22 E24 E34)

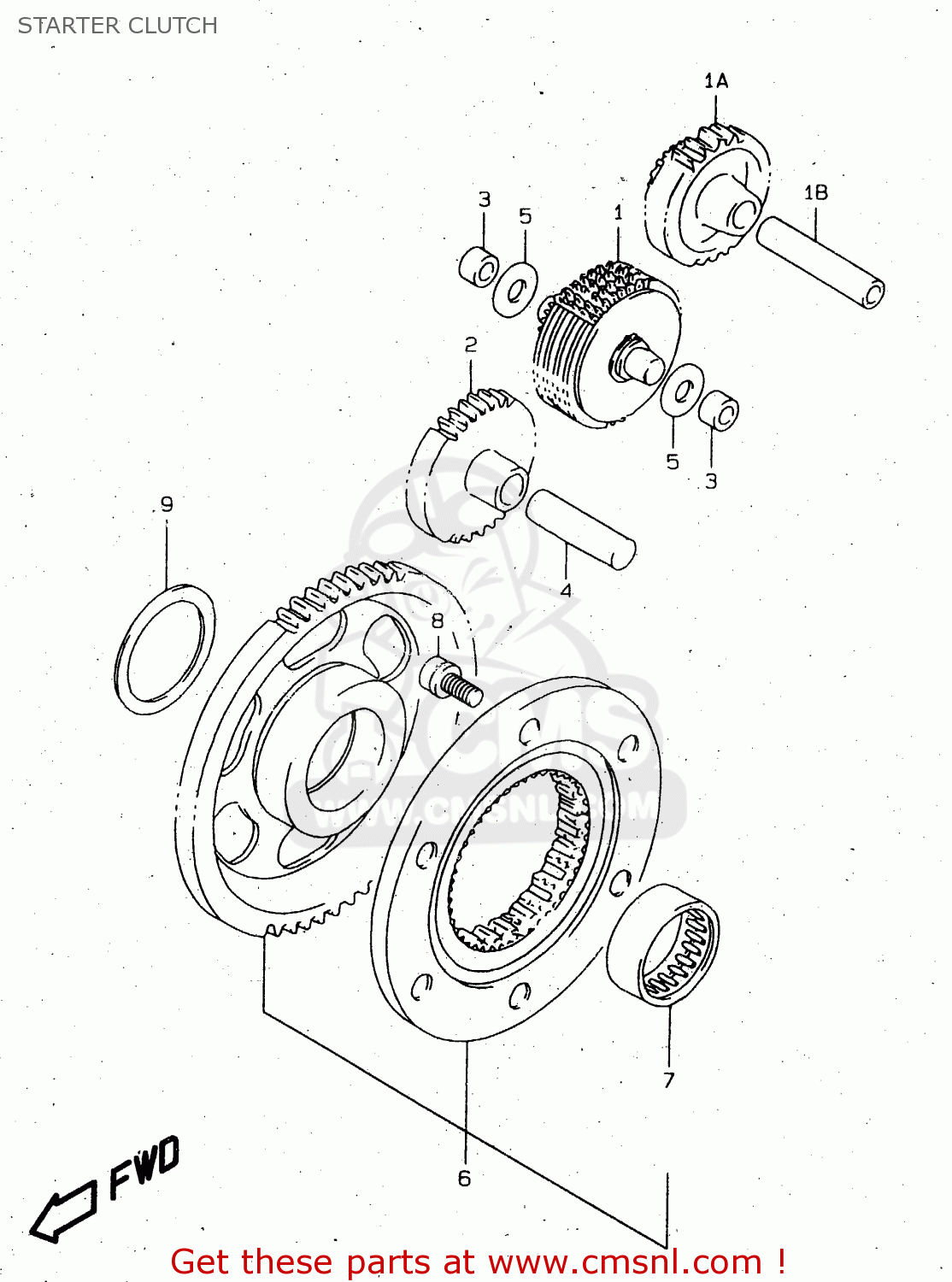

Starter clutch diagram DR650SE 1997 (V) (E02 E04 E17 E18 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

1260012D00
ref: 1
MODEL T/V

LIMITER ASSEMBLY,STARTER IDLER GEAR

€ 122.50

1261132E00
ref: 1A
MODEL W/X

GEAR,STARTER IDLE NO.1

€ 58.50

0920612005
ref: 1B
MODEL W/X

PIN(8X12X59)

€ 7.50

1261212D01
ref: 2

GEAR,STARTER IDLE NO.2(NT:27)

€ 40.50

1261831D01
ref: 3
MODEL T/V

BUSH,LIMITER GEAR SHAFT

€ 17.50

0920212002
ref: 4

PIN

€ 7.50

0821110221
ref: 5
MODEL T/V

WASHER

€ 2.50

1260009860
ref: 6
<-12600-12810

CLUTCH SET,STARTER

€ 210.00

0926331009
ref: 7

BEARING(31X39X17.8)

€ 25.50

0713008203
ref: 8

BOLT

€ 3.00

0821140521
ref: 9
MODEL T

SHIM

€ 5.50

0918140195
ref: 9
MODEL V

SHIM(40X52X1)

€ 5.50
