TRANSMISSION

DR650SE 1997 (V) (E02 E04 E17 E18 E22 E24 E34)

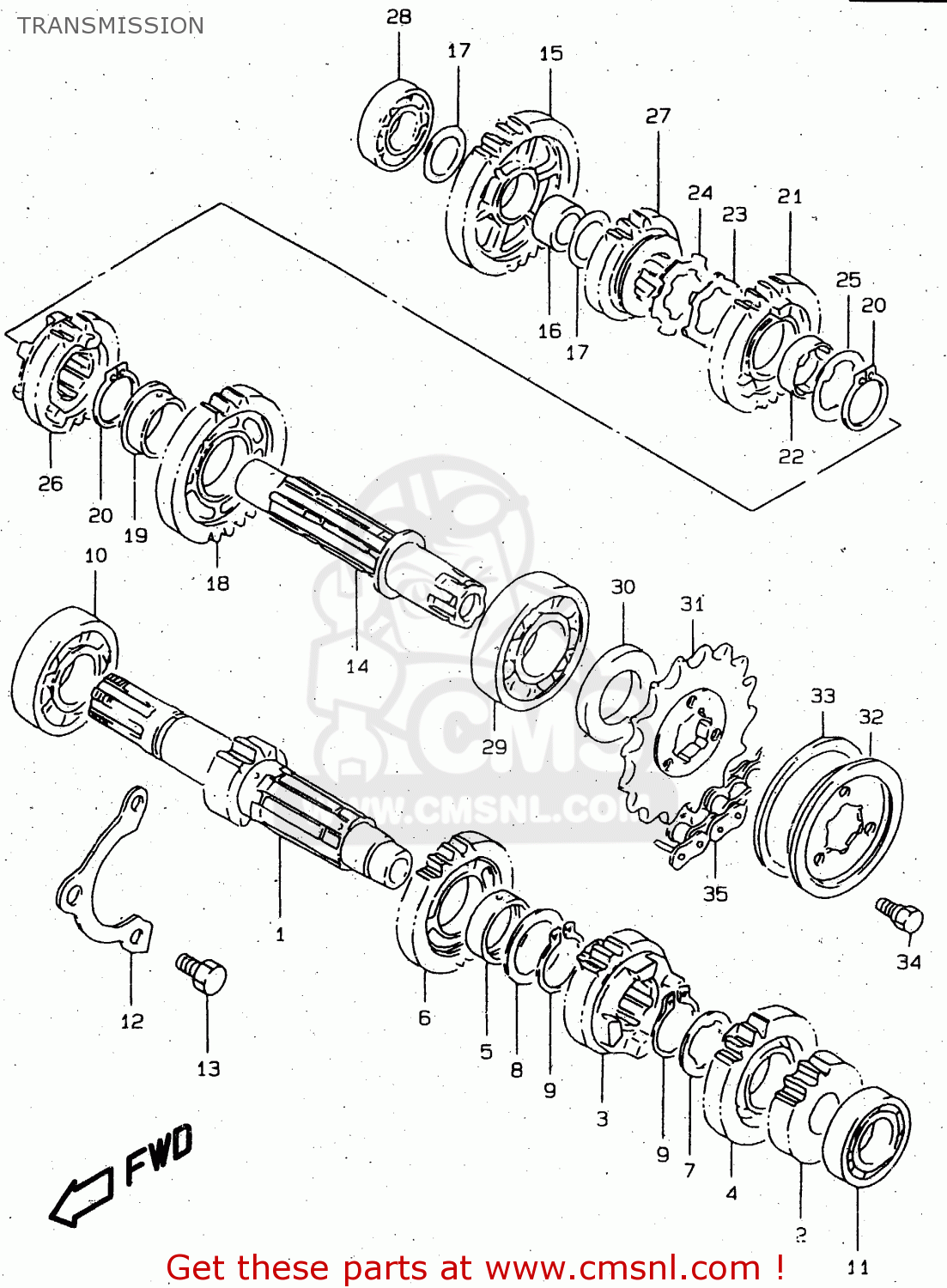

Transmission diagram DR650SE 1997 (V) (E02 E04 E17 E18 E22 E24 E34)

TRANSMISSION DR650SE 1997 (V) (E02 E04 E17 E18 E22 E24 E34)
TRANSMISSION DR650SE 1997 (V) (E02 E04 E17 E18 E22 E24 E34)
TRANSMISSION DR650SE 1997 (V) (E02 E04 E17 E18 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
2412014810
ref: 1
<-24121-14A10
SHAFT SET,CNTR
2412014810
€ 175.00
2
2422114A10
ref: 2
GEAR,2ND DRIVE
2422114A10
€ 66.50
3
2423112D20
ref: 3
GEAR,THIRD DRIVE
2423112D20
€ 73.00
4
2424114A00
ref: 4
MODEL T/V
GEAR,FOURTH DRIVE
€ 69.00
4
2424114A10
ref: 4
MODEL W/X
GEAR,4TH DRIVE
2424114A10
€ 69.00
4
2424114A00
ref: 4
MODEL W, P37
GEAR,FOURTH DRIVE
€ 69.00
4
2424114A10
ref: 4
MODEL X, P37
GEAR,4TH DRIVE
2424114A10
€ 69.00
5
0930025023
ref: 5
BUSHING 25X29X10
€ 9.50
6
2425114A10
ref: 6
GEAR,5TH DRIVE
2425114A10
€ 69.00
7
0916725012
ref: 7
WASHER,LOCK
0916725012
€ 3.50
8
0821125341
ref: 8
MODEL T
WASHER
0821125341
€ 3.50
8
0918125167
ref: 8
MODEL V/W/X
SHIM(25X34X1)
0918125167
€ 3.50
9
0938025003
ref: 9
RING,SNAP
0938025003
€ 3.00
10
0926222028
ref: 10
BEARING(22X56X16)
0926222028
€ 59.50
11
0926217018
ref: 11
BEARING
0926217018
€ 25.00
12
2474114A00
ref: 12
RETAINER,CNTR SHAFT BEARING
2474114A00
€ 5.00
13
0150008163
ref: 13
BOLT
0150008163
€ 2.00
14
2413014A10
ref: 14
<-24131-14A10
SHAFT,DRIVE
2413014A10
€ 129.50
15
2431114A01
ref: 15
GEAR,1ST DRIVEN
2431114A01
€ 67.50
16
0930020032
ref: 16
BUSH(20X24X13)
0930020032
€ 10.00
17
0821120301
ref: 17
MODEL T
WASHER
0821120301
€ 3.00
17
0918120195
ref: 17
MODEL V/W/X
SHIM(20X30X1)
0918120195
€ 3.00
18
2432114A10
ref: 18
GEAR,2ND DRIVEN
2432114A10
€ 69.00
19
0930125002
ref: 19
BUSH
0930125002
€ 10.50
20
0938025003
ref: 20
RING,SNAP
0938025003
€ 3.00
21
2433114A20
ref: 21
GEAR,3RD DRIVEN
2433114A20
€ 72.50
22
2433224500
ref: 22
BUSHING
2433224500
€ 9.50
23
0916925001
ref: 23
WASHER
0916925001
€ 2.00
24
0916725013
ref: 24
WASHER,LOCK
0916725013
€ 2.50
25
0916725016
ref: 25
WASHER,LOCK
0916725016
€ 3.00
26
2434114A10
ref: 26
<-24341-14A01
GEAR,4TH DRIVEN
2434114A10
€ 67.00
27
2435114A00
ref: 27
MODEL T/V
GEAR,FIFTH DRIVEN
€ 68.50
27
2435114A10
ref: 27
MODEL W/X
GEAR,5TH DRIVEN
2435114A10
€ 68.50
27
2435114A00
ref: 27
MODEL W, P37
GEAR,FIFTH DRIVEN
€ 68.50
27
2435114A10
ref: 27
MODEL X, P37
GEAR,5TH DRIVEN
2435114A10
€ 68.50
28
0926220059
ref: 28
BEARING(20X42X12)
0926220059
€ 14.50
29
0926225083
ref: 29
BALL BEARING 25X62X17
0926225083
€ 49.00
30
0928325096
ref: 30
SEAL,OIL(25X44X7)
0928325096
€ 8.50
31
2751131D00
ref: 31
SPROCKET,ENGINE(15T)
2751131D00
€ 23.50
32
2751244B00
ref: 32
PLATE,ENGINE SPROCKET
2751244B00
€ 4.00
33
2751737400
ref: 33
DAMPER,ENGINE SPROCKET
2751737400
€ 9.50
34
0911106039
ref: 34
BOLT(6X13)
0911106039
€ 6.00
35
2760032C10110
ref: 35
CHAIN,DRIVE(DID525V9,110L)
€ 160.00
