MAGNETO

DR650SE 1997 (V) (E02 E04 E17 E18 E22 E24 E34)

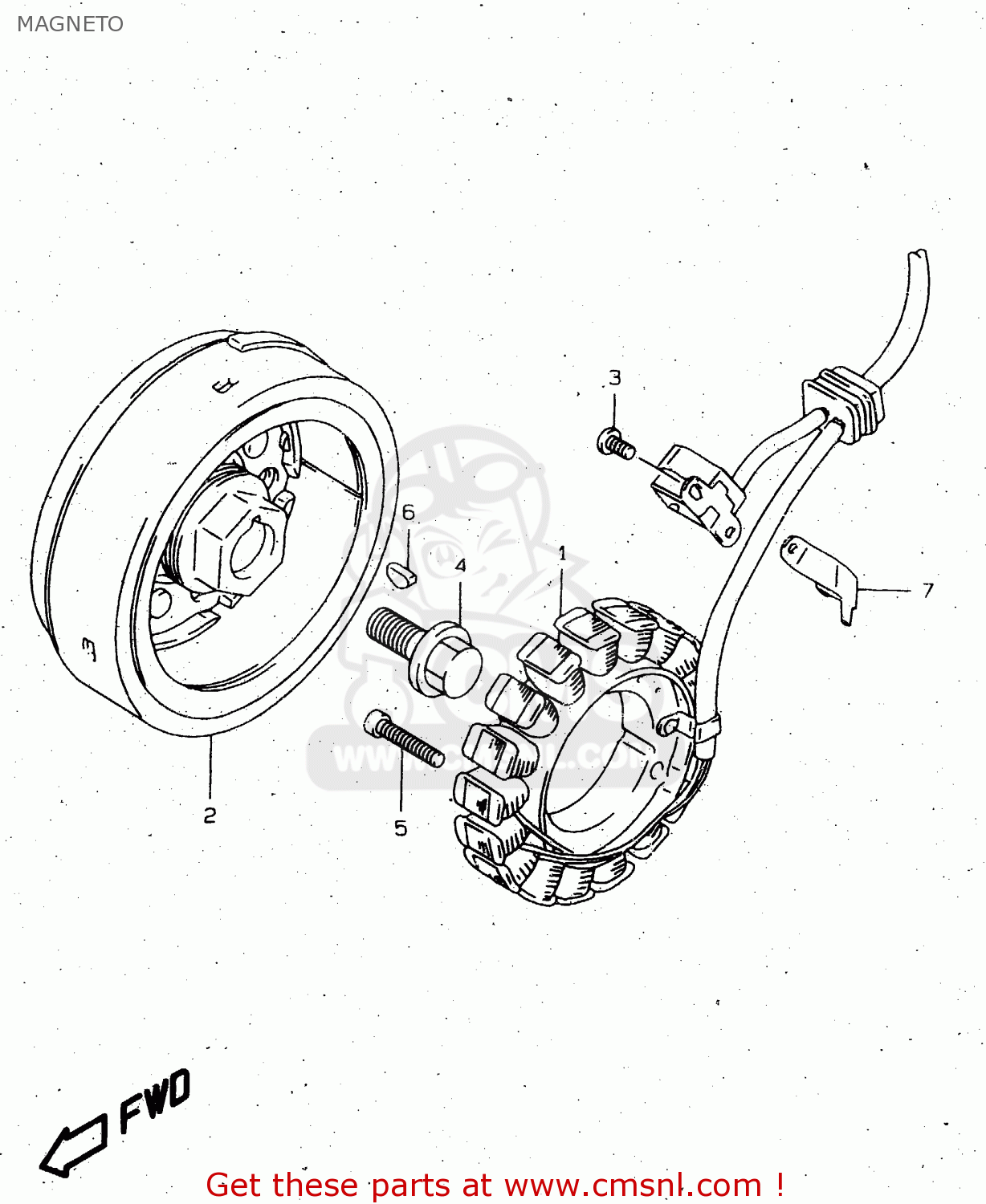

Magneto diagram DR650SE 1997 (V) (E02 E04 E17 E18 E22 E24 E34)

MAGNETO DR650SE 1997 (V) (E02 E04 E17 E18 E22 E24 E34)

MAGNETO DR650SE 1997 (V) (E02 E04 E17 E18 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

1

3210132E00
ref: 1

STARTER ASSY

€ 703.00

2

3210232E00
ref: 2

ROTOR ASSY

€ 599.00

3

0211205103
ref: 3

SCREW

€ 2.00

4

0910314001
ref: 4

BOLT(14X43)

€ 7.00

5

0713006303
ref: 5

BOLT

€ 3.00

6

0942005007
ref: 6

KEY

€ 3.00

7

3237132E00
ref: 7

CLAMP,MAGNETO LEAD

€ 4.00
