ELECTRICAL

DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37

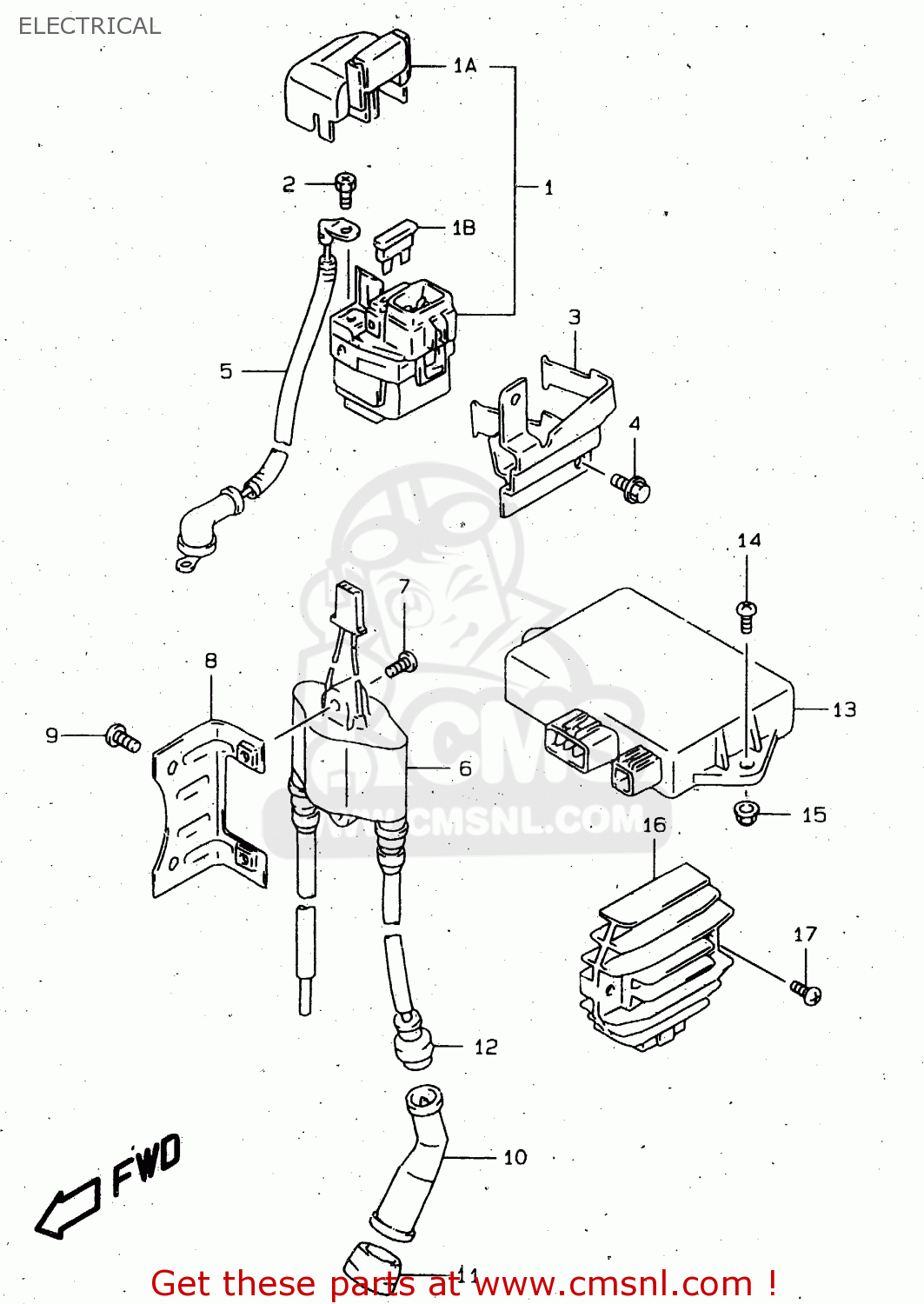

Electrical diagram DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37

prices are in EUR

ref

part #

description

quantity

3180026E00
ref: 1

RELAY ASSY,STARTING MOTOR

€ 77.50

3186126E00
ref: 1A

COVER,STARTER RELAY

€ 3.50

0948130101
ref: 1B

FUSE(30A)

€ 6.00

0912806013
ref: 2

SCREW(6X8)

€ 1.50

3189032E00
ref: 3

BRACKET,STARTING MOTOR RELAY

€ 12.00

0910306078
ref: 4

BOLT(6X8)

€ 2.00

3381032E00
ref: 5

WIRE,STARTER MOTOR

€ 17.50

3341032E00
ref: 6

COIL ASSY,IGNITION

€ 125.00

0214206253
ref: 7

SCREW

€ 1.50

3341632E00
ref: 8

BRACKET,IGNITION COIL

€ 7.00

0214206103
ref: 9

SCREW 6X10

€ 2.00

3351043010
ref: 10

CAP,SPARK PLUG

€ 11.50

3354147D00
ref: 11

SEAL,SPARK PLUG

€ 7.00

3354238B00
ref: 12

SEAL,HIGH TENSION CORD

€ 4.50

3290032E10
ref: 13
MODEL W/X

CDI UNIT

€ 469.00

0214206203
ref: 14

SCREW

€ 2.00

0831931063
ref: 15

NUT

€ 2.50

3280032E00
ref: 16

RECTIFIER ASSY

€ 182.50

0214206203
ref: 17

SCREW

€ 2.00
