REAR CUSHION LEVER

DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37

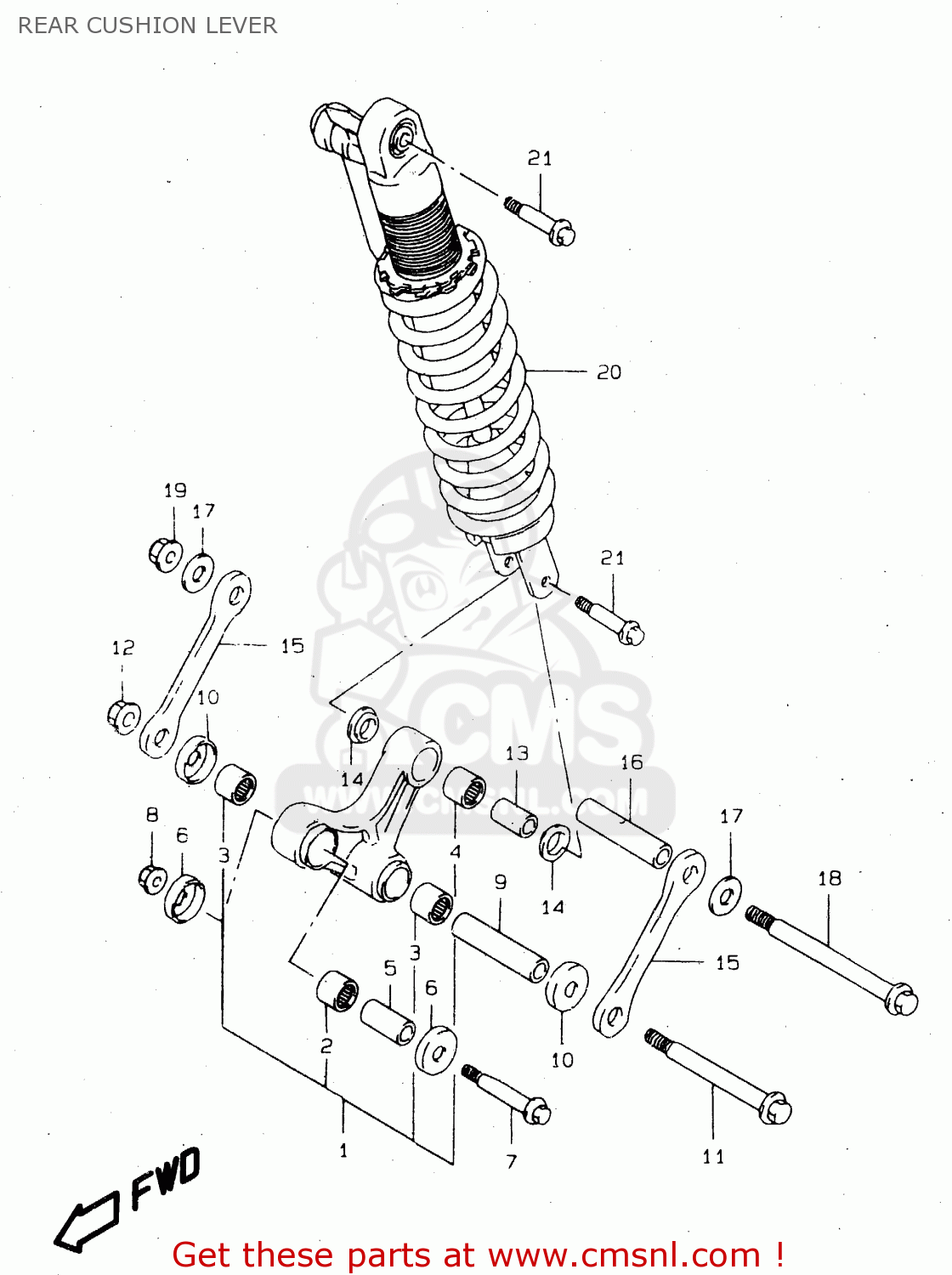

Rear cushion lever diagram DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37

REAR CUSHION LEVER DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37
REAR CUSHION LEVER DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37
REAR CUSHION LEVER DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37
prices are in EUR
ref
part #
description
quantity
1
6260032840
ref: 1
LEVER SET,RR CUSHION
€ 237.00
2
0926320073
ref: 2
BEARING(20X27X30)
0926320073
€ 24.50
3
0926321012
ref: 3
BEARING(21X27X20)
0926321012
€ 16.50
4
0926317027
ref: 4
BEARING(17X24X20)
0926317027
€ 13.50
5
6231727C10
ref: 5
SPACER,RR CUSHION LEVER FR
6231727C10
€ 9.00
6
6216228E00
ref: 6
SEAL,RR CUSHION LEVER FR DUST
6216228E00
€ 6.50
7
6265801C60
ref: 7
BOLT,RR CUSHION LEVER FR
6265801C60
€ 6.00
8
0831931128
ref: 8
NUT 12MM
0831931128
€ 4.00
9
6262613E00
ref: 9
SPACER,RR CUSHION LEVER CTR
6262613E00
€ 16.50
10
6268213E00
ref: 10
SEAL,RR CUSHION LEVER CTR
6268213E00
€ 10.00
11
6262127C20
ref: 11
BOLT,RR CUSHION LEVER CTR
6262127C20
€ 18.00
12
0831931148
ref: 12
NUT
0831931148
€ 9.00
13
6268440A10
ref: 13
SPACER,RR CUSHION LEVER
6268440A10
€ 11.50
14
6262413E00
ref: 14
SEAL,RR CUSHION LEVER RR DUST
6262413E00
€ 8.50
15
6264132E00
ref: 15
ROD,RR CUSHION LEVER
6264132E00
€ 66.50
16
6262614D00
ref: 16
SPACER,RR CUSHION LEVER CTR
6262614D00
€ 20.00
17
0821114321
ref: 17
WASHER
0821114321
€ 4.00
18
6262117C00
ref: 18
SHAFT,RR CUSHION LEVER FR
6262117C00
€ 9.50
19
0831931148
ref: 19
NUT
0831931148
€ 9.00
20
6210032E00163
ref: 20
ABSORBER ASSEMBLY,REAR SHOCK
€ 787.50
21
6264814500
ref: 21
BOLT,RR CUSHION ROD UPR
6264814500
€ 3.00
