OIL PIPE

DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37

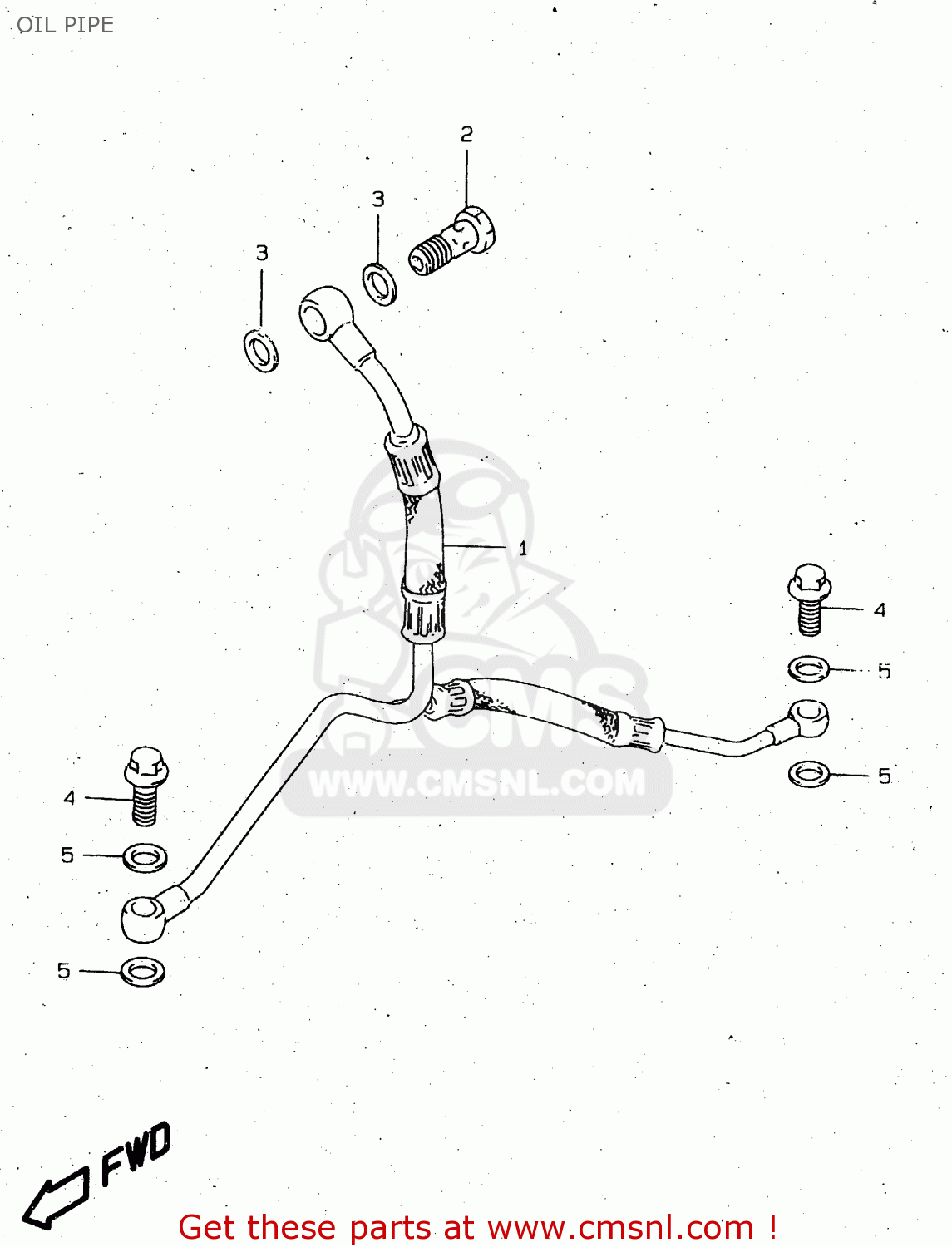

Oil pipe diagram DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37

OIL PIPE DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37

OIL PIPE DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37

prices are in EUR

ref

part #

description

quantity

1

1648032E00
ref: 1
MODEL T/V

PIPE,T/M & CSHAFT OIL

€ 157.50

1

1648032E10
ref: 1
MODEL W/X

PIPE,T/M & CSHAFT OIL

€ 117.50

2

0936012010
ref: 2

BOLT UNION

€ 7.50

3

0916812017
ref: 3

GASKET(12X17X1) (NAS)

€ 2.00

4

0936010032
ref: 4

BOLT UNION

€ 3.00

5

0916810007
ref: 5

GASKET(10.1X16X1) (NAS)

€ 2.00
