MUFFLER

DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37

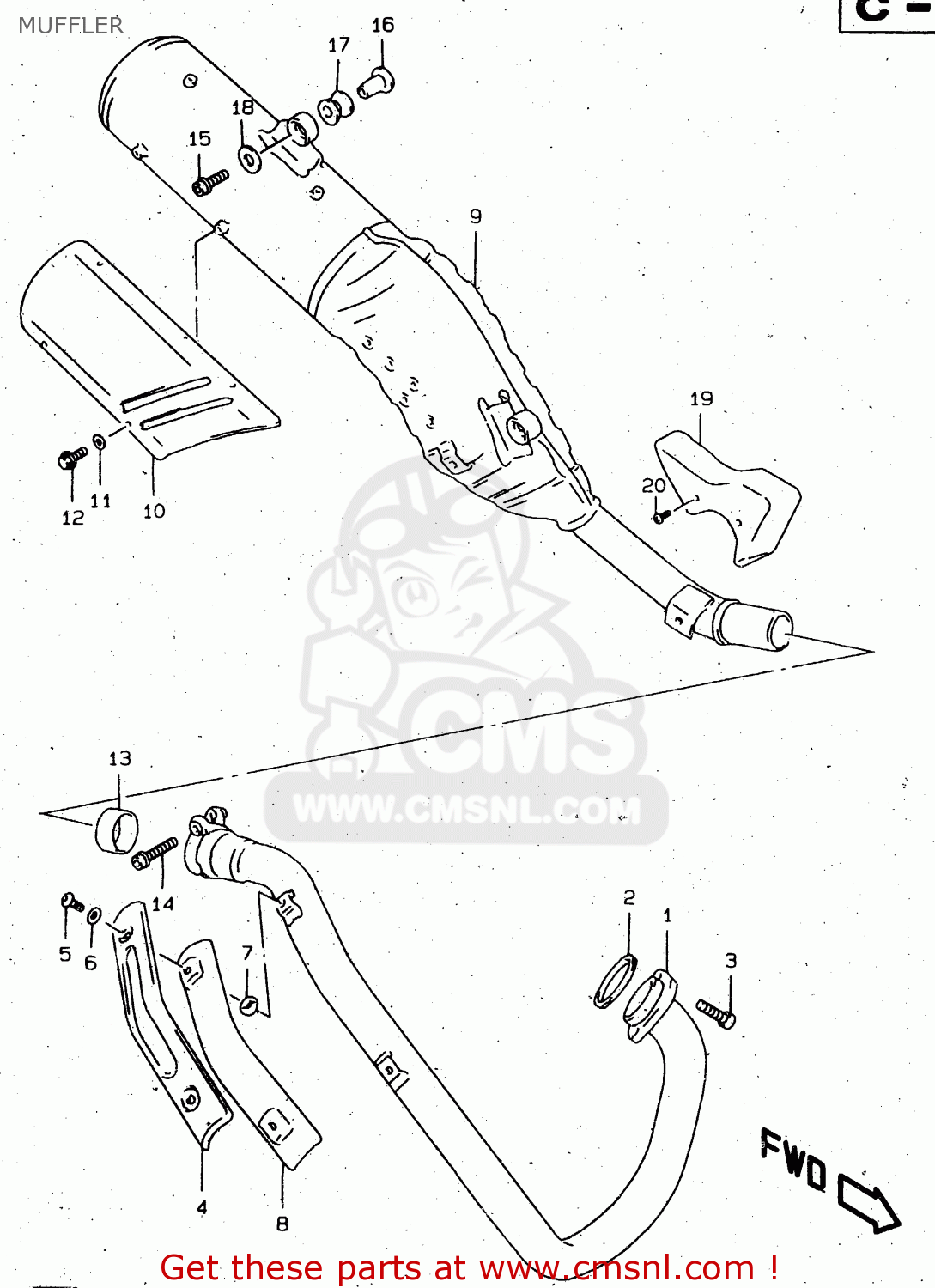

Muffler diagram DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37

MUFFLER DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37
MUFFLER DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37
MUFFLER DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37
prices are in EUR
ref
part #
description
quantity
1
1415032E00
ref: 1
PIPE COMP,EXHAUST
€ 214.50
2
1418122D01
ref: 2
GASKET,EXHAUST PIPE (NAS)
1418122D01
€ 9.00
3
0713008253
ref: 3
BOLT
0713008253
€ 3.50
4
1418032E00
ref: 4
COVER,EXHAUST PIPE
1418032E00
€ 27.50
5
0913906091
ref: 5
SCREW(6X12)
0913906091
€ 4.00
6
0916006082
ref: 6
WASHER(6.5X13X1.0)
0916006082
€ 1.50
7
0916806122
ref: 7
GASKET(6X16X1.4) (NAS)
0916806122
€ 2.50
8
1418632E00
ref: 8
COVER,EXHAUST PIPE INNER
1418632E00
€ 10.50
9
1431032E00
ref: 9
MODEL T/V
BODY, MUFFLER
€ 459.50
9
1431032E20
ref: 9
MODEL W/X
BODY, MUFFLER
€ 459.50
10
1478132E00
ref: 10
COVER,MUFFLER
1478132E00
€ 45.50
11
0916006082
ref: 11
WASHER(6.5X13X1.0)
0916006082
€ 1.50
12
0913906078
ref: 12
SCREW(6X10)
0913906078
€ 3.00
13
1477132E00
ref: 13
CONNECTOR,MUFFLER
1477132E00
€ 12.50
14
0712008403
ref: 14
BOLT
€ 3.50
15
0910608131
ref: 15
BOLT(8X30)
0910608131
€ 3.50
16
0918008151
ref: 16
SPACER(8.6X12X17.5)
0918008151
€ 6.00
17
0932012043
ref: 17
CUSHION
0932012043
€ 8.00
18
0916008057
ref: 18
MODEL T/V
WASHER (8.5X20X1.6)
0916008057
€ 2.00
18
0916008135
ref: 18
MODEL W/X
WASHER(8.5X28X1.6)
0916008135
€ 2.00
19
1478232E00
ref: 19
COVER,CONNECTOR CLAMP
€ 21.00
20
0913906078
ref: 20
SCREW(6X10)
0913906078
€ 3.00
