OIL PUMP

DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37

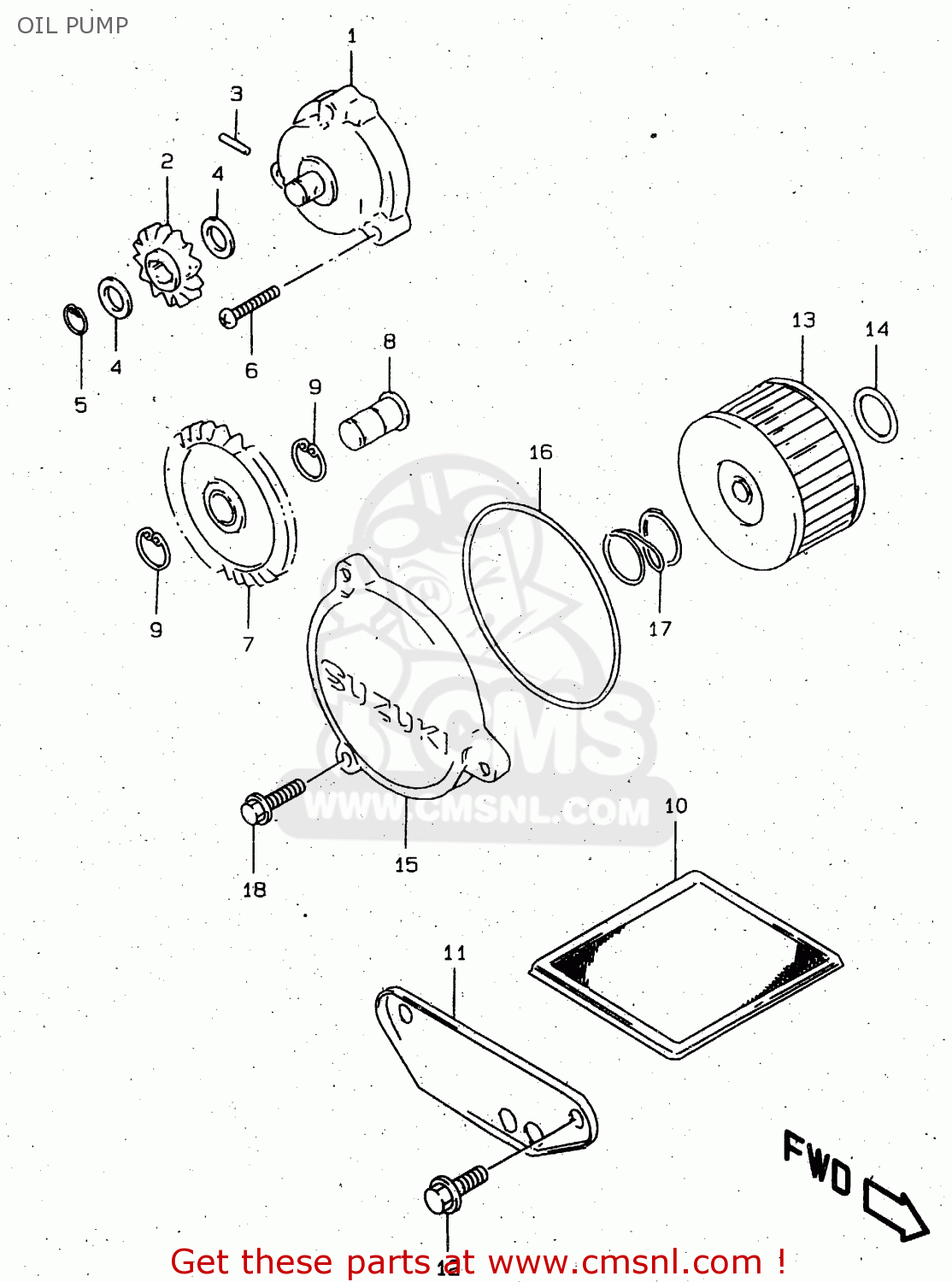

Oil pump diagram DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37

OIL PUMP DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37
OIL PUMP DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37
OIL PUMP DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37
prices are in EUR
ref
part #
description
quantity
1
1640032E00
ref: 1
PUMP ASSY,ENGINE OIL
1640032E00
€ 127.00
2
1633144B00
ref: 2
MODEL T/V
GEAR,OIL PUMP DRIVEN(NT:15)
1633144B00
€ 32.50
2
1633132E00
ref: 2
MODEL W/X
GEAR,ENG OIL PUMP DRIVEN
€ 22.00
3
0926104009
ref: 3
PIN(4X15.8)
0926104009
€ 1.50
4
0822110185
ref: 4
MODEL T/V
SHIM
0822110185
€ 2.00
4
0918110186
ref: 4
MODEL W/X
SHIM(10X20X0.5)
0918110186
€ 2.00
5
0833131106
ref: 5
CIRCLIP,10MM
0833131106
€ 2.00
6
0211206253
ref: 6
SCREW
0211206253
€ 1.50
7
1632132E00
ref: 7
GEAR,OIL PUMP DRIVE(NT:30)
1632132E00
€ 18.50
8
1632232E00
ref: 8
SHAFT,ENGINE OIL PUMP DRIVE
€ 8.50
9
0833131126
ref: 9
CIRCLIP,12 MM
0833131126
€ 2.00
10
1652032E00
ref: 10
STRAINER,ENGINE OIL
1652032E00
€ 11.50
11
1652332E00
ref: 11
CAP,OIL STRAINER
1652332E00
€ 7.50
12
0910306083
ref: 12
BOLT 6X12
0910306083
€ 2.50
13
1651037440
ref: 13
MODEL T/V
FILTER,ENGINE OIL
1651037440
€ 7.50
13
1651037450
ref: 13
MODEL W/X
FILTER ASSY,ENGINE OIL
1651037450
€ 7.50
14
0928015007
ref: 14
O RING(D:2.4,ID:15.8)
0928015007
€ 2.00
15
1651214D00
ref: 15
CAP,OIL FILTER
1651214D00
€ 23.50
16
0928072001
ref: 16
O RING(D:2.4,ID:73)
0928072001
€ 5.00
17
0944021006
ref: 17
SPRING
0944021006
€ 2.50
18
0154706167
ref: 18
BOLT
0154706167
€ 2.00
