REAR FENDER

DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37

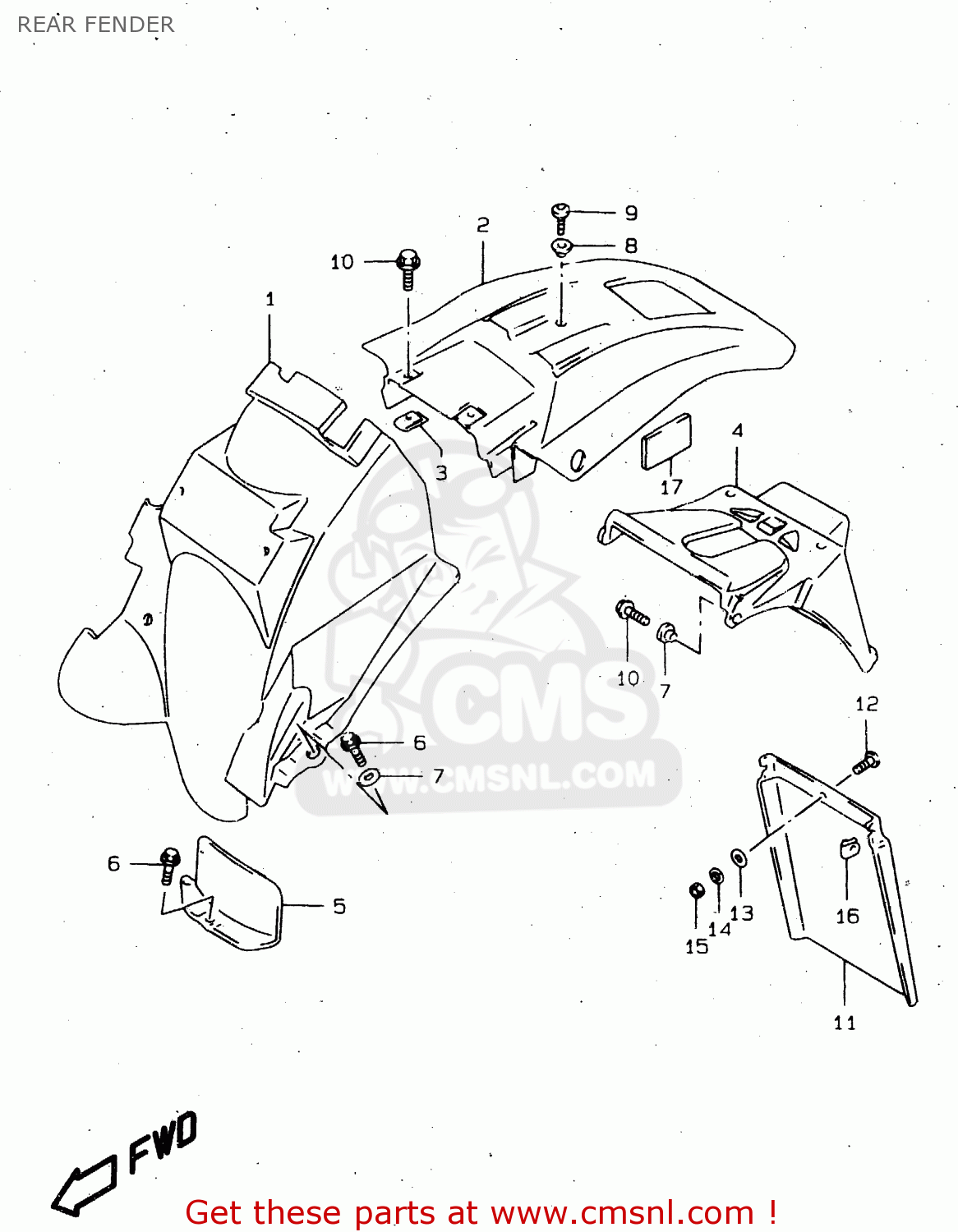

Rear fender diagram DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37

REAR FENDER DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37
REAR FENDER DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37
REAR FENDER DR650SE 1998 (W) (E02 E04 E17 E18 E22 E24 E34) P37
prices are in EUR
ref
part #
description
quantity
1
6311232E00
ref: 1
BODY,RR FENDER FR
6311232E00
€ 29.50
2
6311332E0030H
ref: 2
FOR E3D, L9W
BODY, REAR FENDER REAR (WHITE)
€ 54.00
2
6311332E00019
ref: 2
FOR 019
BODY, REAR FENDER REAR (BLACK)
€ 59.00
3
4715319C01
ref: 3
PLATE,FRAME COVER
4715319C01
€ 4.00
4
6331132E00
ref: 4
EXTENSION,RR FENDER
6331132E00
€ 31.50
4
6331132E10
ref: 4
E18
EXTENSION,RR FENDER
€ 46.00
4
6331132E20
ref: 4
E17, E22
EXTENSION,RR FENDER
€ 0.00
5
6341132E00
ref: 5
MUDGUARD,RR FENDER
6341132E00
€ 8.00
6
0911106066
ref: 6
BOLT(6X16)
0911106066
€ 2.50
7
0916906073
ref: 7
WASHER
0916906073
€ 4.00
8
0916906054
ref: 8
WASHER
0916906054
€ 2.00
9
0913906088
ref: 9
MODEL T
SCREW(6X16)
0913906088
€ 4.00
9
0913906067
ref: 9
MODEL V/W/X
SCREW(6X16)
0913906067
€ 3.00
10
0155006163
ref: 10
BOLT
0155006163
€ 2.50
11
6333103D00
ref: 11
E18
MUDGUARD,RR FENDER RR
6333103D00
€ 15.50
11
6333103D30
ref: 11
E17, E18, E22
MUDGUARD,RR FENDER RR
€ 27.50
12
0214205163
ref: 12
E17, E18, E22
SCREW
0214205163
€ 2.50
13
0916005037
ref: 13
E17, E18, E22
WASHER(5.5X16X1.2)
0916005037
€ 1.50
14
0832101053
ref: 14
E17, E18, E22
LOCK,WASHER
€ 3.00
15
0914005006
ref: 15
E17, E18, E22
NUT
0914005006
€ 2.00
16
0914805021
ref: 16
E17, E18, E22
NUT
0914805021
€ 1.50
17
6319125C00
ref: 17
CUSHION
6319125C00
€ 2.50
