BATTERY

DR650SE 2000 (Y)

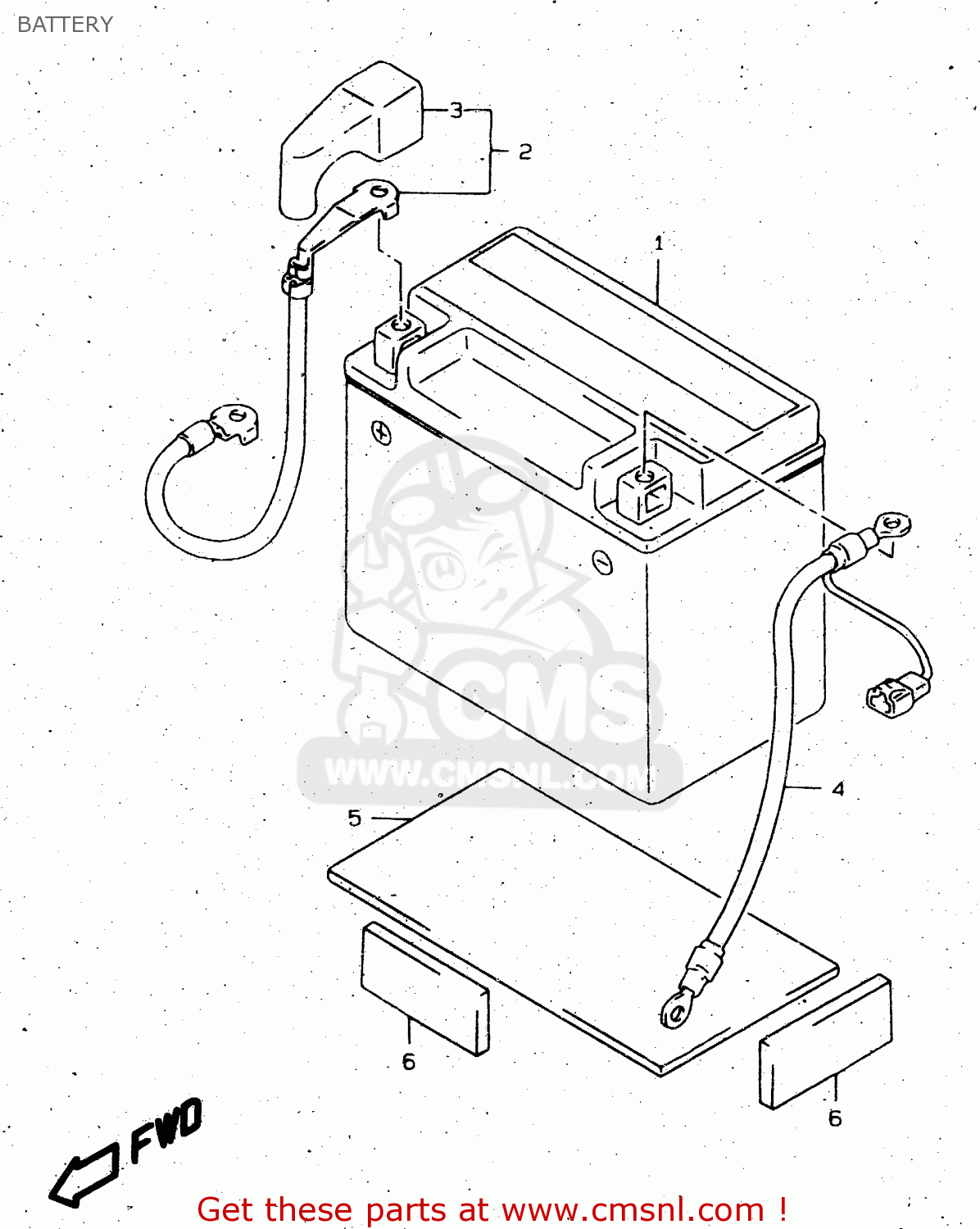

Battery diagram DR650SE 2000 (Y)

BATTERY DR650SE 2000 (Y)

BATTERY DR650SE 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1

3361032C10
ref: 1

BATTERY ASSY(YTX9-BS,12V8AH)

€ 108.50

2

3382032E00
ref: 2

WIRE,BATTERY PLUS

€ 15.00

3

3362432E00
ref: 3

CAP,BATTERY PLUS TERMINAL

€ 4.50

4

3386032E00
ref: 4

WIRE,BATTERY MINUS

€ 12.50

5

3365137000
ref: 5
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

6

3365228000
ref: 6

CUSHION 20X45X6

€ 6.00
