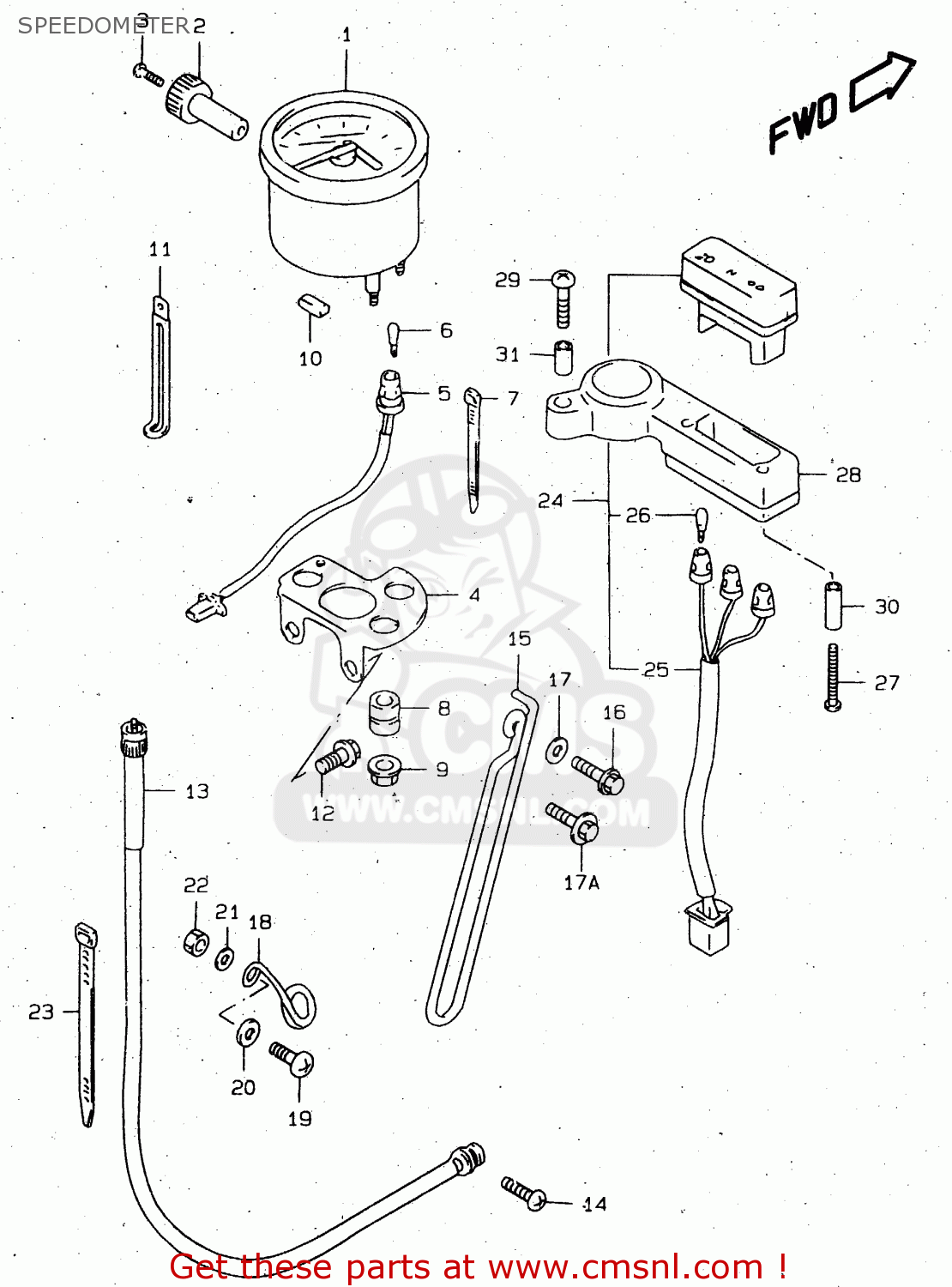

SPEEDOMETER

ref

part #

description

quantity

1

3412032E02
ref: 1
<-34120-32E00

SPEEDOMETER

€ 343.50

1

3412032E12
ref: 1
E4, E17, E18, E22, E

SPEEDOMETER

€ 354.00

2

3412444B30
ref: 2

KNOB,TRIP

€ 7.00

3

3418412D00
ref: 3

SCREW,TRIP KNOB

€ 2.00

4

3495032E10
ref: 4

BRACKET,METER

€ 22.00

5

3417015D20
ref: 5

SOCKET,METER

€ 15.00

6

0947112085
ref: 6

BULB(12V3W,WB371,T7)

€ 3.00

7

3495442A90
ref: 7

CLAMP

€ 3.50

8

3418930921
ref: 8

CUSHION

€ 3.00

9

0915906076
ref: 9

NUT

€ 3.00

10

3416103D00
ref: 10

CUSHION

€ 2.00

11

0940410417
ref: 11

CLAMP(L:97)

€ 2.50

12

0155006123
ref: 12

BOLT

€ 2.50

13

3491032E00
ref: 13

CABLE ASSY,SPEEDOMETER

€ 29.00

14

0211205163
ref: 14

SCREW

€ 2.00

15

3493814D30
ref: 15

GUIDE,METER CABLE NO.2

€ 8.00

16

0214206203
ref: 16
MODEL T/V/W

SCREW

€ 2.00

17

0916006066
ref: 17
MODEL T/V/W

WASHER(6.5X20X1.6)

€ 2.00

17A

0911606167
ref: 17A
MODEL X

BOLT(6X20)

€ 2.00

18

3493814D21
ref: 18
<-34938-14D20

GUIDE,SPEEDOMETER CABLE

€ 6.50

19

0214206163
ref: 19

SCREW

€ 2.50

20

0916006057
ref: 20
MODEL T/V

WASHER

€ 2.00

20

0916006109
ref: 20
MODEL W/X

WASHER(6.5X18X1.6)

€ 2.00

21

0916906054
ref: 21

WASHER

€ 2.00

22

0831000063
ref: 22

NUT 6MM

€ 2.00

23

0940714403
ref: 23
<-09407-11401

CLAMP(L:125)

€ 2.50

24

3638032E10
ref: 24

BOX ASSY,PILOT LAMP

€ 80.00

25

3639432E00
ref: 25

SOCKET & CORD

€ 26.50

26

0947112118
ref: 26

BULB(13.5V,2W,A7427)

€ 2.00

27

0351114353
ref: 27

SCREW

€ 2.00

28

3638232E00
ref: 28

HOLDER,PILOT BOX

€ 12.00

29

0913906029
ref: 29

SCREW(6X25)

€ 5.00

30

0918004024
ref: 30
<-09180-04016

SPACER(4.5X6.5X25)

€ 3.50

31

0918006251
ref: 31
<-09180-06040

SPACER(6.1X8X15.5)

€ 2.00

all assemblies
