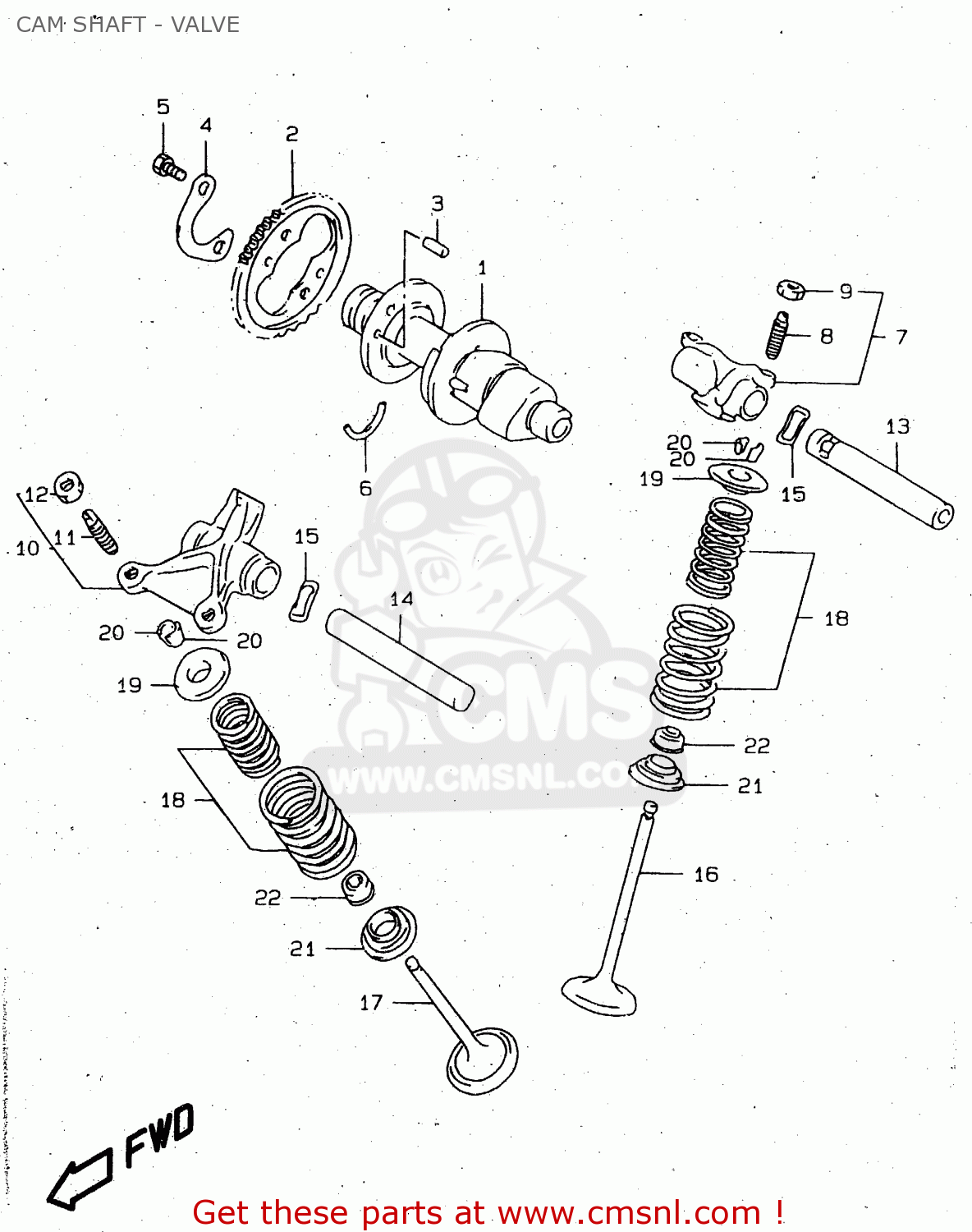

CAM SHAFT - VALVE - DR650SE 2000 (Y)

ref

part #

description

quantity

1

1271032E00
ref: 1
~F.NO.JS1SP46A000503

CAMSHAFT COMP

€ 338.50

1

1271032E01
ref: 1
F.NO.JS1SP46A0005036

CAMSHAFT

€ 338.50

2

1274132E00
ref: 2

SPROCKET,CAMSHAFT(NT:38)

€ 31.50

3

0926105005
ref: 3

PIN(5X8)

€ 1.50

4

1274744B00
ref: 4

WASHER,SPROCKET

€ 2.00

5

0911106032
ref: 5

BOLT(6X10.5)

€ 2.00

6

0939022002
ref: 6

C RING

€ 2.00

7

1284032E00
ref: 7

ARM,VALVE ROCKER INTAKE

€ 64.50

8

1284238A00
ref: 8

SCREW,TAPPET ADJUSTING

€ 4.00

9

1284332400
ref: 9

NUT,ADJUSTING SCREW

€ 2.50

10

1285032E00
ref: 10

ARM,VALVE ROCKER EXHAUST

€ 64.50

11

1284238A00
ref: 11

SCREW,TAPPET ADJUSTING

€ 4.00

12

1284332400
ref: 12

NUT,ADJUSTING SCREW

€ 2.50

13

1286114D50
ref: 13

SHAFT,VALVE ROCKER ARM INTAKE

€ 20.00

14

1287114D50
ref: 14

SHAFT,VALVE ROCKER ARM EXHAUST

€ 18.00

15

0916412018
ref: 15

WASHER

€ 1.50

16

1291119B00
ref: 16

VALVE,INTAKE

€ 25.50

17

1291242A00
ref: 17

VALVE,EXHAUST

€ 39.00

18

1292032E00
ref: 18

SPRING SET,VALVE

€ 10.50

19

1293133200
ref: 19

RETAINER,VALVE SPRING

€ 5.50

20

1293224400
ref: 20

COTTER,VALVE

€ 2.00

21

1293381400
ref: 21

SEAT,VALVE SPRING

€ 4.00

22

0928905015
ref: 22

SEAL,OIL(5.5X11X8.2)

€ 6.50

CAM SHAFT - VALVE
