FRONT CALIPER

DR650SE 2000 (Y)

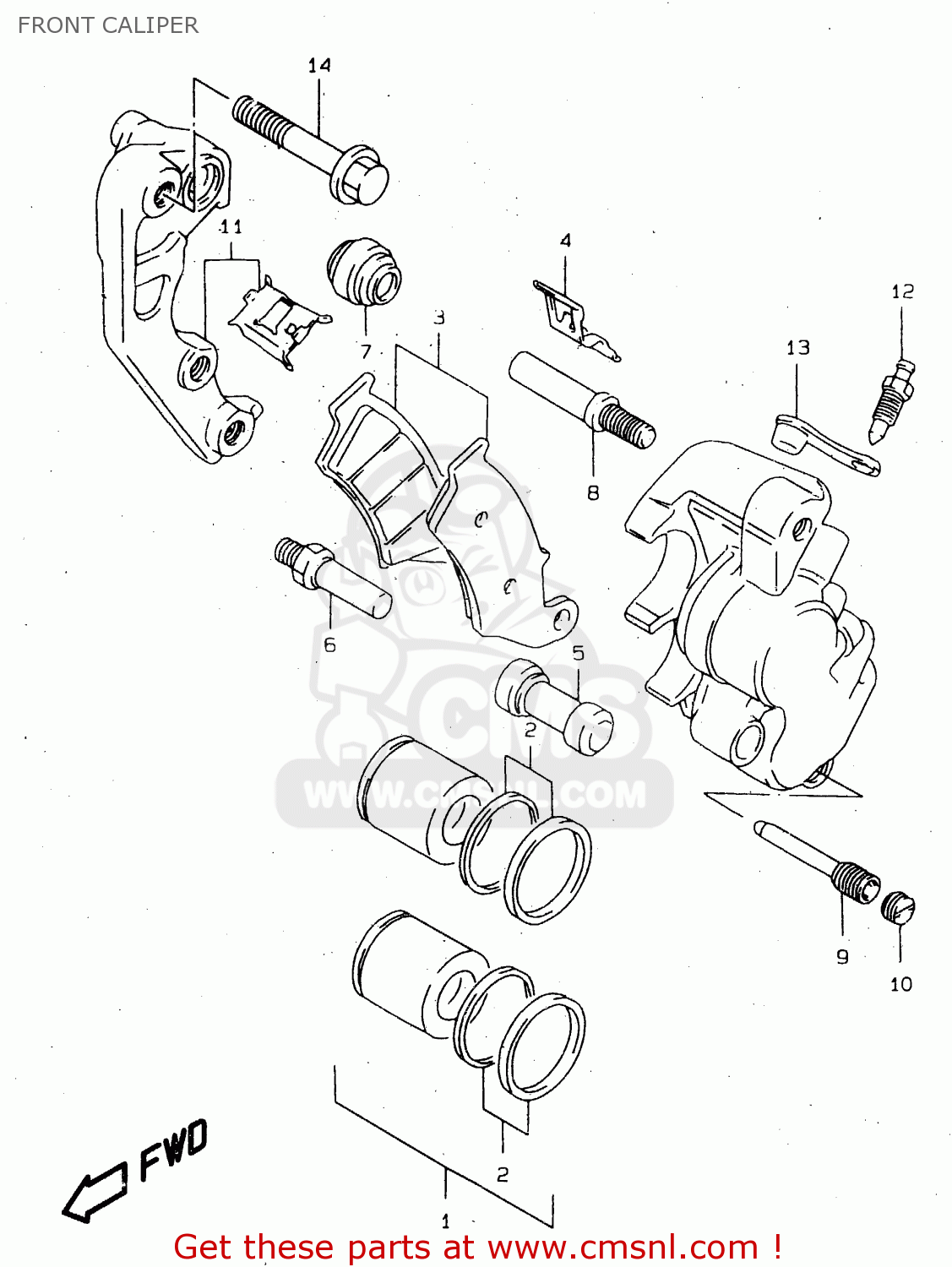

Front caliper diagram DR650SE 2000 (Y)

FRONT CALIPER DR650SE 2000 (Y)

FRONT CALIPER DR650SE 2000 (Y)

prices are in EUR

ref

part #

description

quantity

0

5930013E00
ref: 0

CALIPER ASSEMBLY,FRONT,LEFT

€ 392.00

1

5930027840
ref: 1

PISTON SET

€ 44.00

2

5930013820
ref: 2

SEAL SET,PISTON

€ 34.50

3

5930013830
ref: 3

PAD SET (NAS)

€ 42.00

4

5931513E00
ref: 4

SPRING,PAD

€ 12.00

5

5938613A00
ref: 5

BOOT

€ 6.50

6

5938227C30
ref: 6

BOLT

€ 7.50

7

5930314500
ref: 7

BOOT

€ 5.50

8

5930527C00
ref: 8

PIN

€ 13.50

9

5934513E00
ref: 9

PIN,HANGER

€ 13.50

10

5914621E10
ref: 10

PLUG,PIN

€ 6.50

11

5935013E00
ref: 11

BRACKET

€ 90.50

12

5912101A00
ref: 12

BLEEDER

€ 8.50

13

5912201A00
ref: 13

CAP,BLEEDER

€ 4.50

14

0910308338
ref: 14

BOLT(8X40)

€ 3.50
