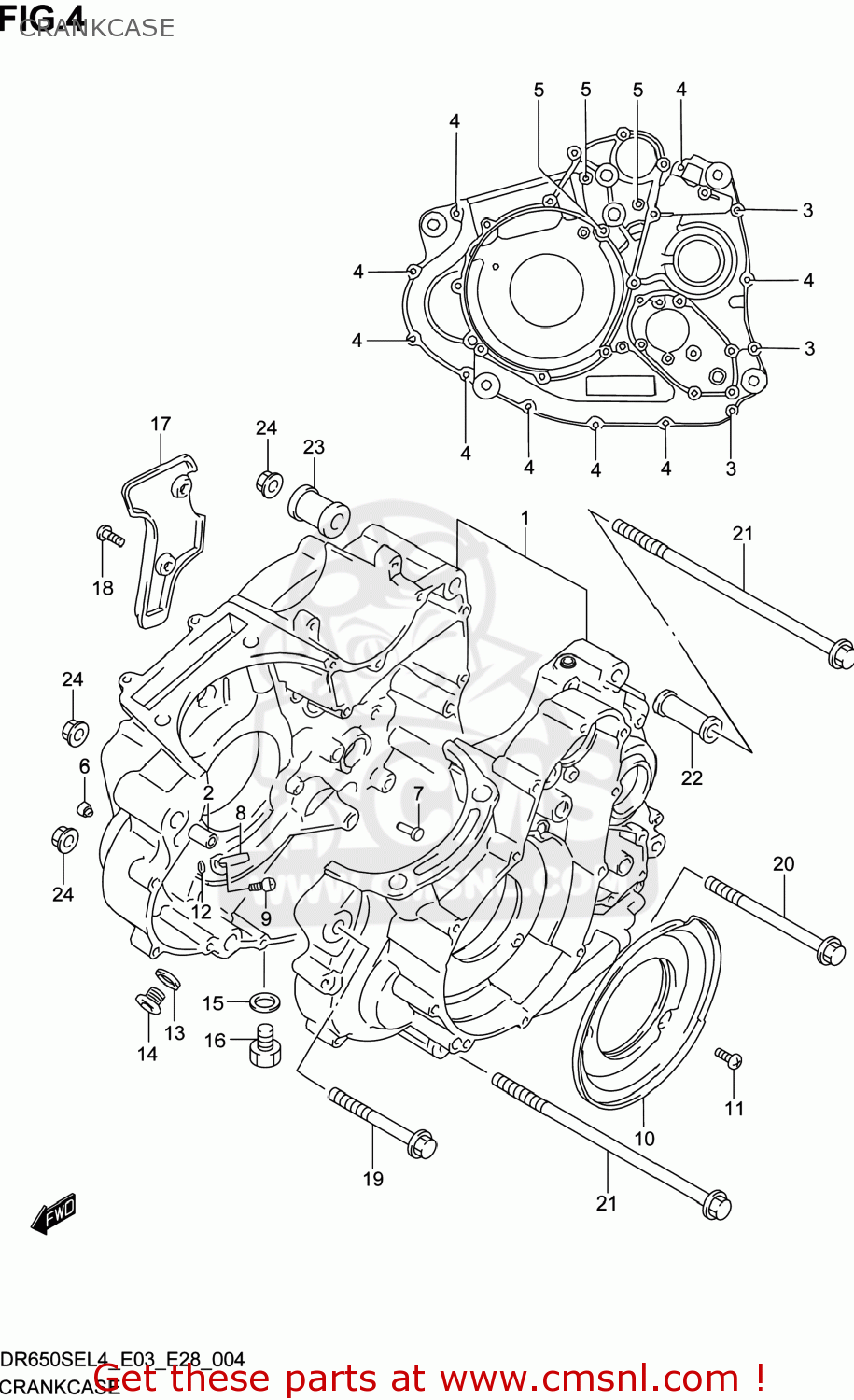

CRANKCASE

ref

part #

description

quantity

1

1130032881
ref: 1

CRANKCASE SET

€ 562.00

2

0920210006
ref: 2

PIN

€ 6.50

3

015470660A
ref: 3

BOLT

€ 2.50

4

015470640A
ref: 4

BOLT

€ 2.50

5

015470680A
ref: 5

BOLT

€ 2.00

6

1118043410
ref: 6

JET,OIL GALLERY

€ 10.50

7

0922304001
ref: 7

RIVET

€ 1.50

8

1139004F00
ref: 8

JET,PISTON COOLING

€ 14.50

9

0910606075
ref: 9

BOLT(6X12)

€ 2.50

10

1132332E00
ref: 10

SEPARATOR,CRANKCASE OIL

€ 8.50

11

021120612A
ref: 11

SCREW

€ 1.50

12

0928004004
ref: 12

O RING(D:1.2,ID:4)

€ 2.00

13

0916814002
ref: 13
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

14

0924814012
ref: 14

PLUG,14X12

€ 5.00

15

0916814002
ref: 15
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

16

0924714026
ref: 16

PLUG(14X12)

€ 3.50

17

1131732E00
ref: 17

COVER,BREATHER

€ 9.00

18

021120612A
ref: 18

SCREW

€ 1.50

19

0910310110
ref: 19

BOLT(10X100)

€ 6.50

20

0910310237
ref: 20

BOLT(10X130)

€ 5.50

21

0910310239
ref: 21

BOLT(10X235)

€ 12.00

22

1161045410
ref: 22

SPACER,ENGINE MOUNT(L:65)

€ 11.50

23

1161020C00
ref: 23

SPACER,ENGINE MOUNT(L27)

€ 10.00

24

0915910115
ref: 24

NUT

€ 4.00
