FRAME COVER

DR650SE 2014 (L4) USA (E03)

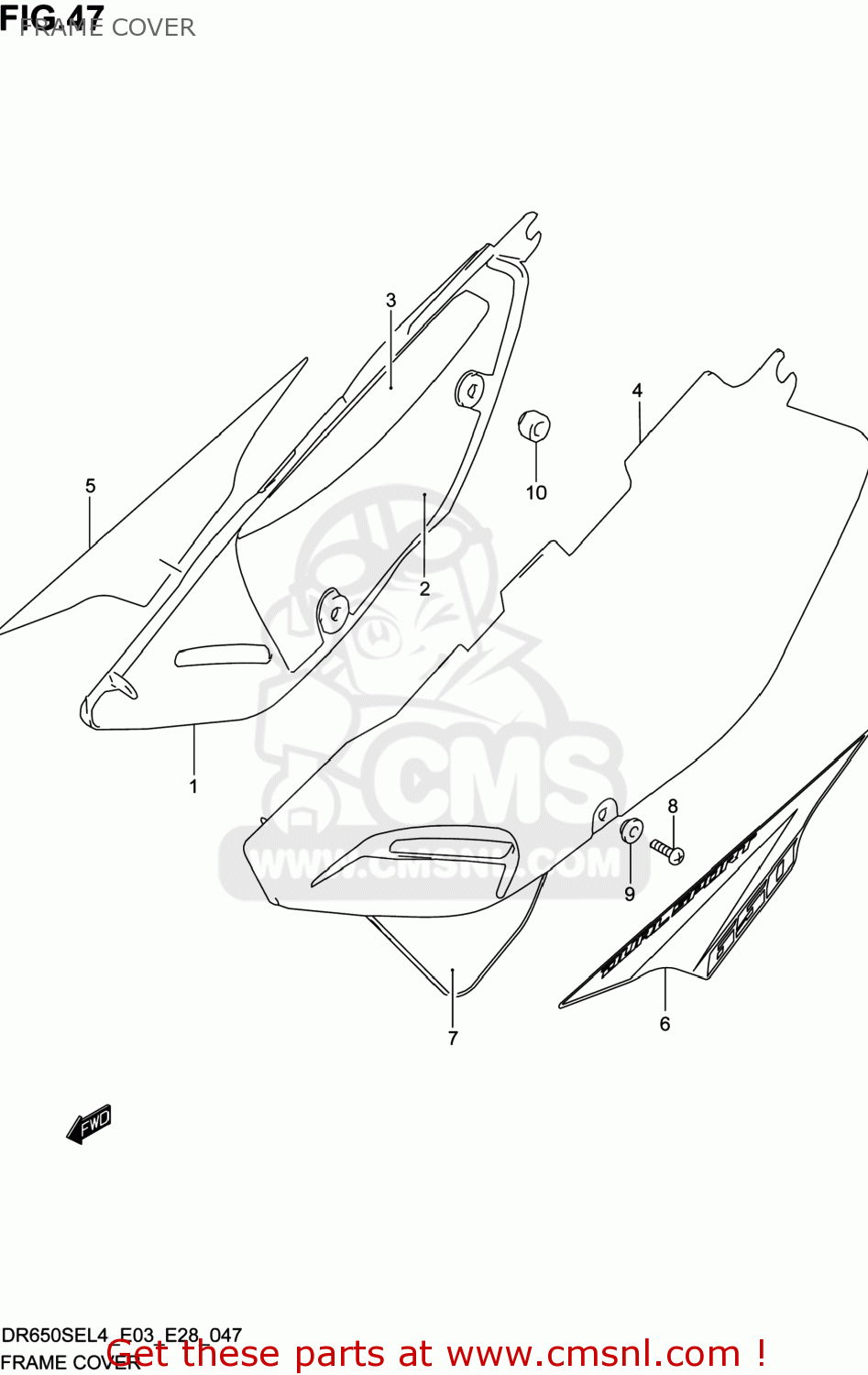

Frame cover diagram DR650SE 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4711132E1030H
ref: 1-1

COVER,FRAME,R(WHITE)

€ 59.50

1-2

4711132E10YUD
ref: 1-2

COVER,FRAME,R(GRAY)

€ 72.50

4716632E00
ref: 2

SHIELD,FRAME COVER,R NO.1

€ 27.00

4716732E00
ref: 3

SHIELD,FRAME COVER,R NO.2

€ 10.50

4-1

4721132E1030H
ref: 4-1

COVER,FRAME,L(WHITE)

€ 61.50

4-2

4721132E10YUD
ref: 4-2

COVER,FRAME,L(GRAY)

€ 72.50

5-1

6813532E50HLW
ref: 5-1

TAPE,FRAME COVER,R

€ 18.50

5-2

6813532E50JJZ
ref: 5-2

TAPE,FRAME COVER,R

€ 20.00

6-1

6814532E50HLW
ref: 6-1

TAPE,FRAME COVER,L

€ 18.50

6-2

6814532E50JJZ
ref: 6-2

TAPE,FRAME COVER,L

€ 20.00

6814632E00
ref: 7

TAPE,LWR

€ 9.00

021420616A
ref: 8

SCREW

€ 2.50

0916906031
ref: 9
09169-06041

WASHER

€ 2.00

0932110019
ref: 10

CUSHION

€ 4.50
