REAR FENDER
DR650SE 2014 (L4) USA (E03)

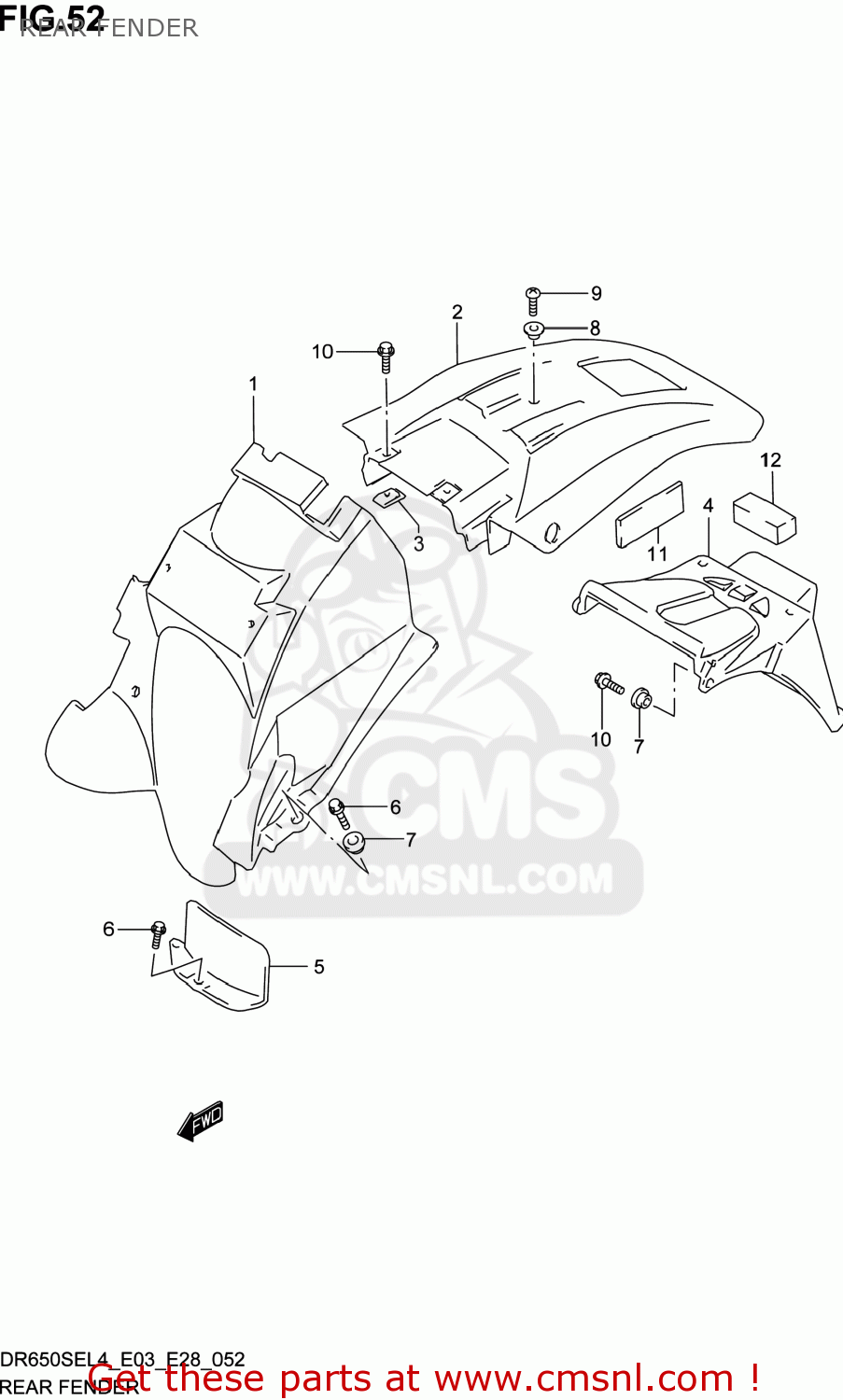

Rear fender diagram DR650SE 2014 (L4) USA (E03)
REAR FENDER DR650SE 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6311232E00
ref: 1
BODY,RR FENDER FR
€ 29.50
2-1
6311332E3030H
ref: 2-1
BODY,RR FENDER RR
€ 73.00
2-2
6311332E30YUD
ref: 2-2
BODY,RR FENDER
€ 60.00
3
4715319C01
ref: 3
PLATE,FRAME COVER
€ 4.00
4
6331132E00
ref: 4
EXTENSION,RR FENDER
€ 31.50
5
6341132E00
ref: 5
MUDGUARD,RR FENDER
€ 8.00
6
0911306001
ref: 6
BOLT(6X16)
€ 3.00
7
0916906073
ref: 7
WASHER
€ 4.00
8
0916906053
ref: 8
WASHER
€ 2.00
9
0913906067
ref: 9
SCREW(6X16)
€ 3.00
10
015500616B
ref: 10
BOLT
€ 2.50
11
6311832E00
ref: 11
CUSHION,RR FENDER
€ 6.00
12
9447521E00
ref: 12
CUSHION
€ 5.50
