FRONT WHEEL

DR650SE 2014 (L4) USA (E03)

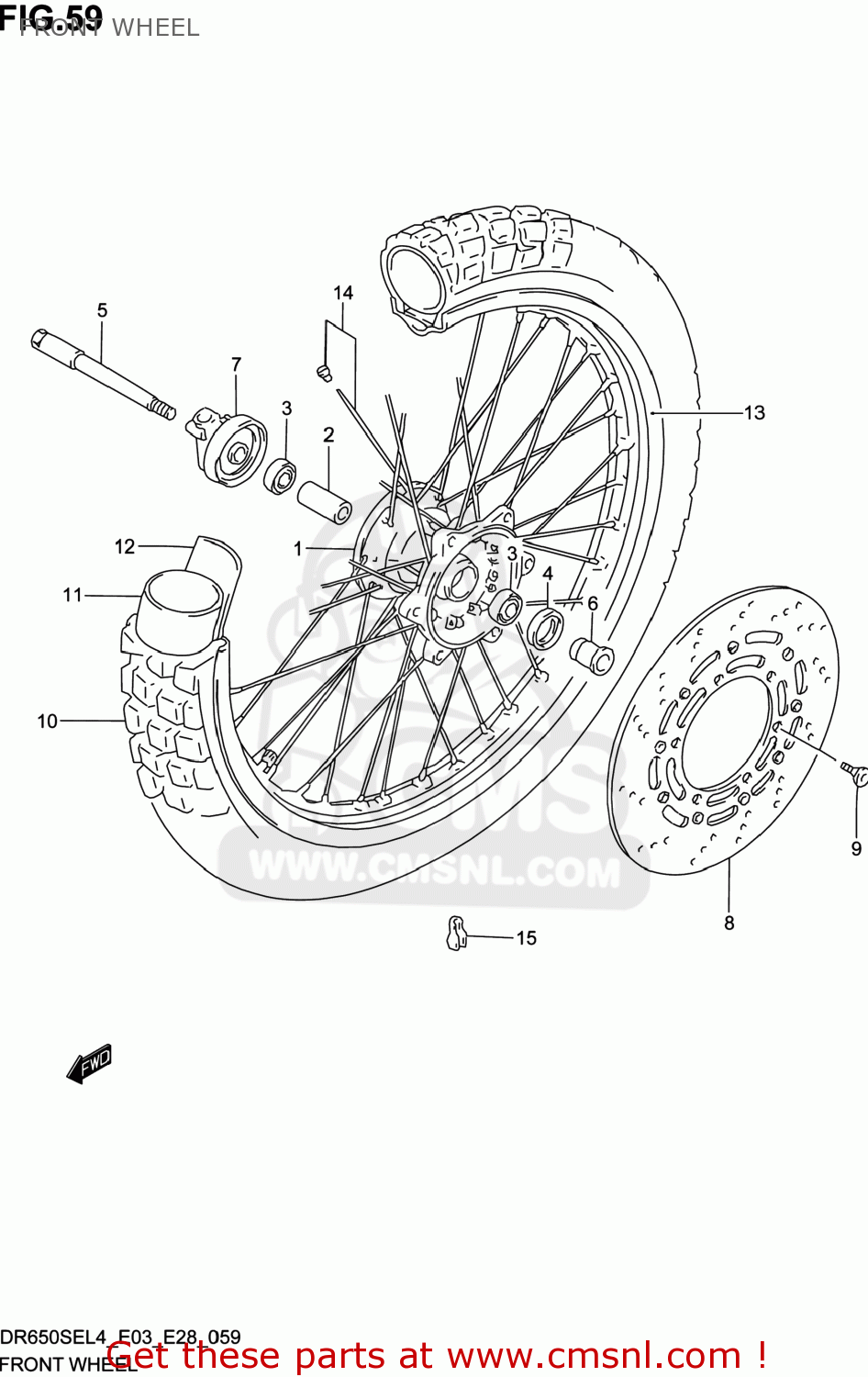

Front wheel diagram DR650SE 2014 (L4) USA (E03)

FRONT WHEEL DR650SE 2014 (L4) USA (E03)

FRONT WHEEL DR650SE 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5411131D01
ref: 1

HUB,FR WHEEL

€ 175.50

2

5473132E00
ref: 2

SPACER,FR HUB BEARING

€ 8.00

3

0812360037
ref: 3

BEARING

€ 16.50

4

0928423001
ref: 4

SEAL,OIL(23X35X6)

€ 5.00

5

5471105D01
ref: 5

AXLE,FR

€ 52.00

6

5475105D00
ref: 6

SPACER,FR AXLE,L

€ 12.50

7

5460005D00
ref: 7

BOX ASSY,SPEEDOMETER GEAR

€ 66.00

8

5922032E00
ref: 8

DISC,FR BRAKE

€ 263.50

9

0910608155
ref: 9

BOLT(8X20)

€ 4.00

10

5511032E00
ref: 10

TIRE,FR(90/90-21 54S)

€ 79.50

10

5511032E00
ref: 10

TIRE,FR(90/90-21 54S)

€ 79.50

11

5520032E01
ref: 11

TUBE ASSY,WHEEL INNER

€ 24.50

12

5526132E01
ref: 12

PROTECTOR,WHL INR TUBE

€ 4.50

13

5531144B00
ref: 13

RIM,FR WHEEL(21X1.85)

€ 336.50

14

5532031D00
ref: 14

SPOKE SET,FR WHEEL

€ 46.50

15-1

5541241F00
ref: 15-1

BALANCER,WHEEL(20G)

€ 6.50

15-2

5541341F00
ref: 15-2

BALANCER,WHEEL(30G)

€ 8.00
