CAM CHAIN

DR800SU 1995 (S) GERMANY (E22)

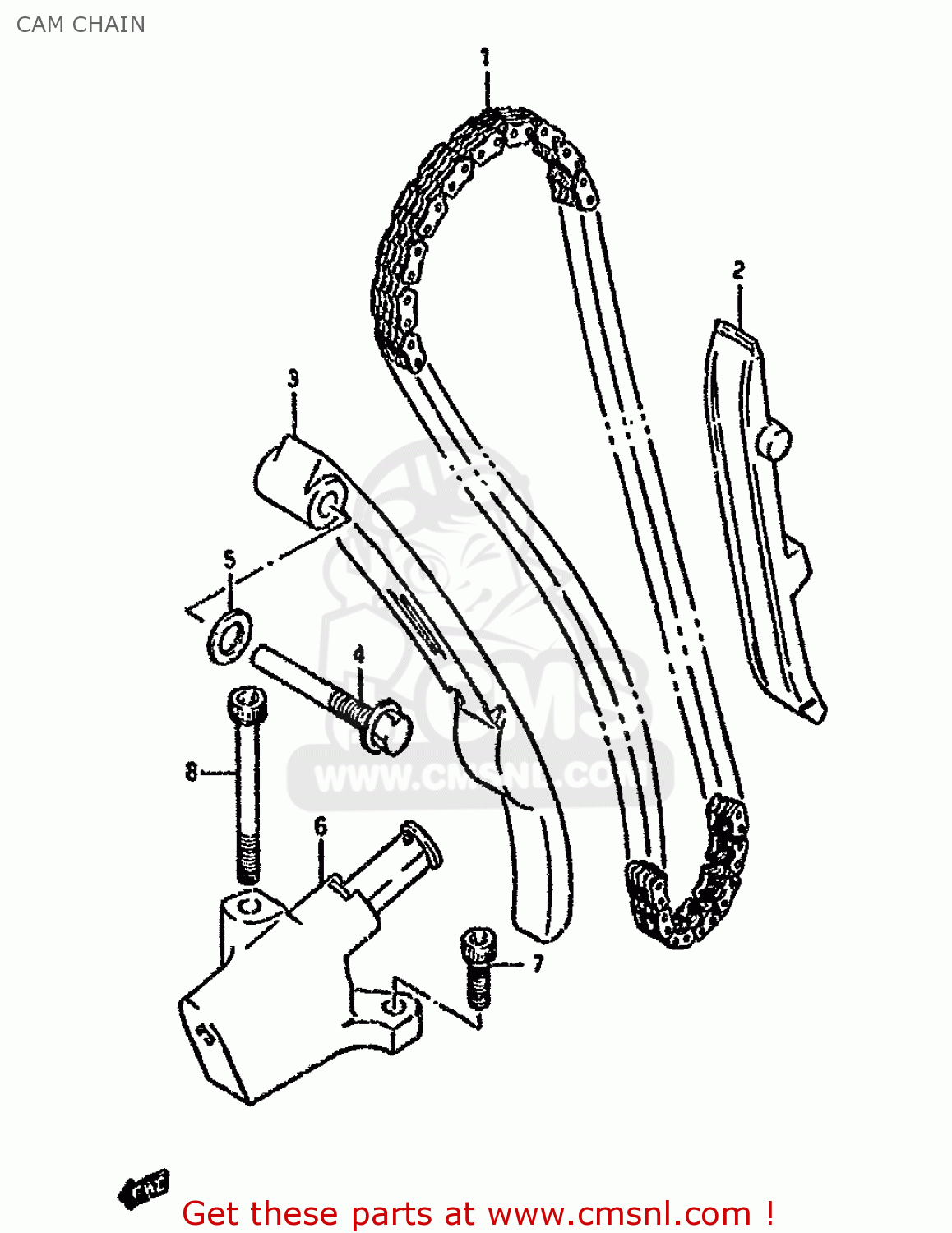

Cam chain diagram DR800SU 1995 (S) GERMANY (E22)

CAM CHAIN DR800SU 1995 (S) GERMANY (E22)
CAM CHAIN DR800SU 1995 (S) GERMANY (E22)
CAM CHAIN DR800SU 1995 (S) GERMANY (E22)
prices are in EUR
ref
part #
description
quantity
1
1276044B00106
ref: 1
106LE
CHAIN,CAMSHAFT DRIVE
1276044B00106
€ 97.50
2
1277144B00
ref: 2
GUIDE,CAM CHAIN
1277144B00
€ 29.50
3
1281144B00
ref: 3
TENSIONER,CAM CHAIN
1281144B00
€ 66.00
4
1281224B00
ref: 4
BOLT,CAM CHAIN TENSIONER
1281224B00
€ 5.50
5
0916808008
ref: 5
GASKET 8.2X14X1 (NAS)
0916808008
€ 1.00
6
1283044B02
ref: 6
ADJUSTER ASSY,TENSIONER
1283044B02
€ 83.50
7-1
0713006205
ref: 7-1
MODEL M/N/P
BOLT
€ 3.00
7-2
0713006203
ref: 7-2
MODEL R/S/T
BOLT,CRKCASE,R
0713006203
€ 3.00
8
0713006553
ref: 8
-09106-06034
BOLT
0713006553
€ 2.50
