CARBURETOR (MODEL P/R/S/T)
DR800SU 1995 (S) GERMANY (E22)

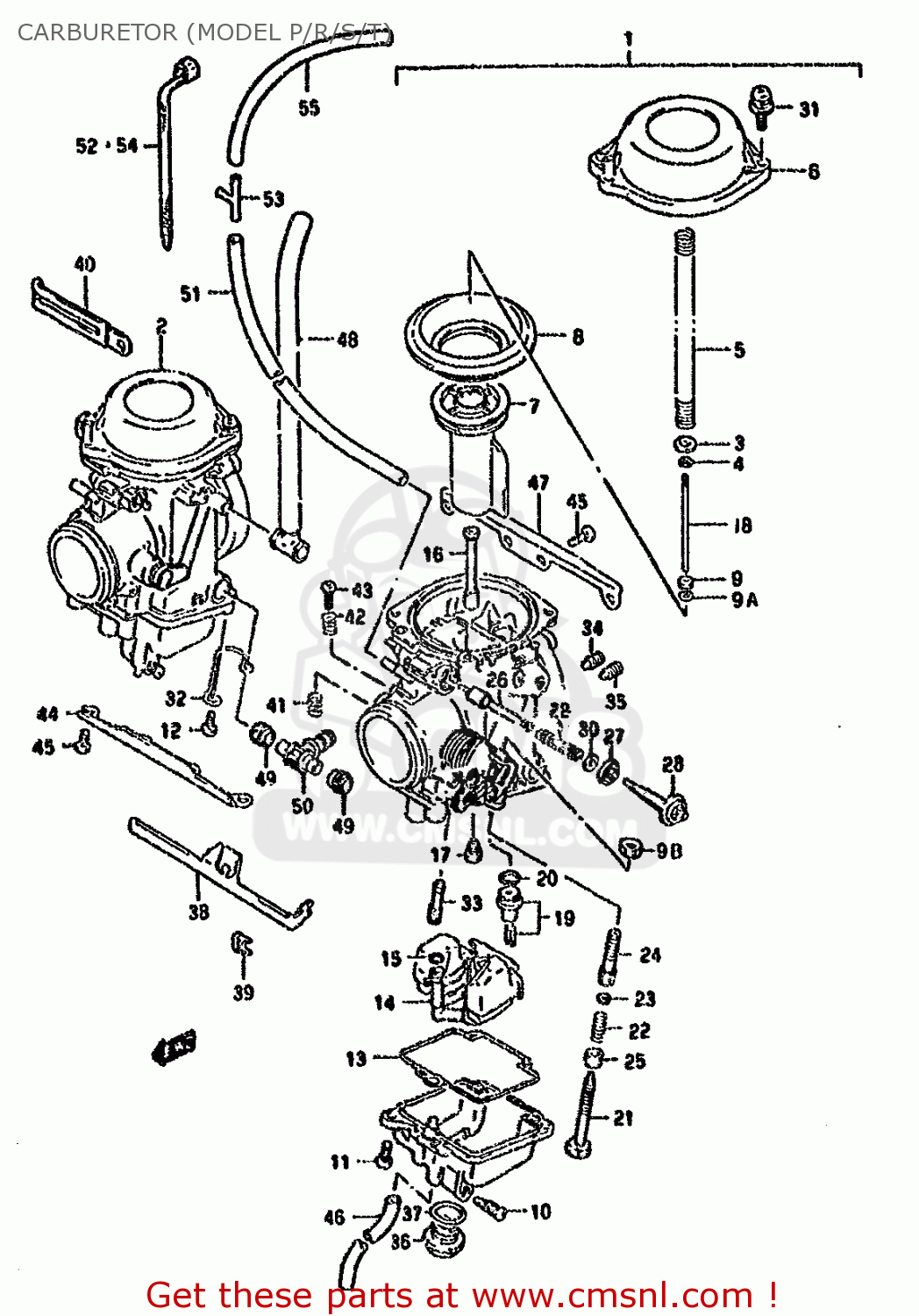

Carburetor (model p/r/s/t) diagram DR800SU 1995 (S) GERMANY (E22)
CARBURETOR (MODEL P/R/S/T) DR800SU 1995 (S) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
1320132D00
ref: 1-1
MODEL P/R/S
CARBURETOR ASSY,LH
€ 431.50
1-2
1320132D60
ref: 1-2
MODEL T
CARBURETOR ASSY, LH
€ 0.00
1-3
1320132D30
ref: 1-3
E18
CARBURETOR ASSY,LH
€ 358.00
1-4
1320132D10
ref: 1-4
MODEL P/R/S E22
CARBURETOR ASSY,LH
€ 0.00
1-5
1320132D70
ref: 1-5
MODEL T E22
CARBURETOR ASSY, LH
€ 0.00
1-6
1320132D20
ref: 1-6
DR800SUP E22
CARBURETOR ASSY,LH
€ 0.00
1-7
1320132D40
ref: 1-7
DR800SUR/SUS E22
CARBURETOR ASSY,LH
€ 0.00
1-8
1320132D80
ref: 1-8
DR800SUT E22
CARBURETOR ASSY, LH
€ 0.00
1-9
1320132D50
ref: 1-9
MODEL S E37
CARBURETOR ASSY,LH
€ 0.00
1-10
1320132D90
ref: 1-10
MODEL T E37
CARBURETOR ASSY,LH
€ 0.00
2-1
1320232D00
ref: 2-1
MODEL P/R/S
CARBURETOR,RH.
€ 598.50
2-2
1320232D60
ref: 2-2
MODEL T
CARBURETOR ASSY, RH
€ 0.00
2-3
1320232D30
ref: 2-3
E18
CARBURETOR ASSY,RH
€ 0.00
2-4
1320232D10
ref: 2-4
MODEL P/R/S E22
CARBURETOR ASSY,R
€ 598.50
2-5
1320232D70
ref: 2-5
MODEL T E22
CARBURETOR ASSY,R
€ 0.00
2-6
1320232D20
ref: 2-6
DR800SUP E22
CARBURETOR ASSY,RH
€ 0.00
2-7
1320232D40
ref: 2-7
DR800SUR/SUS E22
CARBURETOR ASSY,RH
€ 0.00
2-8
1320232D80
ref: 2-8
DR800SUT E22
CARBURETOR ASSY, RH
€ 0.00
2-9
1320232D50
ref: 2-9
MODEL S E37
CARBURETOR ASSY,RH
€ 0.00
2-10
1320232D90
ref: 2-10
MODEL T E37
CARBURETOR ASSY,RH
€ 0.00
3-1
1338242A00
ref: 3-1
RING
€ 3.50
3-2
1338232D40
ref: 3-2
DR800SUR/SUS E22
RING
€ 4.00
4
1339410010
ref: 4
EXCEPT DR800SUR/SUS
CLIP
€ 4.50
5
1341744B00
ref: 5
SPRING
€ 6.00
6-1
1350245B00
ref: 6-1
COVER,DIAPHRAGM
€ 36.00
6-2
1350201D10
ref: 6-2
E18
COVER ASSY,DIAPHRAGM
€ 31.50
6-3
1350245B20
ref: 6-3
DR800SUP E22
COVER, DIAPHRAGM
€ 26.50
6-4
1350201D10
ref: 6-4
DR800SUR/SUS/SUT E22
COVER ASSY,DIAPHRAGM
€ 31.50
7
1355144B10
ref: 7
VALVE PISTON
€ 74.50
8
1350744B00
ref: 8
DIAPHRAGM
€ 29.00
9
1338747010
ref: 9
RING
€ 7.50
9A
1338244030
ref: 9A
DR800SUR/SUS/SUT E22
WASHER
€ 3.50
9B
0831000087
ref: 9B
LH
NUT
€ 2.00
10
1324713A00
ref: 10
SCREW,DRAIN
€ 5.50
11
0211205127
ref: 11
LH:2,RH:1
SCREW
€ 2.50
12
1360105148
ref: 12
RH,-13602-05148
SCREW(5X14)
€ 3.00
13
1325844B00
ref: 13
GASKET,FLOAT CHAMBER (NAS)
€ 8.50
14
1324031D00
ref: 14
FLOAT ASSY
€ 52.50
15
1337446710
ref: 15
O RING
€ 4.50
16
0949400640
ref: 16
JET,NEEDLE (O-3)
€ 40.00
17
0949126011
ref: 17
JET,MAIN(130)
€ 11.50
18-1
1338344B00
ref: 18-1
NEEDLE,JET
€ 15.00
18-2
1338344B00
ref: 18-2
E18,DR800SUP E22
NEEDLE,JET
€ 15.00
18-3
1338332D40
ref: 18-3
DR800SUR/SUS E22
NEEDLE,JET
€ 14.00
18-4
1338332D80
ref: 18-4
DR800SUT E22
NEEDLE, JET (5E96)
€ 14.00
19-1
1337044B00
ref: 19-1
VALVE ASSEMBLY,NEEDLE
€ 46.50
19-2
1337002D00
ref: 19-2
E37
VALVE ASSY,NEEDLE
€ 46.50
20
1337444080
ref: 20
O-RING,NEEDLE VALVE
€ 6.00
21
1326731D10
ref: 21
LH
ADJUSTER
€ 12.00
22
1326849120
ref: 22
LH
SPRING
€ 5.50
23
1361543010
ref: 23
LH
WASHER,STARTER SHAFT
€ 2.50
24
1326731D00
ref: 24
LH
ADJUSTER
€ 21.50
25
1343295210
ref: 25
LH
RING
€ 4.00
26
1341105320
ref: 26
PLUNGER ASSY
€ 18.00
27
1341817C00
ref: 27
CAP,STARTER
€ 5.00
28
1341817C10
ref: 28
HOLDER,GUIDE
€ 14.00
29
1341726D00
ref: 29
SPRING
€ 5.50
30
1343247090
ref: 30
WASHER
€ 2.50
31
0211275163
ref: 31
SCREW
€ 2.50
32
1369244B00
ref: 32
RH
CLIP
€ 4.00
33
0949245016
ref: 33
JET,PILOT(45)
€ 12.00
34-1
0949326004
ref: 34-1
JET,AIR(1.3)
€ 14.50
34-2
0949331001
ref: 34-2
E18
JET,AIR(1.55)
€ 12.00
34-3
0949328007
ref: 34-3
DR800SUP/SUR/SUS/SUT
JET,AIR
€ 15.50
35
0949360004
ref: 35
JET,AIR(0.6)
€ 11.00
36
1324732210
ref: 36
SCREW,GUIDE
€ 13.00
37
1324941310
ref: 37
O RING,DRAIN PLUG
€ 5.00
38
1341331D00
ref: 38
LEVER,STARTER
€ 18.00
39
1343917C00
ref: 39
HOLDER
€ 12.00
40-1
0940406433
ref: 40-1
MODEL P/R/S
CLAMP(L:80)
€ 3.00
40-2
0940406431
ref: 40-2
MODEL T
CLAMP(L:65)
€ 2.50
41
1326896110
ref: 41
SPRING,THROTTLE SCREW
€ 4.50
42
1327144B00
ref: 42
SPRING
€ 4.00
43
1326744B00
ref: 43
SCREW
€ 3.50
44
1362844B00
ref: 44
PLATE
€ 9.50
45
0211205127
ref: 45
SCREW
€ 2.50
46
1368418900
ref: 46
LH L:500-250 RH L:50
HOSE
€ 13.50
47
1362844B10
ref: 47
PLATE
€ 10.00
48
1368317C30
ref: 48
L:425-175
HOSE
€ 20.50
49
1367344B00
ref: 49
SEAL
€ 6.00
50
1368544B00
ref: 50
NIPPLE
€ 10.00
51
0935450103600
ref: 51
L:600-330
HOSE,VACUUM
€ 7.50
52-1
0940714403
ref: 52-1
MODEL M/N/P/R/S
CLAMP(L:125)
€ 2.50
52-2
0940711401
ref: 52-2
MODEL T
CLAMP(L:95)
€ 2.50
53
0936706002
ref: 53
E18
JOINT,3 WAY
€ 3.00
54
0940714403
ref: 54
E18
CLAMP(L:125)
€ 2.50
55
0935450103600
ref: 55
E18 L:600-120
HOSE,VACUUM
€ 7.50
