SECOND AIR (E18,E39)
DR800SU 1995 (S) GERMANY (E22)

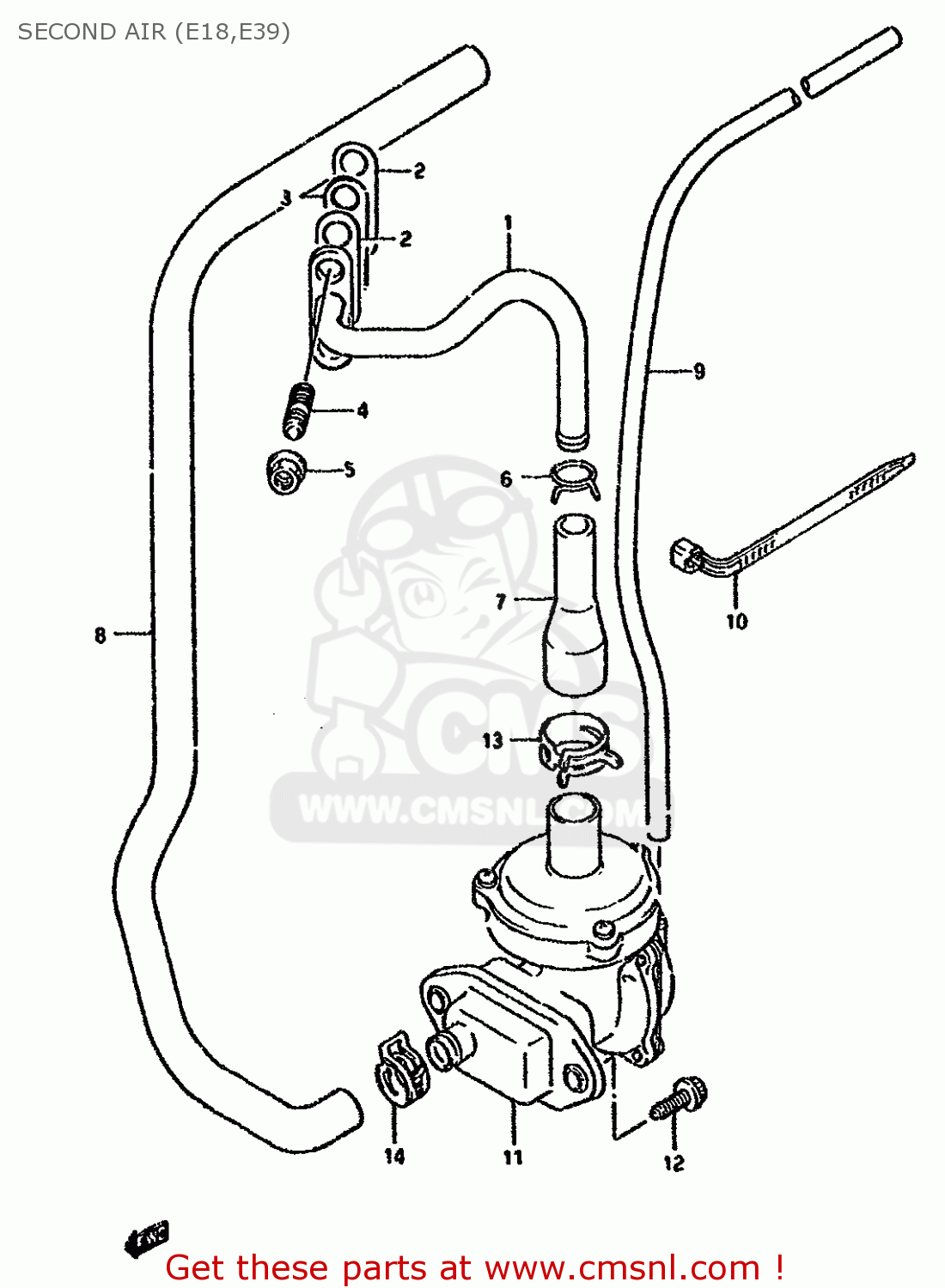

Second air (e18,e39) diagram DR800SU 1995 (S) GERMANY (E22)
SECOND AIR (E18,E39) DR800SU 1995 (S) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1842031D00
ref: 1
PIPE,2ND AIR
€ 0.00
2
1844131D00
ref: 2
GASKET (NA)
€ 6.50
3
1844231D00
ref: 3
PLATE
€ 0.00
4-1
0142108165
ref: 4-1
MODEL M/N/P
BOLT,STUD
€ 2.00
4-2
0142108163
ref: 4-2
MODEL R/S/T
BOLT
€ 2.00
5-1
0831616085
ref: 5-1
MODEL M/N/P
NUT 8MM
€ 3.00
5-2
0831610083
ref: 5-2
MODEL R/S/T
NUT
€ 3.00
6
0940115301
ref: 6
CLIP
€ 2.50
7
1844631D00
ref: 7
HOSE, 2ND AIR
€ 22.00
8
1844531D00
ref: 8
HOSE, 2ND AIR NO.4
€ 0.00
9
0935940701600
ref: 9
L:600-550
HOSE(4X7X600)
€ 9.00
10-1
0940714403
ref: 10-1
CLAMP(L:125)
€ 2.50
10-2
0940718402
ref: 10-2
MODEL M/N/P/R/S
CLAMP(L:165)
€ 2.50
10-3
0940718403
ref: 10-3
MODEL T
CLAMP L:165
€ 2.50
10-4
0940725401
ref: 10-4
E18
CLAMP(L:235)
€ 4.00
11
1845031D00
ref: 11
VALVE ASSY, 2ND AIR REED
€ 0.00
12
0712006163
ref: 12
BOLT MAGNETO S
€ 2.50
13
0940123403
ref: 13
CLIP
€ 4.50
14
0940115404
ref: 14
CLIP
€ 2.50
