HANDLEBAR (MODEL T)
DR800SU 1995 (S) GERMANY (E22)

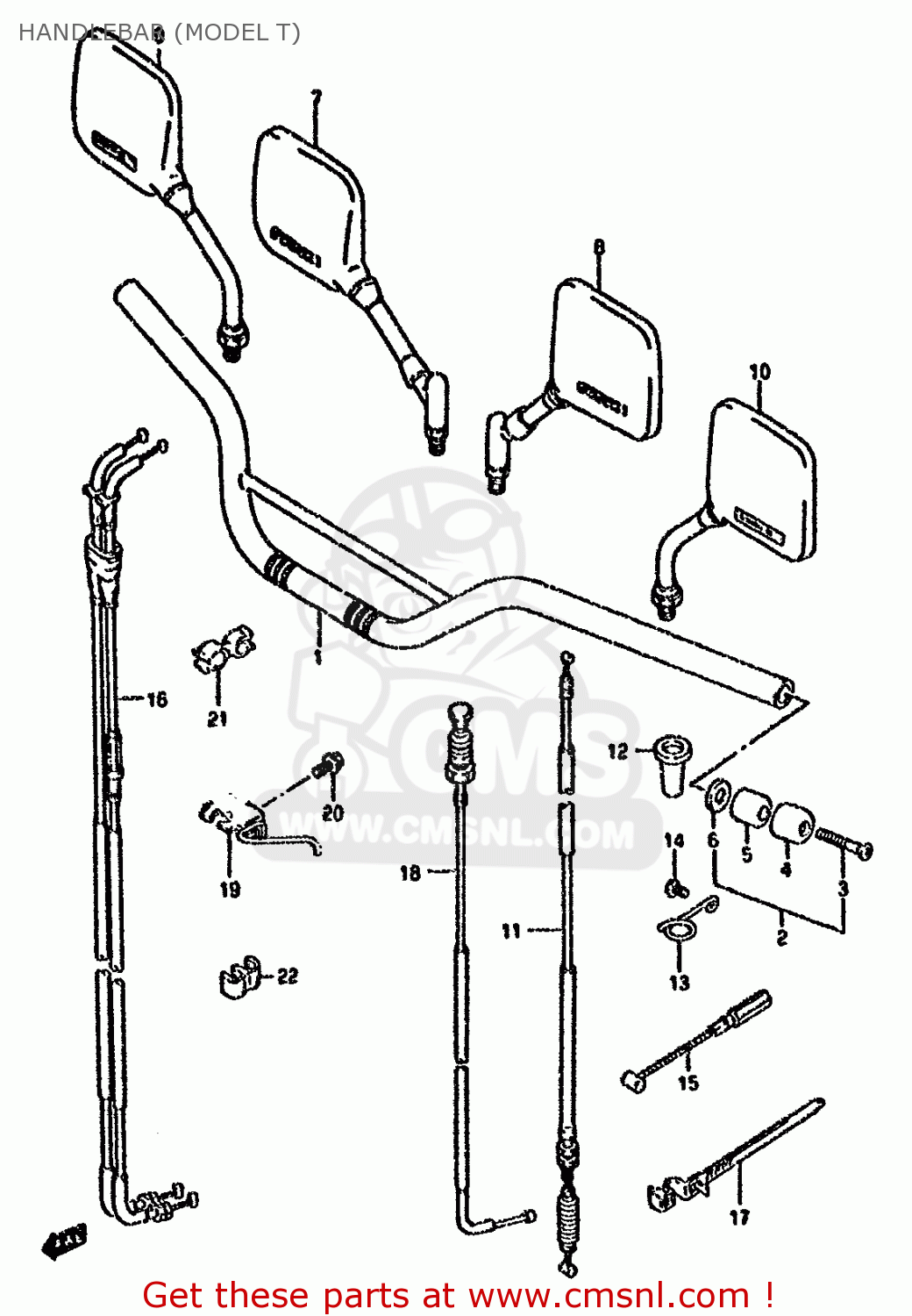

Handlebar (model t) diagram DR800SU 1995 (S) GERMANY (E22)
HANDLEBAR (MODEL T) DR800SU 1995 (S) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
5611044B3120H
ref: 1
HANDLEBAR
€ 106.50
2
5620011831
ref: 2
BALANCER SET,HANDLEBAR
€ 58.50
3
0212206453
ref: 3
SCREW
€ 2.00
4
5627405350
ref: 4
CAP,BALANCER
€ 223.50
5
5627149400
ref: 5
BALANCER,HANDLE
€ 19.50
6
5627534401
ref: 6
SPACER,BALANCER
€ 2.50
7
5650031D21
ref: 7
MIRROR ASSY
€ 234.50
8
5660031D21
ref: 8
MIRROR ASSY, L
€ 79.50
9-1
5650031D00
ref: 9-1
E18
MIRROR ASSY,RH
€ 222.50
9-2
5650031D10
ref: 9-2
E22
MIRROR ASSY, REAR VIEW RH
€ 222.50
10-1
5660031D00
ref: 10-1
E18
MIRROR ASSY,REAR VIEW LH
€ 34.00
10-2
5660031D10
ref: 10-2
E22
MIRROR ASSY,RE
€ 196.00
11
5820044B02
ref: 11
CABLE ASSY,CLUTCH
€ 38.50
12
5827331D00
ref: 12
BOOT,CLUTCH CABLE
€ 0.00
13
5829415D00
ref: 13
GUIDE,CLUTCH CABLE
€ 6.50
14
0214206123
ref: 14
SCREW 6X12
€ 2.00
15
5890031D10
ref: 15
CABLE ASSY,DECOMP
€ 17.00
16
5830031D10
ref: 16
CABLE ASSY,THROTTLE
€ 94.50
17
0940720403
ref: 17
CLAMP, CABLE
€ 4.00
18
5840031D10
ref: 18
CABLE ,STARTER
€ 37.50
19
5849031D00
ref: 19
BRACKET,STARTER CABLE
€ 15.50
20
0155006103
ref: 20
BOLT
€ 2.50
21
0940800078
ref: 21
CLAMP
€ 3.00
22
0940800101
ref: 22
CLIP
€ 2.50
22
0940800101
ref: 22
CLIP
€ 2.50
19
5840031D10
ref: 19
CABLE ,STARTER
€ 37.50
20
5849031D00
ref: 20
BRACKET,STARTER CABLE
€ 15.50
21-1
0151706105
ref: 21-1
MODEL M/N/P
BOLT
€ 2.50
21-2
0155006103
ref: 21-2
MODEL R
BOLT
€ 2.50
22
0940800078
ref: 22
CLAMP
€ 3.00
23
0940800101
ref: 23
MODEL P/R
CLIP
€ 2.50
