FRAME COVER (MODEL R/S/T)
DR800SU 1995 (S) GERMANY (E22)

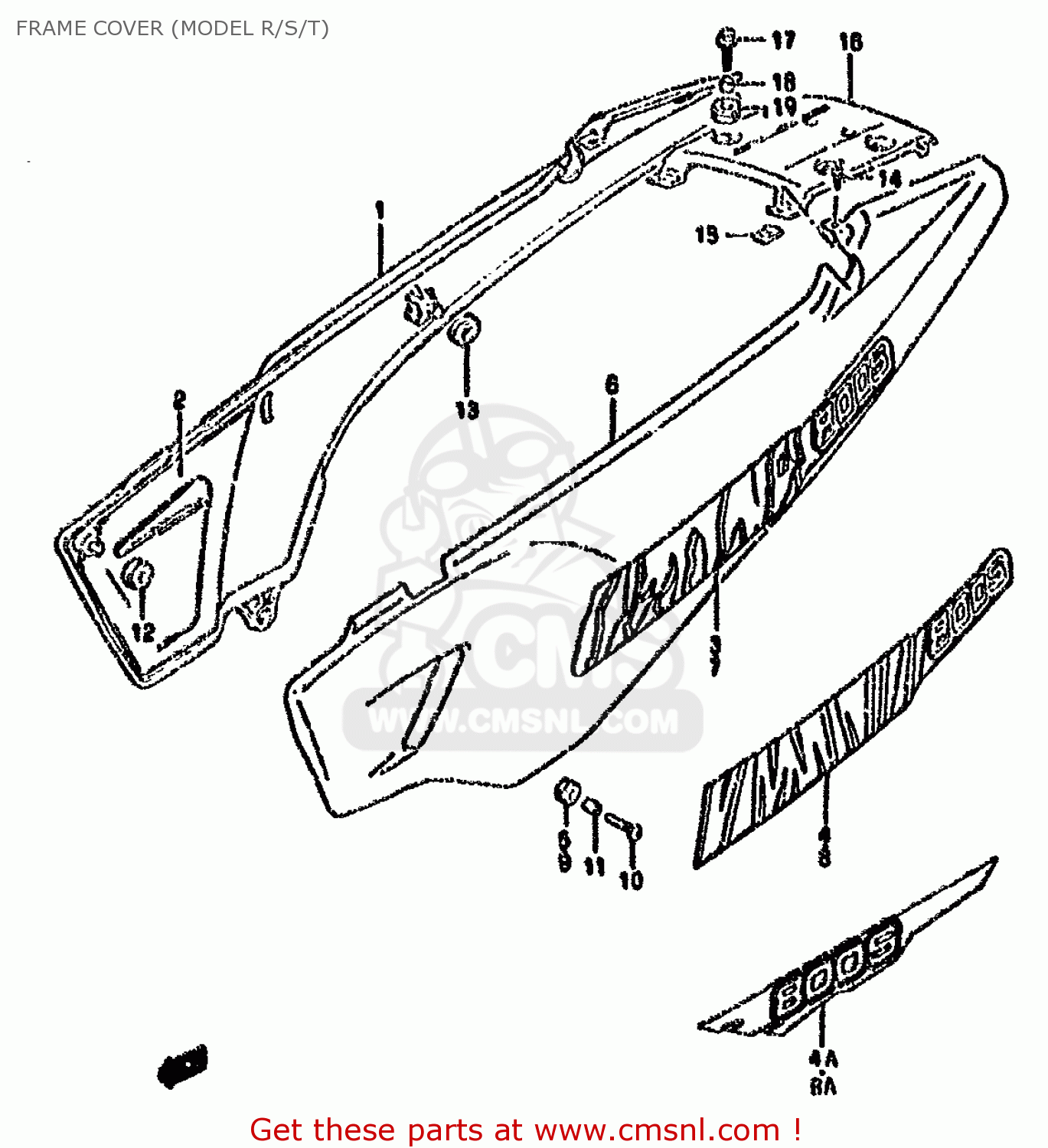

Frame cover (model r/s/t) diagram DR800SU 1995 (S) GERMANY (E22)
FRAME COVER (MODEL R/S/T) DR800SU 1995 (S) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
4711131D001LE
ref: 1-1
MODEL R/S
COVER,FRAME RH (BLUE)
€ 284.50
1-2
4711131D00Y98
ref: 1-2
MODEL T
COVER,FRAME,R(GREEN)
€ 240.00
1-3
4711131D0033J
ref: 1-3
COVER,FRAME,R(BLACK)
€ 239.50
2
4716631D00
ref: 2
HEAT SHIELD
€ 23.00
3-1
6813031D301WS
ref: 3-1
MODEL R FOR 1LE
TAPE,FRAME COVER,R
€ 0.00
3-2
6813031D301WT
ref: 3-2
MODEL R FOR 33J
TAPE SET,RH
€ 0.00
4-1
6813531D00Y56
ref: 4-1
MODEL S FOR 1LE
TAPE,RH
€ 0.00
4-2
6813531D00Y57
ref: 4-2
MODEL S FOR 33J
TAPE,RH
€ 34.00
4A-1
6813531D10F1N
ref: 4A-1
MODEL T FOR 33J
TAPE,RH
€ 33.50
4A-2
6813531D10F1P
ref: 4A-2
MODEL T FOR Y98
TAPE,RH
€ 26.00
5
0932009016
ref: 5
CUSHION
€ 2.50
6-1
4721131D001LE
ref: 6-1
MODEL R/S
COVER,FRAME LH (BLUE)
€ 229.50
6-2
4721131D00Y98
ref: 6-2
MODEL T
COVER,FRAME LH (GREEN)
€ 257.00
6-3
4721131D0033J
ref: 6-3
COVER,FRAME,L(BLACK)
€ 229.50
7-1
6814031D301WS
ref: 7-1
MODEL R FOR 1LE
TAPE SET,LH
€ 0.00
7-2
6814031D301WT
ref: 7-2
MODEL R FOR 33J
TAPE SET,LH
€ 0.00
8-1
6814531D00Y56
ref: 8-1
MODEL S FOR 1LE
TAPE,FRAME COVER,L
€ 0.00
8-2
6814531D00Y57
ref: 8-2
MODEL S FOR 33J
TAPE,LH
€ 24.50
8A-1
6814531D10F1N
ref: 8A-1
MODEL T FOR 33J
TAPE,LH
€ 24.50
8A-2
6814531D10F1P
ref: 8A-2
MODEL T FOR Y98
TAPE,FRAME COVER,L
€ 22.00
9
0932009016
ref: 9
CUSHION
€ 2.50
10
0913606081
ref: 10
SCREW(6X20)
€ 3.00
11
0918006114
ref: 11
SPACER (6.1X9X10)
€ 3.00
12
0932008013
ref: 12
CUSHION
€ 4.00
13
0932008029
ref: 13
CUSHION
€ 2.50
14
0324105123
ref: 14
SCREW L:12
€ 1.50
15
0914805038
ref: 15
NUT
€ 2.50
16-1
4731131D001LE
ref: 16-1
MODEL R/S
COVER,FRAME CENTER (BLUE)
€ 0.00
16-2
4731131D00Y98
ref: 16-2
MODEL T
COVER,FRAME CENTER (GREEN)
€ 41.00
16-3
4731131D0033J
ref: 16-3
COVER,FRAME CN
€ 42.00
17
0155006253
ref: 17
BOLT
€ 2.50
18
0918008147
ref: 18
SPACER (8.8X12X12.5)
€ 4.00
19
0932012031
ref: 19
CUSHION
€ 3.00
21
0932012031
ref: 21
CUSHION
€ 3.00
