OIL PUMP-FUEL PUMP
DR800SU 1995 (S) GERMANY (E22)

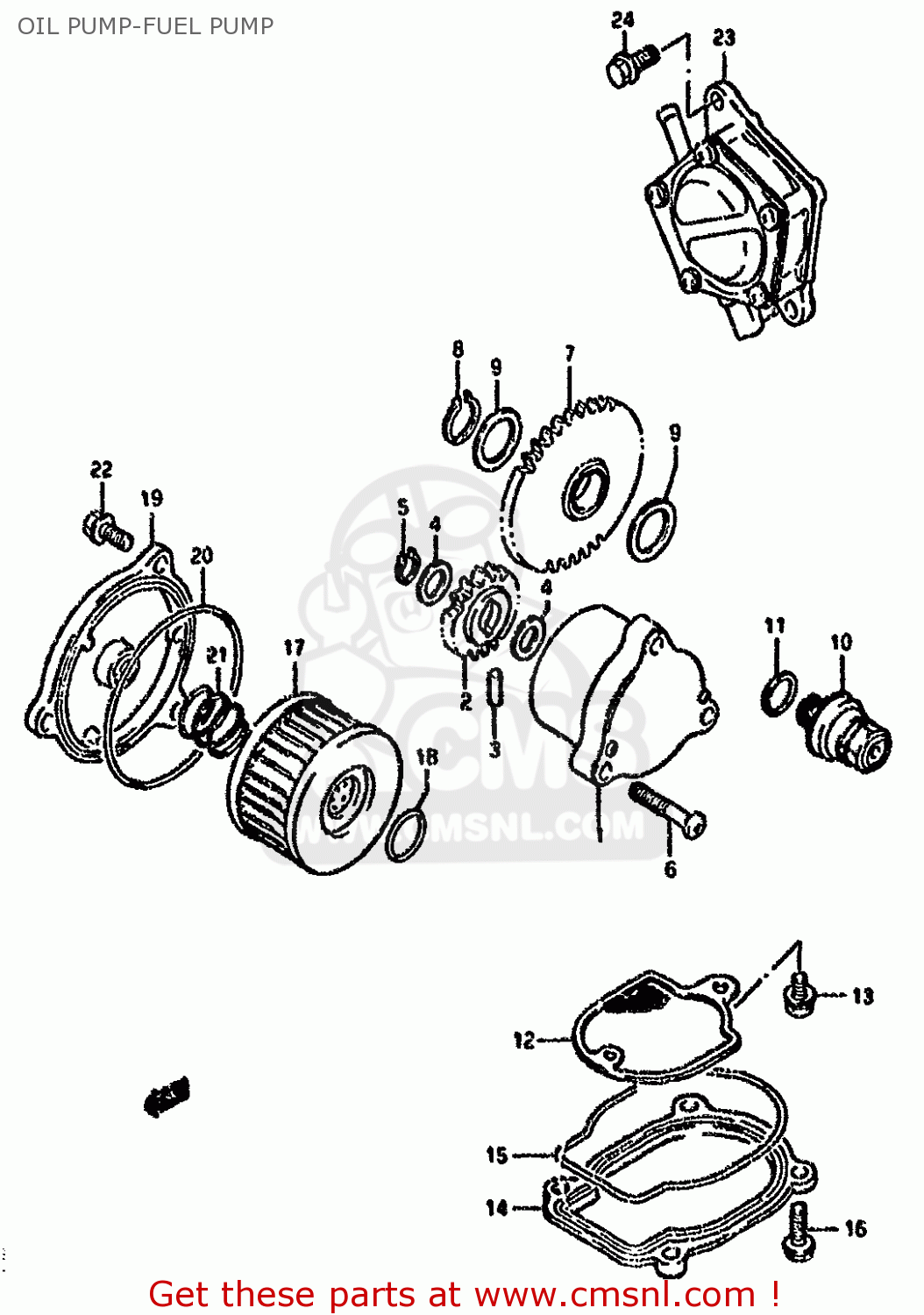

Oil pump-fuel pump diagram DR800SU 1995 (S) GERMANY (E22)
OIL PUMP-FUEL PUMP DR800SU 1995 (S) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1640044B00
ref: 1
PUMP ASSY,ENGINE OIL
€ 167.00
2
1633144B00
ref: 2
GEAR,OIL PUMP DRIVEN(NT:15)
€ 32.50
3
0926104009
ref: 3
PIN(4X15.8)
€ 1.50
4
0822110185
ref: 4
SHIM
€ 2.00
5
0833131106
ref: 5
CIRCLIP,10MM
€ 2.00
6-1
0211206307
ref: 6-1
MODEL M/N/P
SCREW
€ 2.50
6-2
0211206303
ref: 6-2
MODEL R/S/T
SCREW 6X30
€ 2.50
7
1632044B00
ref: 7
GEAR,OIL PUMP DRIVE
€ 53.50
8
0938017001
ref: 8
CIRCLIP
€ 2.00
9
0821117241
ref: 9
WASHER
€ 2.00
10
1644044B01
ref: 10
VALVE ASSY, OIL RELIEF
€ 43.00
11
0821214181
ref: 11
WASHER
€ 2.00
12
1652044B00
ref: 12
STRAINER,ENGINE OIL
€ 13.50
13
0211275123
ref: 13
SCREW
€ 2.50
14
1652338A00
ref: 14
CAP,OIL STRAINER
€ 19.50
15
1652838A00
ref: 15
O RING,OIL STRAINER CAP
€ 8.00
16-1
0155006207
ref: 16-1
MODEL M/N/P
BOLT
€ 2.50
16-2
0155006203
ref: 16-2
MODEL R/S/T
BOLT
€ 2.50
17
1651037440
ref: 17
FILTER,ENGINE OIL
€ 7.50
18-1
0928016005
ref: 18-1
MODEL M/N/P
O RING(D:2.4,ID:15.8)
€ 1.50
18-2
0928015007
ref: 18-2
MODEL R/S/T
O RING(D:2.4,ID:15.8)
€ 2.00
19
1651214D00
ref: 19
-16512-44B00-20H
CAP,OIL FILTER
€ 23.50
20
0928072001
ref: 20
O RING(D:2.4,ID:73)
€ 5.00
21-1
0944021004
ref: 21-1
MODEL M/N/P
SPRING
€ 13.00
21-2
0944021006
ref: 21-2
MODEL R/S/T
SPRING
€ 2.50
22
0154706167
ref: 22
BOLT
€ 2.00
23
1510031D00
ref: 23
PUMP ASSY,FUEL
€ 107.50
24
0155006163
ref: 24
BOLT
€ 2.50
