CLUTCH
GN125 1983 (D) (E01 E04 E18)

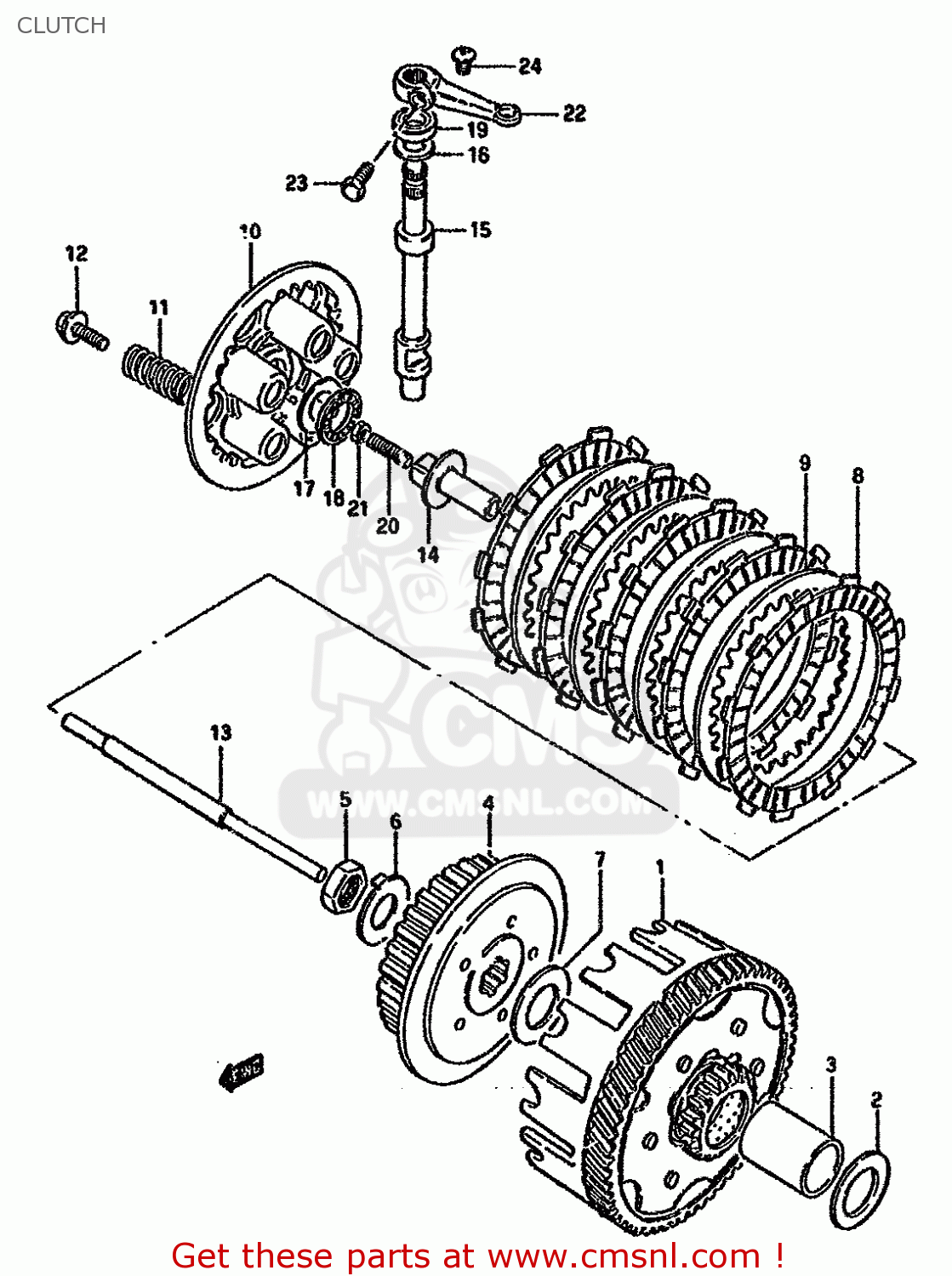

Clutch diagram GN125 1983 (D) (E01 E04 E18)
CLUTCH GN125 1983 (D) (E01 E04 E18)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120005200
ref: 1-1
NT:20/59,MODEL Z,-21
GEAR ASSEMBLY,PRIMARY DRIVE
€ 175.00
1-2
2120005853
ref: 1-2
NT:20/59,MODEL D/K/M
GEAR ASSY,PRI DRIVEN(NT:59)
€ 175.00
2
0821120353
ref: 2
WASHER
€ 2.50
3
0918020010
ref: 3
MODEL Z
SPACER
€ 11.50
4
2141105200
ref: 4
HUB,CLUTCH SLEEVE
€ 47.00
5
0914016014
ref: 5
NUT
€ 4.50
6
0916916003
ref: 6
WASHER
€ 2.00
7
0821120352
ref: 7
WASHER
€ 3.00
8
2144113A01
ref: 8
-21441-13A00
PLATE,CLUTCH DRIVE(T:3.0) (NAS)
€ 8.50
9
2145119A00
ref: 9
-21451-28000
PLATE,CLUTCH DRIVEN (NAS)
€ 4.50
10
2146214102
ref: 10
PLATE,CLUTCH PRESSURE
€ 16.00
11
0944015014
ref: 11
SPRING
€ 4.00
12
0911605003
ref: 12
BOLT 5X16
€ 2.50
13
2311005202
ref: 13
ROD,CLUTCH PUSH
€ 11.00
14
2312138200
ref: 14
PIECE,CLUTCH PUSH
€ 17.00
15
2312205200
ref: 15
CAMSHAFT,CLUTCH RELEASE
€ 31.00
16
0821110201
ref: 16
WASHER,THRUST
€ 2.00
17-1
0916015015
ref: 17-1
MODEL Z/D/K/M/N
WASHER
€ 4.00
17-2
0916015045
ref: 17-2
MODEL R
WASHER(15.5X28X1)
€ 4.00
18
0926315003
ref: 18
BEARING(15X28X2)
€ 7.00
19
0928210012
ref: 19
-09282-10007
SEAL,OIL(10X20X6)
€ 7.50
20
0913406010
ref: 20
SCREW(6X25)
€ 3.00
21-1
0831022067
ref: 21-1
MODEL Z/D/K/M/N
NUT 6MM
€ 2.50
21-2
0914006023
ref: 21-2
MODEL R
NUT
€ 2.00
22-1
2327146000
ref: 22-1
MODEL Z/D/K/M/N
ARM,CLUTCH RELEASE
€ 14.50
22-2
2327146010
ref: 22-2
MODEL R
ARM,CLUTCH RELEASE
€ 14.50
23
0150006167
ref: 23
-01107-06167
BOLT
€ 3.00
24
0214206108
ref: 24
SCREW
€ 2.00
