REAR FENDER
GN125 1983 (D) (E01 E04 E18)

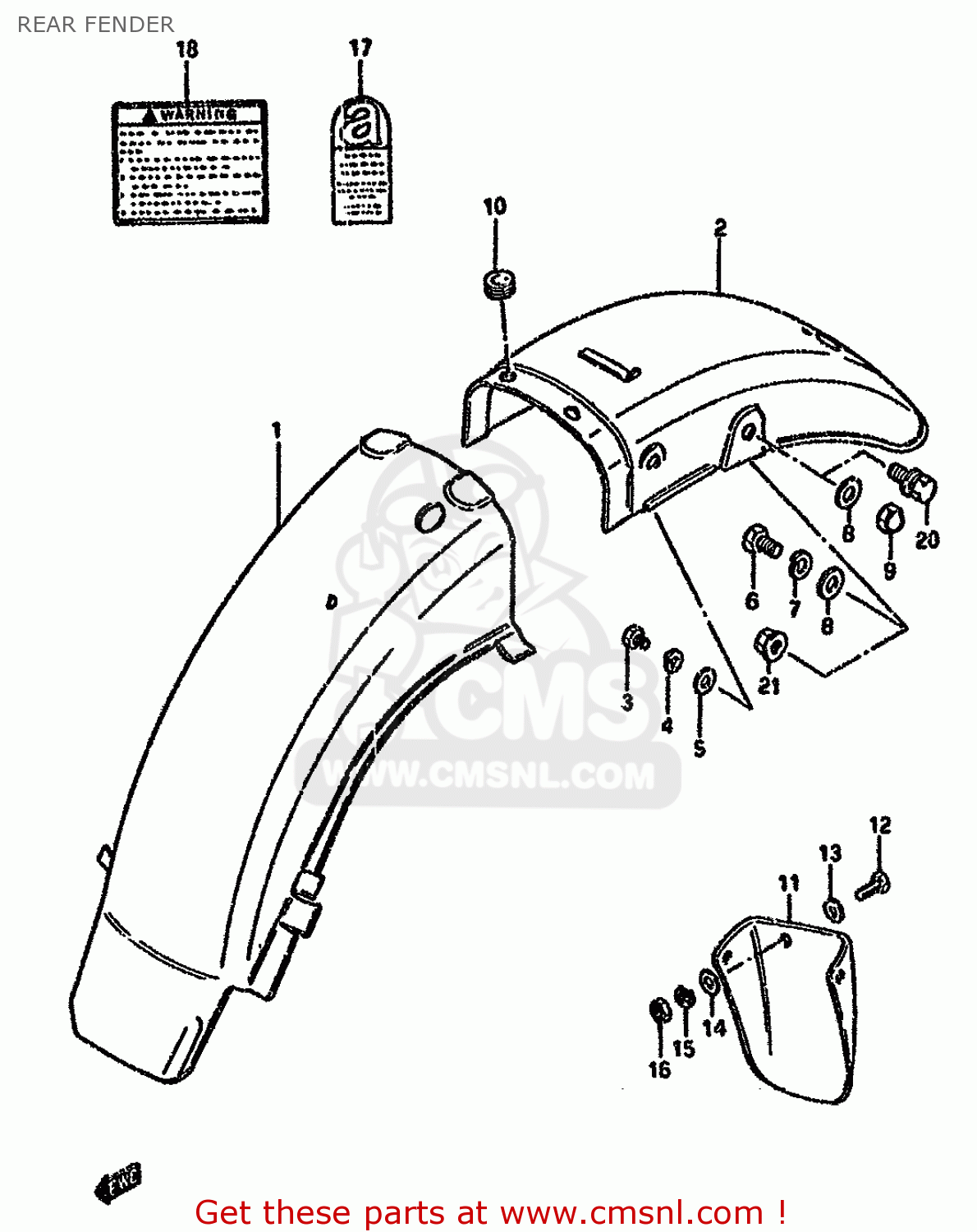

Rear fender diagram GN125 1983 (D) (E01 E04 E18)
REAR FENDER GN125 1983 (D) (E01 E04 E18)
×
prices are in EUR
ref
part #
description
quantity
1
6311205302
ref: 1
BODY,FR
€ 44.00
2-1
6311038312
ref: 2-1
FENDER,REAR
€ 127.50
2-2
6311038332
ref: 2-2
E18
FENDER, REAR
€ 142.50
2-3
6311038322
ref: 2-3
E22
FENDER, REAR
€ 250.50
2-4
6311038302
ref: 2-4
GN125EN/ER E30
FENDER,REAR FENDER,REAR
€ 136.50
3-1
0110706167
ref: 3-1
MODEL Z/D/K
BOLT
€ 3.00
3-2
0117706168
ref: 3-2
MODEL M/N
BOLT
€ 3.00
3-3
0158006163
ref: 3-3
MODEL R
BOLT
€ 2.50
4
0832121067
ref: 4
MODEL Z/D/K
WASHER,LOCK
€ 2.50
5
0832221067
ref: 5
MODEL Z/D/K
WASHER
€ 2.00
6
0110708207
ref: 6
MODEL Z/D/K/M/N
BOLT
€ 3.00
7
0832121088
ref: 7
MODEL Z/D/K/M/N
LOCK WASHER
€ 2.00
8
0832211088
ref: 8
MODEL Z/D/K/M/N
WASHER
€ 2.00
9
0831311087
ref: 9
MODEL Z/D/K/M/N
NUT
€ 2.50
10
0932005006
ref: 10
CUSHION
€ 4.00
11
6333133601
ref: 11
E18
FLAP,RR FENDER MUD
€ 21.50
12
0110706167
ref: 12
E18
BOLT
€ 3.00
13
0832221067
ref: 13
E18
WASHER
€ 2.00
14
0916006006
ref: 14
E18
WASHER
€ 2.00
15
0832121067
ref: 15
E18
WASHER,LOCK
€ 2.50
16
0831011067
ref: 16
E18
NUT 6MM
€ 2.50
17
1196782000
ref: 17
E2
LABEL,ASBESTOS WARNING
€ 2.00
18-1
6831940C00
ref: 18-1
LABEL
€ 8.00
18-2
6831940C30
ref: 18-2
E4,E21
LABEL, WARNING SAFETY
€ 8.50
18-3
6831940C20
ref: 18-3
E22
LABEL, WARNING SAFETY
€ 8.00
18-4
6831940C40
ref: 18-4
E34
LABEL, WARNING SAFETY
€ 8.00
19
6833205320
ref: 19
GN125EN/ER E30 WITH
LABEL (TIRE AIR PRESSURE)
€ 0.00
20
0158008257
ref: 20
MODEL R
BOLT
€ 3.00
21
0831610083
ref: 21
MODEL R
NUT
€ 3.00
