SPEEDOMETER-TACHOMETER
GN125 1983 (D) (E01 E04 E18)

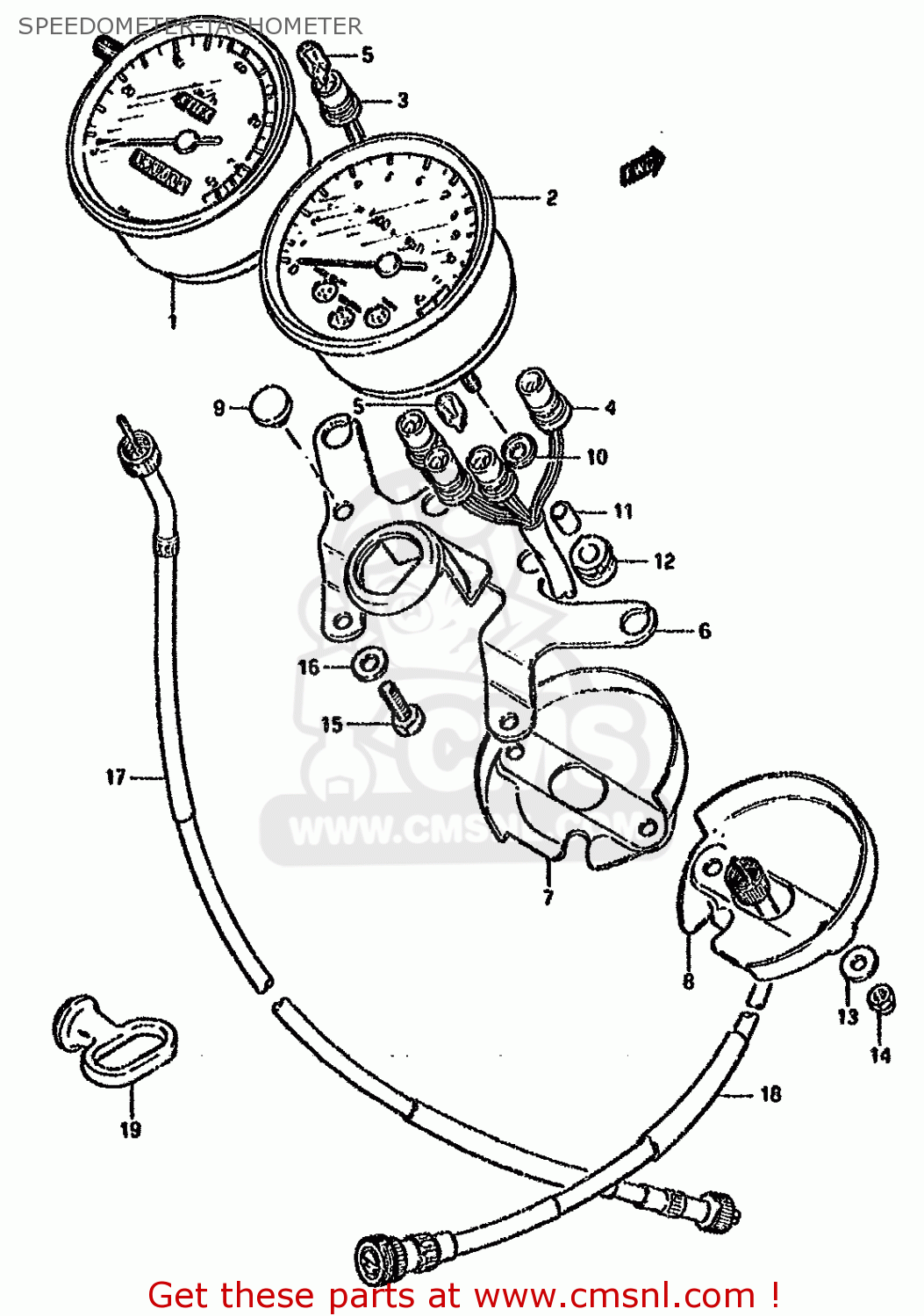

Speedometer-tachometer diagram GN125 1983 (D) (E01 E04 E18)
SPEEDOMETER-TACHOMETER GN125 1983 (D) (E01 E04 E18)
×
prices are in EUR
ref
part #
description
quantity
1-1
3411005310
ref: 1-1
METER,SPEED (KM/MPH)
€ 222.50
1-2
3411005300
ref: 1-2
SPEEDOMETER(KILO)
€ 251.50
2
3421005320
ref: 2
TACHOMETER
€ 211.50
3
3417305300
ref: 3
SOCKET,SPEEDOMETER
€ 11.50
4
3427305300
ref: 4
SOCKET,TACHOMETER
€ 27.50
5
0947112082
ref: 5
BULB(12V3.4W,T10,BF175-01450A)
€ 3.50
6
3495005300
ref: 6
BRACKET,METER
€ 22.00
7
3419305300
ref: 7
UNDER COVER,SPEEDOMETER
€ 13.00
8
3429305300
ref: 8
UNDER COVER,TACHOMETER
€ 12.50
9
3495628011
ref: 9
CUSHION,METER
€ 5.50
10-1
3496836010
ref: 10-1
MODEL Z/D/K/M/N
WASHER
€ 1.50
10-2
0916005013
ref: 10-2
MODEL R
WASHER(5.2X16X1)
€ 1.50
11
3418728310
ref: 11
SPACER,SPEEDOMETER
€ 2.00
12
3418928310
ref: 12
CUSHION,METER
€ 2.50
13-1
3418105300
ref: 13-1
MODEL Z/D/K/M/N
WASHER,METER
€ 1.50
13-2
0916005024
ref: 13-2
MODEL R
WASHER(5.5X16X1.5)
€ 1.50
14
0831310057
ref: 14
NUT
€ 1.50
15
0110706167
ref: 15
BOLT
€ 3.00
16
0832221067
ref: 16
WASHER
€ 2.00
17
3491005310
ref: 17
CABLE ASSY,SPEEDOMETER
€ 41.00
18
3494005300
ref: 18
CABLE ASSY,TACHOMETER
€ 44.00
19
5862121203A
ref: 19
MODEL D/K/M/R
GUIDE,CABLE
€ 7.50
