TRANSMISSION
GN125 1983 (D) (E01 E04 E18)

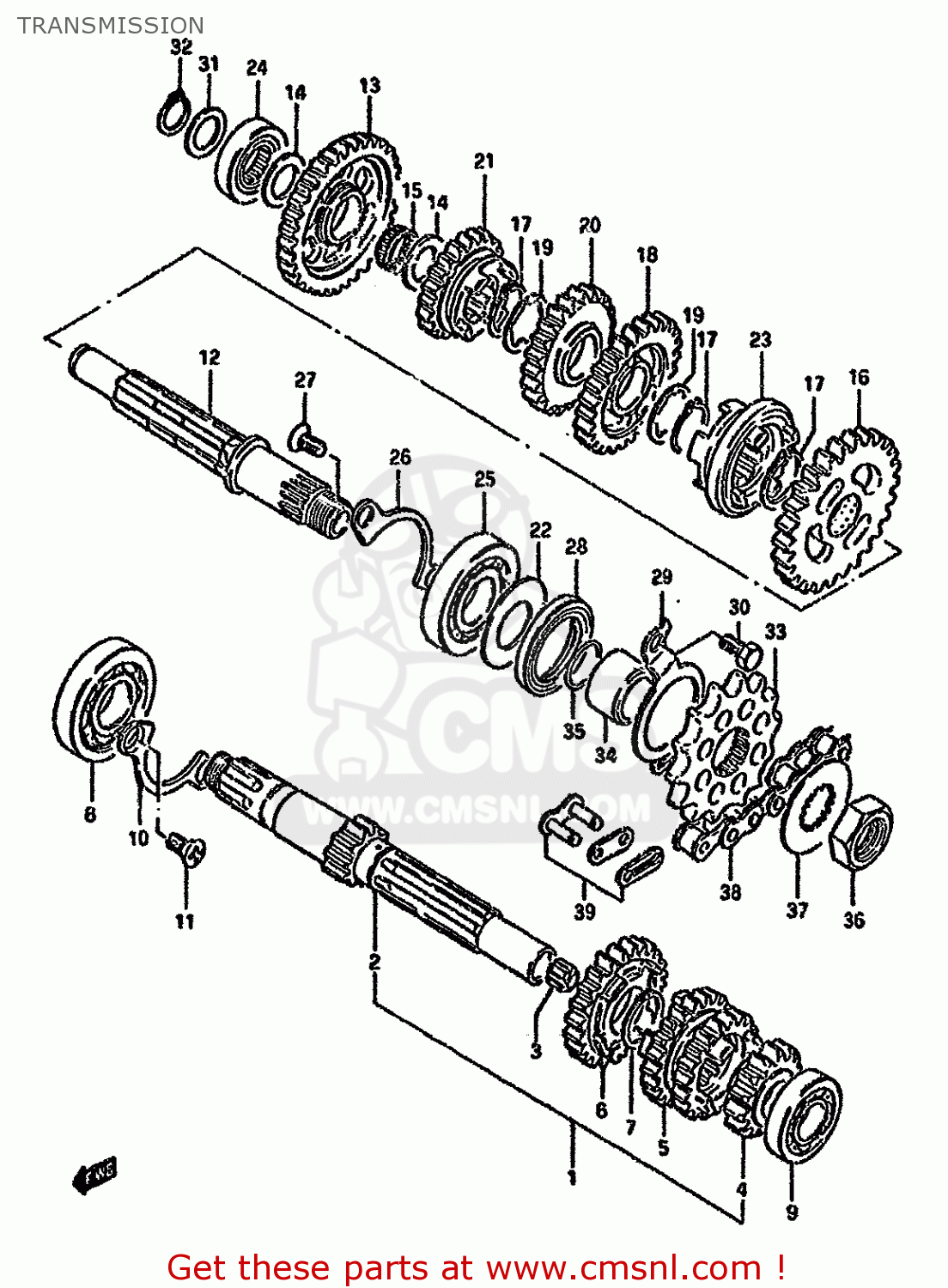

Transmission diagram GN125 1983 (D) (E01 E04 E18)
TRANSMISSION GN125 1983 (D) (E01 E04 E18)
×
prices are in EUR
ref
part #
description
quantity
1
2412005302
ref: 1
SHAFT,COUNTER
€ 97.00
2
2412105201
ref: 2
SHAFT,COUNTER
€ 97.00
3
2412538201
ref: 3
BUSH
€ 3.50
4
2422105300
ref: 4
GEAR,SECOND DRIVE
€ 30.00
5
2423105202
ref: 5
GEAR,THIRD & FOURTH DRIVE,N
€ 61.50
6
2425105202
ref: 6
GEAR,FIFTH DRIVE
€ 54.50
7
0938020009
ref: 7
CIRCLIP
€ 2.00
8
0926220069
ref: 8
BEARING(20X47X14)
€ 28.00
9
0812360027
ref: 9
BEARING
€ 16.00
10
2474105200
ref: 10
RETAINER,DRIVE SHAFT BEARING
€ 3.50
11
0212206128
ref: 11
SCREW
€ 3.00
12
2413005300
ref: 12
SHAFT,DRIVE
€ 93.00
13
2431105200
ref: 13
GEAR,FIRST DRIVEN
€ 53.00
14
0821115251
ref: 14
WASHER
€ 2.00
15
0926315023
ref: 15
BEARING(15X19X7.8)
€ 10.50
16
2432005201
ref: 16
GEAR,SECOND DRIVEN
€ 40.50
17
0938020009
ref: 17
CIRCLIP
€ 2.00
18
2433105201
ref: 18
GEAR,THIRD DRIVEN
€ 50.00
19
0916720011
ref: 19
WASHER,LOCK
€ 2.50
20
2434105201
ref: 20
GEAR,FOURTH DRIVEN
€ 50.00
21
2435105201
ref: 21
GEAR,FIFTH DRIVEN
€ 47.00
22
2435905200
ref: 22
WASHER,OIL SEALING
€ 4.50
23
2442105300
ref: 23
WHEEL,SLIDING DOG
€ 33.00
24
0926315024
ref: 24
BEARING(15X33X12)
€ 50.00
25
0926220069
ref: 25
BEARING(20X47X14)
€ 28.00
26
2474105200
ref: 26
RETAINER,DRIVE SHAFT BEARING
€ 3.50
27
0212206128
ref: 27
SCREW
€ 3.00
28
0928327010
ref: 28
SEAL,OIL(27X40X6)
€ 8.00
29
2475105201
ref: 29
PLATE,DRIVESHAFT OIL
€ 3.00
30
0110706106
ref: 30
BOLT
€ 2.00
31
0821115201
ref: 31
WASHER
€ 2.00
32
0833131156
ref: 32
CIRCLIP
€ 2.00
33-1
2751141301
ref: 33-1
MODEL Z/D/K/M/N
SPROCKET,ENGINE
€ 19.00
33-2
2751141310
ref: 33-2
MODEL R
SPROCKET,ENGINE
€ 19.00
34
2753105200
ref: 34
SPACER
€ 13.50
35
0928019005
ref: 35
O RING(D:2.4,ID:19)
€ 2.00
36
0914016017
ref: 36
NUT
€ 4.00
37
0916720012
ref: 37
WASHER,LOCK
€ 2.50
38
2760029B20124
ref: 38
-27600-36012
CHAIN,DRIVE
€ 128.00
39
2762040220
ref: 39
JOINT(RK)
€ 7.00
