HANDLE SWITCH (MODEL N,GN125ER)
GN125 1983 (D) (E01 E04 E18)

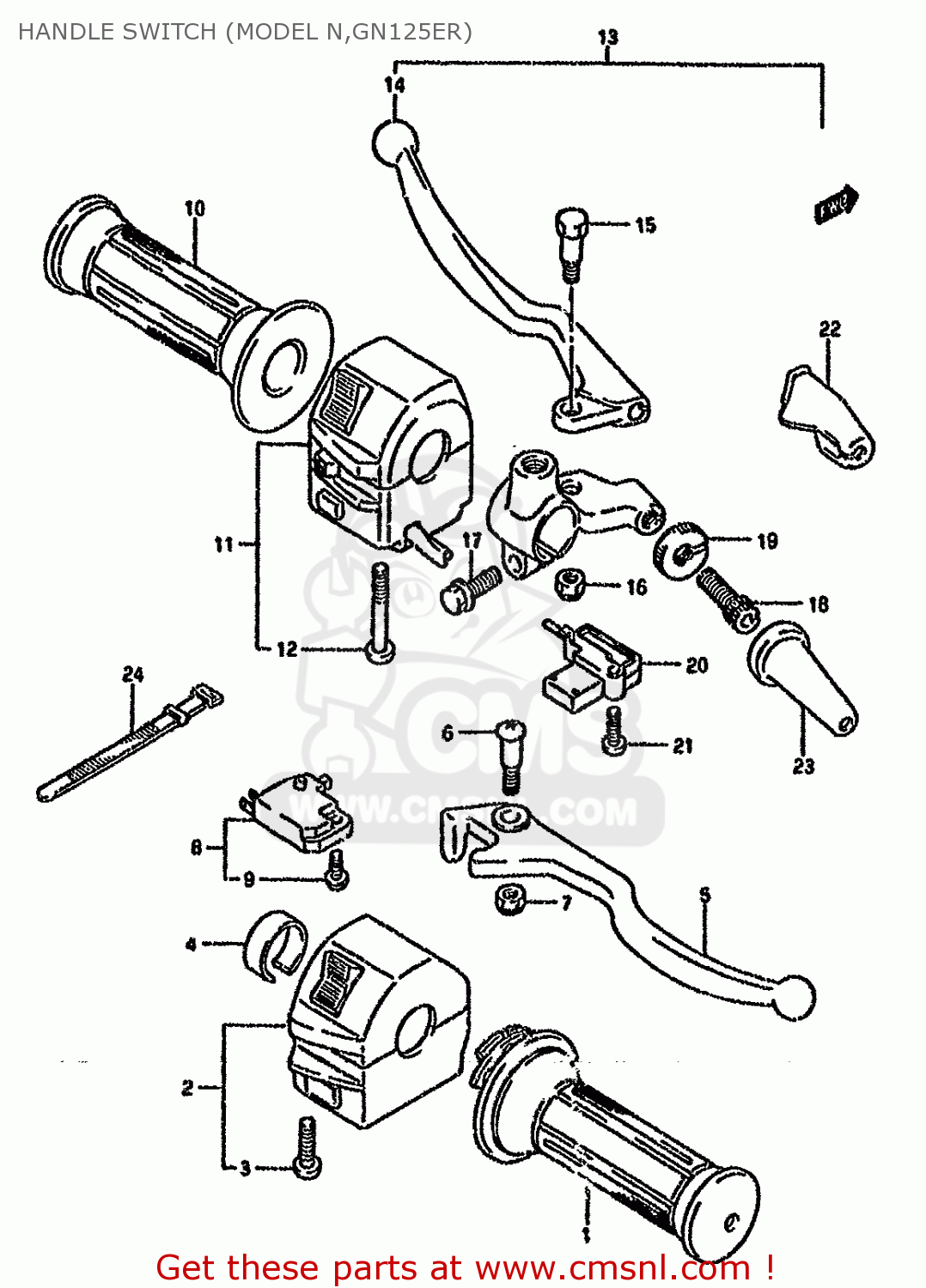

Handle switch (model n,gn125er) diagram GN125 1983 (D) (E01 E04 E18)
HANDLE SWITCH (MODEL N,GN125ER) GN125 1983 (D) (E01 E04 E18)
×
prices are in EUR
ref
part #
description
quantity
1
5711034300
ref: 1
GRIP,THROTTLE
€ 24.50
2
3720045C11
ref: 2
SWITCH ASSEMBLY,HANDLE,RIGHT
€ 92.50
3
0211205205
ref: 3
SCREW 5X20
€ 2.50
4
5611505300
ref: 4
SPACER,HANDLE SWITCH,R
€ 6.00
5
5742113001
ref: 5
LEVER,BRAKE
€ 18.00
6
5743113030
ref: 6
SCREW,BRAKE LEVER
€ 6.50
7
0831921065
ref: 7
NUT
€ 2.50
8
5746017C00
ref: 8
SWITCH ASSEMBLY,STOP
€ 32.50
9
5746517C00
ref: 9
SCREW
€ 1.50
10
5721134300
ref: 10
GRIP,L
€ 10.00
11
3740006B11
ref: 11
SWITCH ASSEMBLY,HANDLE,LEFT
€ 102.00
12
0211205405
ref: 12
SCREW
€ 2.00
13
5750005390
ref: 13
LEVER ASSY,CLUTCH
€ 53.00
14
5762005390
ref: 14
LEVER,CLUTCH
€ 65.50
15
5743145C00
ref: 15
BOLT,LEVER SET
€ 10.50
16
0831921065
ref: 16
NUT
€ 2.50
17
0154706205
ref: 17
BOLT 6X20
€ 2.50
18
5744145C00
ref: 18
ADJUSTER,WIRE
€ 8.50
19
5744245C00
ref: 19
NUT,LOCK
€ 7.50
20
5756005A00
ref: 20
SWITCH,CLUTCH
€ 11.00
21
0213203208
ref: 21
SCREW
€ 0.00
22
5766131000
ref: 22
COVER,CLUTCH LEVER
€ 5.50
23
5827331000
ref: 23
BOOT,CLUTCH CABLE
€ 2.50
24
0940712402
ref: 24
CLAMP(L:120)
€ 3.00
