Buy Suzuki GN Parts Online


FRONT CALIPERS (MODEL M E34,MODEL N/R)

GN125 1983 (D) (E01 E04 E18)

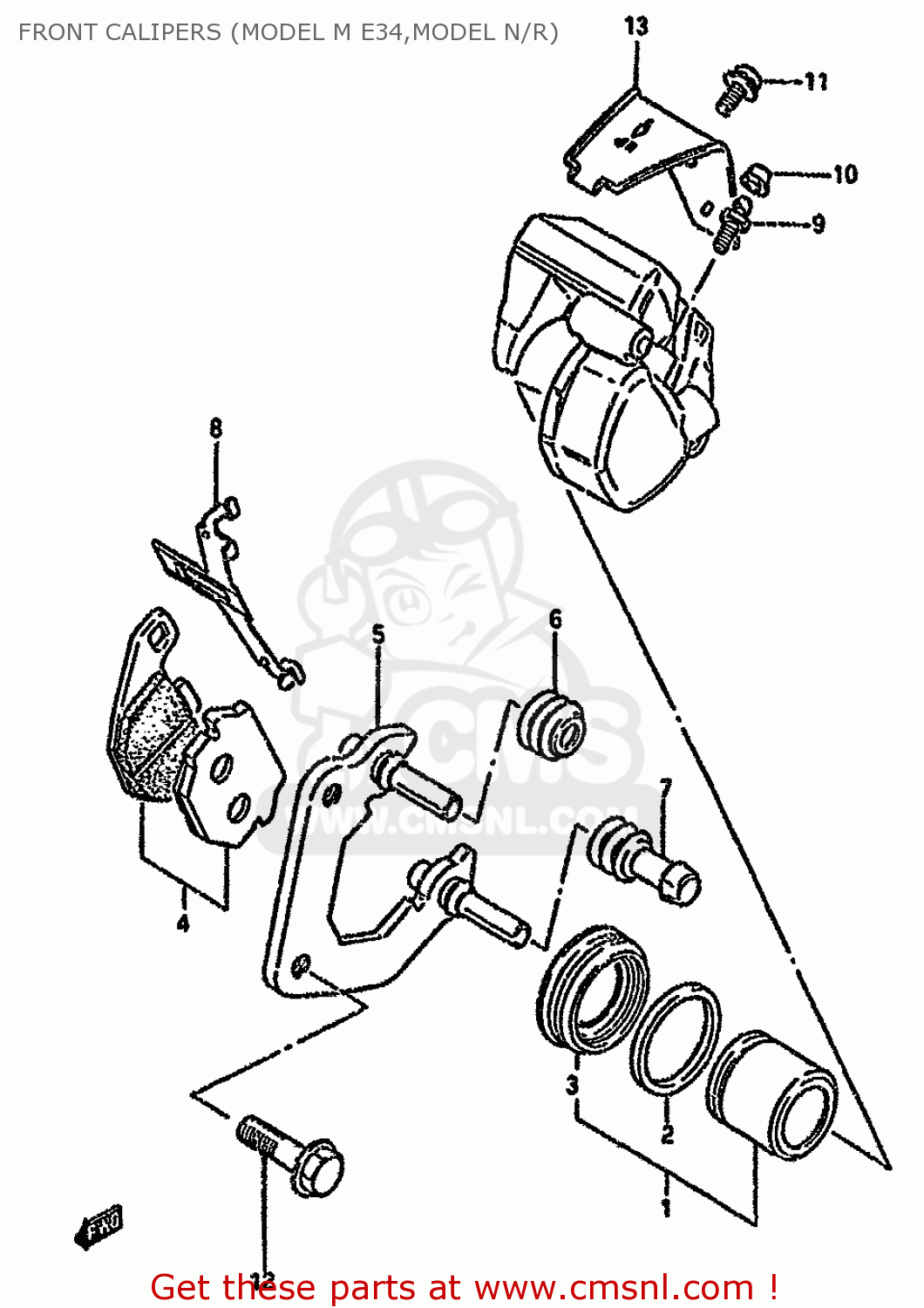

Front calipers (model m e34,model n/r) diagram GN125 1983 (D) (E01 E04 E18)

FRONT CALIPERS (MODEL M E34,MODEL N/R) GN125 1983 (D) (E01 E04 E18)
FRONT CALIPERS (MODEL M E34,MODEL N/R) GN125 1983 (D) (E01 E04 E18)
FRONT CALIPERS (MODEL M E34,MODEL N/R) GN125 1983 (D) (E01 E04 E18)
prices are in EUR
ref
part #
description
quantity
0
5930004712
ref: 0
TOKICO,-59300-04711
CALIPER ASSEMBLY,FRONT,LEFT
5930004712
€ 229.00
1
5930004850
ref: 1
PISTON SET
€ 53.00
2
5910739100
ref: 2
SEAL,PISTON
5910739100
€ 18.00
3
5930836500
ref: 3
BOOT,PISTON
5930836500
€ 12.50
4
5930004831
ref: 4
-59300-04830
PAD SET (NAS)
5930004831
€ 34.50
5
5935036501
ref: 5
CARRIER,L
5935036501
€ 52.00
6
5931236500
ref: 6
BOOT,AXLE
5931236500
€ 4.00
7
5931336500
ref: 7
INSULATOR,AXLE
5931336500
€ 5.50
8
5931536500
ref: 8
SPRING,PAD
5931536500
€ 11.00
9
5912118410
ref: 9
BLEEDER
5912118410
€ 8.00
10
5515666310
ref: 10
CAP,BLEEDER PLUG
5515666310
€ 6.00
11
0211275125
ref: 11
SCREW
€ 2.50
12
0155008303
ref: 12
BOLT
0155008303
€ 3.00
13
5931313001
ref: 13
PROTECTOR,CALIPER
5931313001
€ 4.50
14
5931505350
ref: 14
SPRING,PAD NO.1
5931505350
€ 6.50
15
5931705350
ref: 15
SPRING,PAD
5931705350
€ 7.50
16
5912147050
ref: 16
BREATHER
5912147050
€ 11.50
17
5247460020
ref: 17
CAP,BLEEDER PL
5247460020
€ 6.00
18
0211275125
ref: 18
SCREW
€ 2.50
19
0151708307
ref: 19
BOLT 8X30
€ 3.50
20
5931313001
ref: 20
PROTECTOR,CALIPER
5931313001
€ 4.50
