CHAIN CASE
GN125E 1992 (N) USA (E03)

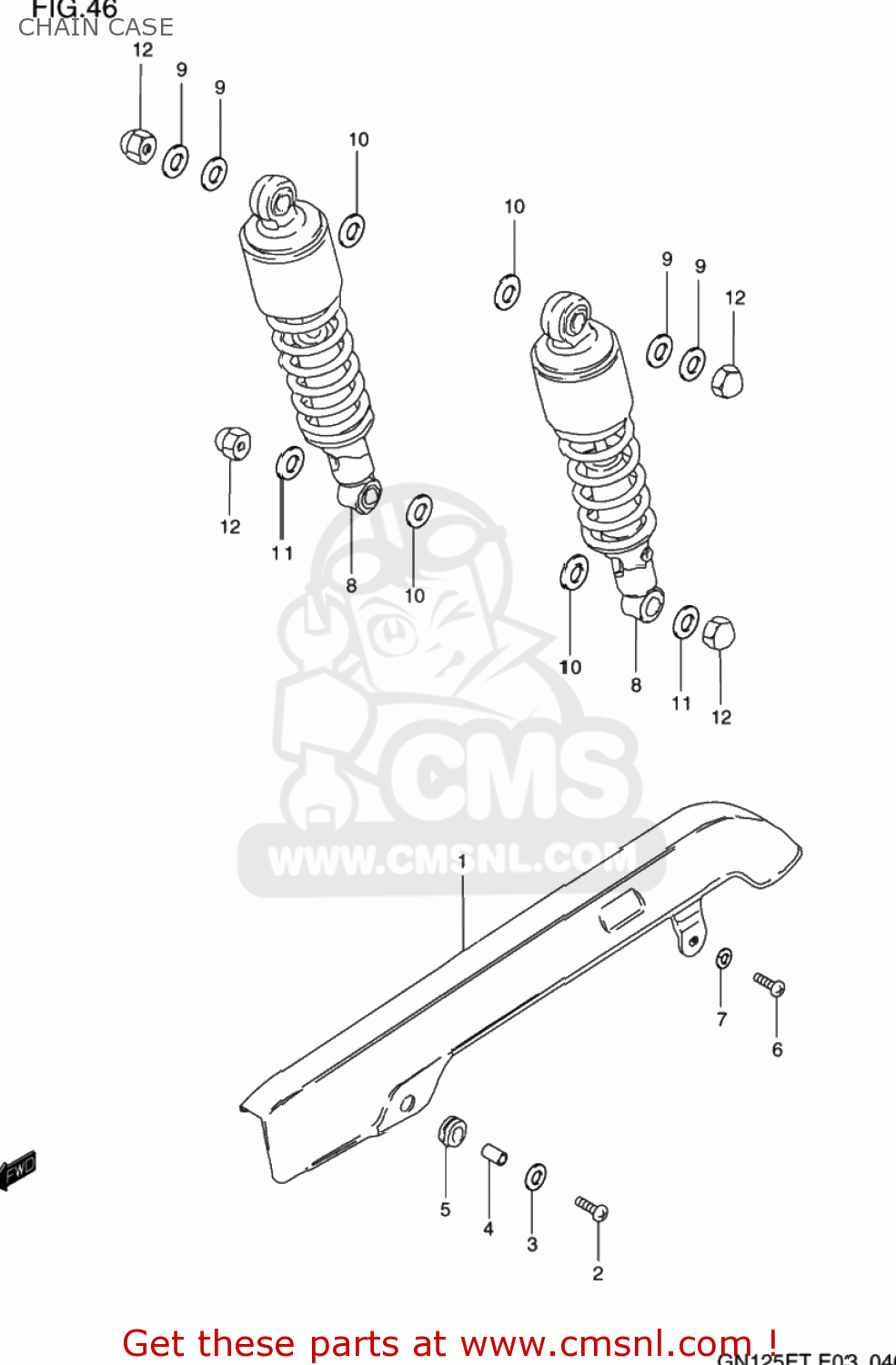

Chain case diagram GN125E 1992 (N) USA (E03)
CHAIN CASE GN125E 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6131005301
ref: 1
CASE,CHAIN
€ 43.50
2-1
0211206167
ref: 2-1
SCREW
€ 2.50
2-2
0211206163
ref: 2-2
02112-0616A
SCREW 6X16
€ 2.00
2-3
0211236163
ref: 2-3
02112-3616A
SCREW
€ 2.50
3
0916006027
ref: 3
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
4
0918007005
ref: 4
09180-06259
SPACER (7X9X7)
€ 2.50
5
0932008021
ref: 5
CUSHION
€ 4.00
6-1
0211206167
ref: 6-1
SCREW
€ 2.50
6-2
0211236168
ref: 6-2
02112-36167
SCREW
€ 2.00
6-3
0211236163
ref: 6-3
02112-3616A
SCREW
€ 2.50
7
0832121067
ref: 7
08321-01067
WASHER,LOCK
€ 2.50
8
6210005330
ref: 8
ABSORBER ASSY,RR SHOCK
€ 178.00
9
0916010001
ref: 9
09160-10093
WASHER
€ 2.00
10
0916012020
ref: 10
09160-12089
WASHER (12.5X27X1.6)
€ 2.00
11
0916010001
ref: 11
09160-10093
WASHER
€ 2.00
12-1
0831311107
ref: 12-1
08313-10107
NUT
€ 2.50
12-2
0831310107
ref: 12-2
NUT
€ 2.50
