REAR COMBINATION
GN125E 1992 (N) USA (E03)

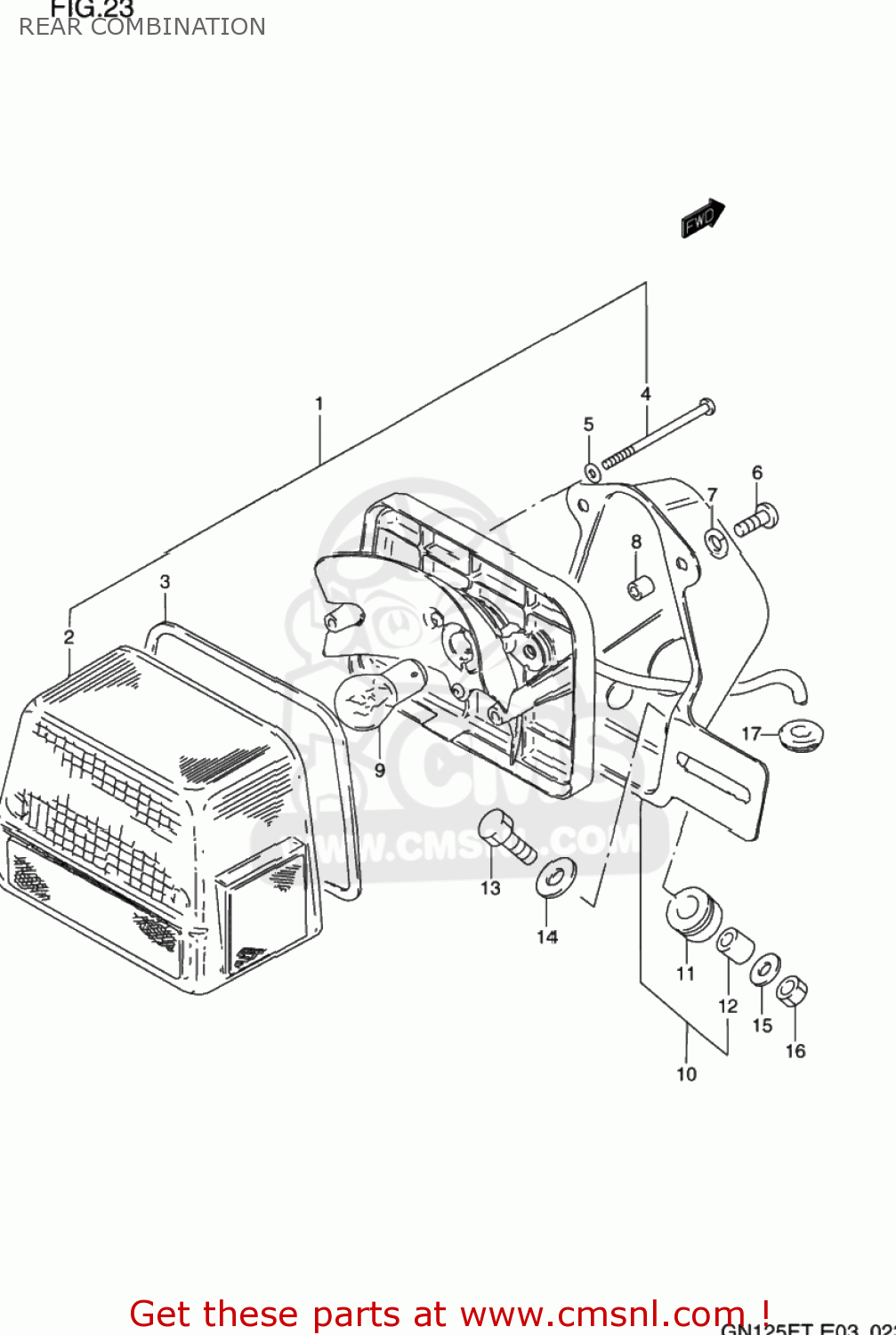

Rear combination diagram GN125E 1992 (N) USA (E03)
REAR COMBINATION GN125E 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3572038330999
ref: 1
LAMP UNIT,RR COMBNATION
€ 88.00
2
3571249130
ref: 2
LENS
€ 49.00
3
3571349130
ref: 3
GASKET (NAS)
€ 5.50
4
3572344130
ref: 4
SCREW
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
0211205167
ref: 6
SCREW
€ 2.50
7-1
0832121057
ref: 7-1
08321-0105A
LOCK WASHER
€ 2.00
7-2
0832101057
ref: 7-2
08321-0105A
WASHER,LOCK
€ 2.00
8
3576639210
ref: 8
SPACER
€ 0.00
9
0947112035
ref: 9
BULB(12V23W)
€ 5.50
10
3573049130
ref: 10
BRACKET UNIT,TAIL LAMP
€ 0.00
11
3576522210
ref: 11
CUSHION
€ 4.00
12
3576637120
ref: 12
SPACER
€ 2.50
13-1
0110706257
ref: 13-1
01500-06257
BOLT
€ 2.00
13-2
0911606047
ref: 13-2
BOLT(6X25)
€ 2.00
13-3
0911606093
ref: 13-3
BOLT(6X25)
€ 2.00
14
0916006027
ref: 14
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
15
0832201063
ref: 15
08322-0106B
WASHER
€ 2.00
16-1
0831012066
ref: 16-1
08310-0006A
NUT
€ 2.00
16-2
0831000063
ref: 16-2
08310-0006A
NUT 6MM
€ 2.00
17
0930809004
ref: 17
GROMMET
€ 0.00
