FRONT FORK (MODEL M/N/P/R/S)
GN125E 1992 (N) USA (E03)

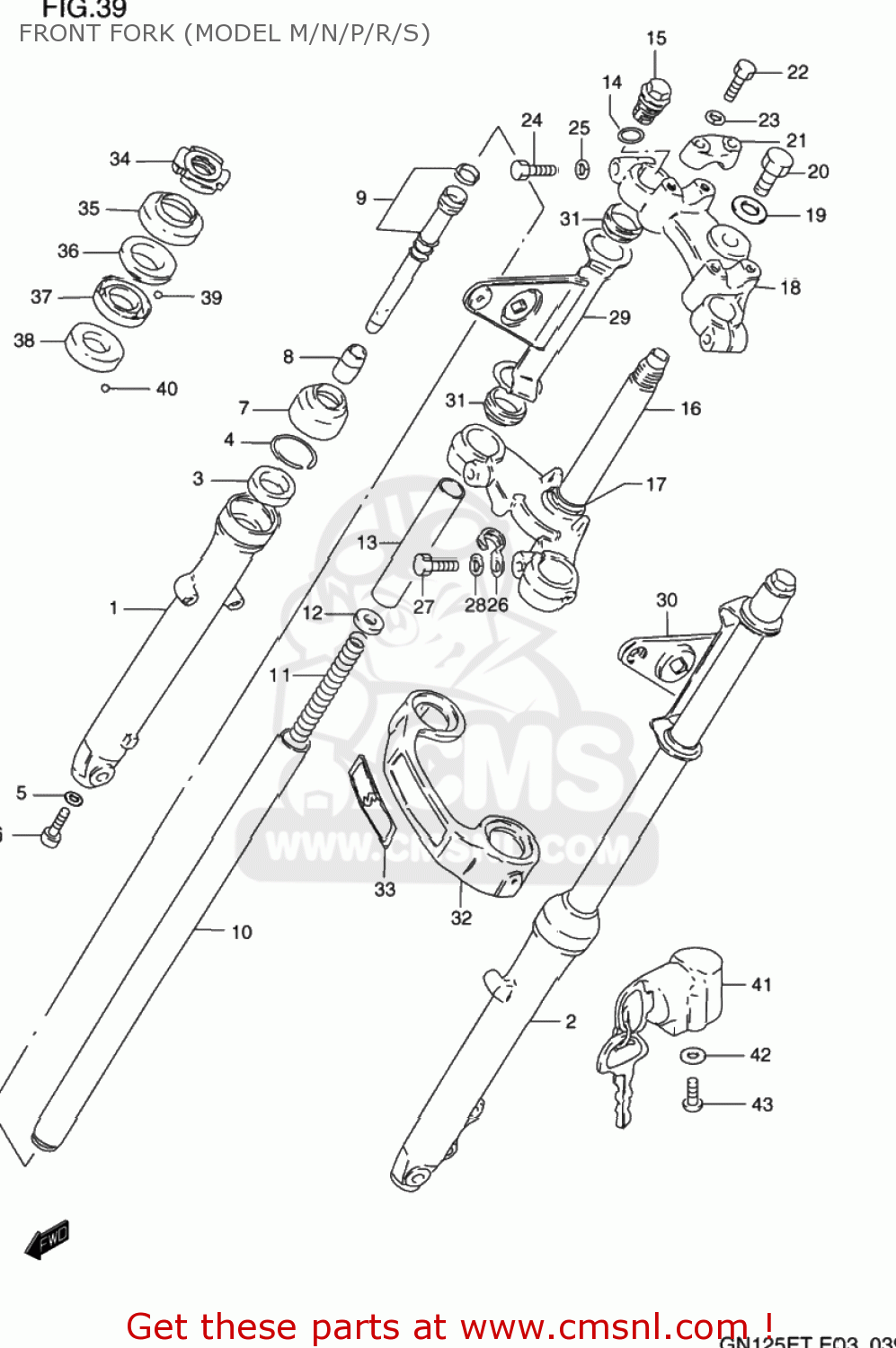

Front fork (model m/n/p/r/s) diagram GN125E 1992 (N) USA (E03)
FRONT FORK (MODEL M/N/P/R/S) GN125E 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110005301291
ref:
FORK ASSY,FR
€ 688.00
1
5113005300
ref: 1
TUBE,OUTER,R
€ 140.50
2
5114005300
ref: 2
TUBE,OUTER,L
€ 154.50
3
5115305300
ref: 3
SEAL,OIL
€ 9.00
4
5115641603
ref: 4
RING,SNAP
€ 7.50
5
5114841310
ref: 5
GASKET (NAS)
€ 2.50
6
5114716510
ref: 6
BOLT,FORK CYLINDER(10X25)
€ 3.50
7
5117341603
ref: 7
SEAL,DUST
€ 6.00
8
5119536220
ref: 8
PIECE,OIL LOCK
€ 11.50
9
5114605300
ref: 9
CYLINDER
€ 35.00
10
5111005300
ref: 10
TUBE,INNER
€ 257.50
11
5117105300
ref: 11
SPRING
€ 24.50
12
5117218630
ref: 12
GUIDE,SPRING COVER
€ 5.50
13
5117605300
ref: 13
SPACER
€ 10.00
14-1
5118125010
ref: 14-1
51181-29400
O-RING,FORK INNER TUBE
€ 2.50
14-2
5118129400
ref: 14-2
O RING
€ 2.50
15
5135141603
ref: 15
CAP
€ 11.00
16
5141011311
ref: 16
STEM,STEERING
€ 157.50
17
5162133001
ref: 17
RACE,STEERING OUTER LWR
€ 10.00
18
5131111300291
ref: 18
HEAD,STEERING STEM(BLACK)
€ 128.00
19
5135622012
ref: 19
WASHER,STEM HEAD(10.5X30X3.2)
€ 4.00
20-1
5135120010
ref: 20-1
51351-29400
BOLT,FORK INNER TUBE
€ 25.00
20-2
5135120011
ref: 20-2
51351-29400
BOLT,FORK INNER TUBE
€ 25.00
21
5621129320291
ref: 21
HOLDER,HANDLE(BLACK)
€ 12.00
22
0120408357
ref: 22
BOLT
€ 3.50
23-1
0832121088
ref: 23-1
08321-01087
LOCK WASHER
€ 2.00
23-2
0832101087
ref: 23-2
WASHER,LOCK
€ 2.00
24-1
5145115113
ref: 24-1
01104-10388
BOLT,FORK INNER TUBE F
€ 2.50
24-2
5145115114
ref: 24-2
01104-10388
BOLT,FORK INNER TUBE F
€ 2.50
24-3
0110410388
ref: 24-3
BOLT
€ 2.50
25-1
0832121107
ref: 25-1
08321-01107
WASHER,LOCK,10
€ 2.00
25-2
0832101107
ref: 25-2
WASHER,LOCK
€ 2.00
26
5145536010
ref: 26
CLIP
€ 6.50
27
5145128012
ref: 27
BOLT,FR FORK LWR(12X33)
€ 11.50
28-1
0832121128
ref: 28-1
08321-01127
WASHER,LOCK 12
€ 2.50
28-2
0832101127
ref: 28-2
WASHER,LOCK
€ 2.50
29
5153005300
ref: 29
BRACKET,HEADLAMP,R
€ 42.00
30
5154005300
ref: 30
BRACKET,HEADLAMP,L
€ 42.00
31
5155311300
ref: 31
CUSHION,HEADLAMP BRACKET
€ 3.50
32
5187105301
ref: 32
COVER,FR FORK
€ 28.50
33
6821138300
ref: 33
EMBLEM,FR FORK COVER
€ 13.50
34
5163128000
ref: 34
NUT,STEERING STEM(25X44X10)
€ 12.50
35
5164325001
ref: 35
DUST SEAL,STEERING UPR
€ 4.50
36
5162128000
ref: 36
RACE,STEERING OUTER UPR
€ 7.00
37
5161120002
ref: 37
RACE,STEERING INNER UPR
€ 5.50
38
5161133002
ref: 38
LACE,STEERING INNER LWR
€ 7.00
39
0611106003
ref: 39
BALL
€ 1.50
40
0611108003
ref: 40
BALL
€ 1.50
41
5191025311
ref: 41
LOCK ASSY,STEERING
€ 22.50
42
0832121057
ref: 42
08321-0105A
LOCK WASHER
€ 2.00
43
0211205128
ref: 43
02112-05127
SCREW
€ 2.50
