HANDLE LEVER
GN125E 1992 (N) USA (E03)

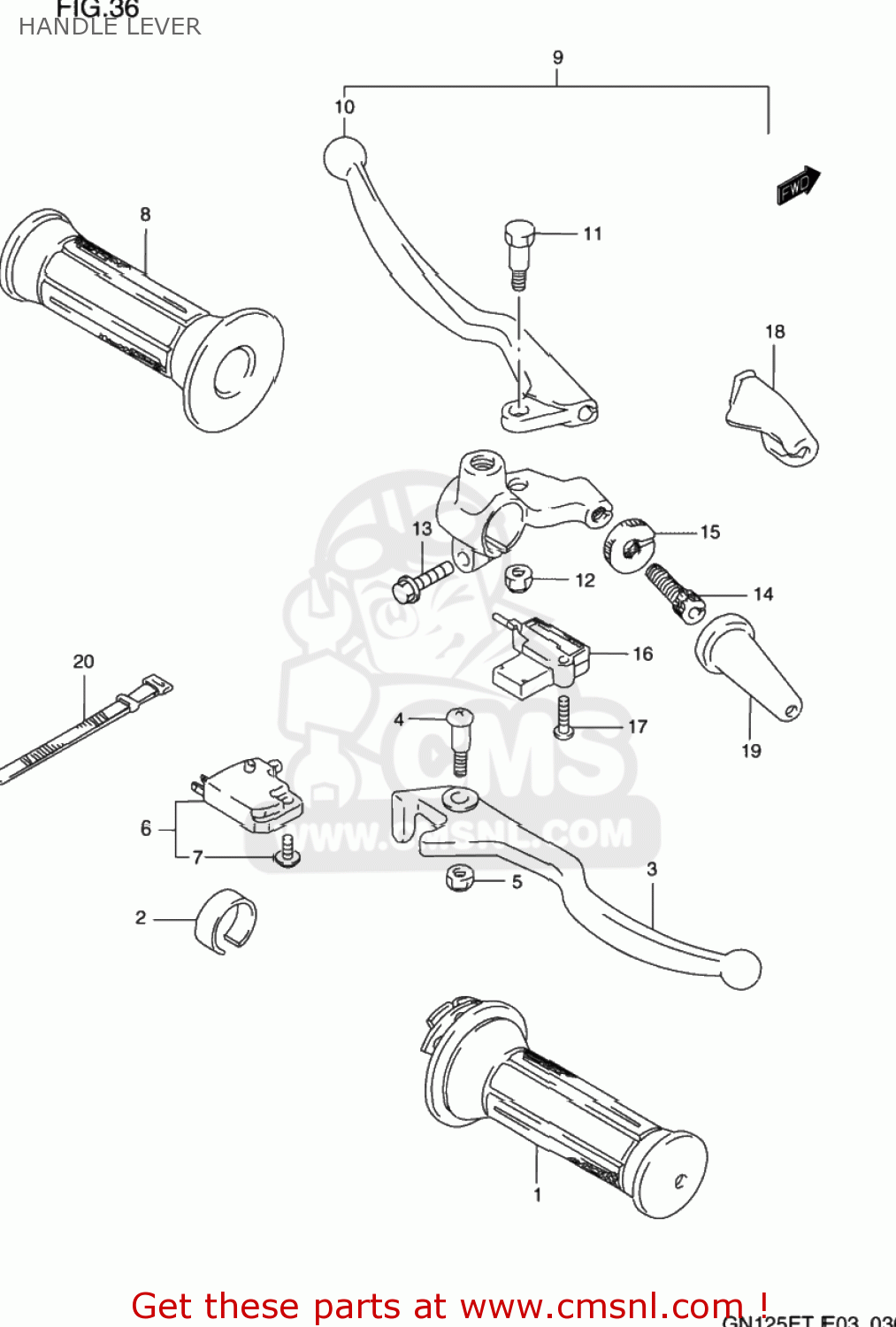

Handle lever diagram GN125E 1992 (N) USA (E03)
HANDLE LEVER GN125E 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5711034300
ref: 1
GRIP,THROTTLE
€ 24.50
2
5611505300
ref: 2
SPACER,HANDLE SWITCH,R
€ 6.00
3
5742113001
ref: 3
LEVER,BRAKE
€ 18.00
4-1
5743113010
ref: 4-1
09139-06114
SCREW
€ 5.50
4-2
5743113030
ref: 4-2
09111-06075
SCREW,BRAKE LEVER
€ 6.50
5
0831921065
ref: 5
08319-2106B
NUT
€ 2.50
6
5746017C00
ref: 6
57460-17C01
SWITCH ASSEMBLY,STOP
€ 32.50
7
5746517C00
ref: 7
SCREW
€ 1.50
8
5721134300
ref: 8
GRIP,L
€ 10.00
9
5750005390
ref: 9
LEVER ASSY,CLUTCH
€ 53.00
10
5762005390
ref: 10
LEVER,CLUTCH
€ 65.50
11
5743145C00
ref: 11
57431-45C01
BOLT,LEVER SET
€ 10.50
12
0831921065
ref: 12
08319-2106B
NUT
€ 2.50
13
0154706205
ref: 13
01547-0620B
BOLT 6X20
€ 2.50
14
5744145C00
ref: 14
ADJUSTER,WIRE
€ 8.50
15
5744245C00
ref: 15
NUT,LOCK
€ 7.50
16
5756005A00
ref: 16
SWITCH,CLUTCH
€ 11.00
17
0213203208
ref: 17
SCREW
€ 0.00
18
5766131000
ref: 18
COVER,CLUTCH LEVER
€ 5.50
19
5827331000
ref: 19
BOOT,CLUTCH CABLE
€ 2.50
20
0940712402
ref: 20
CLAMP(L:120)
€ 3.00
