SPEEDOMETER - TACHOMETER
GN125E 1992 (N) USA (E03)

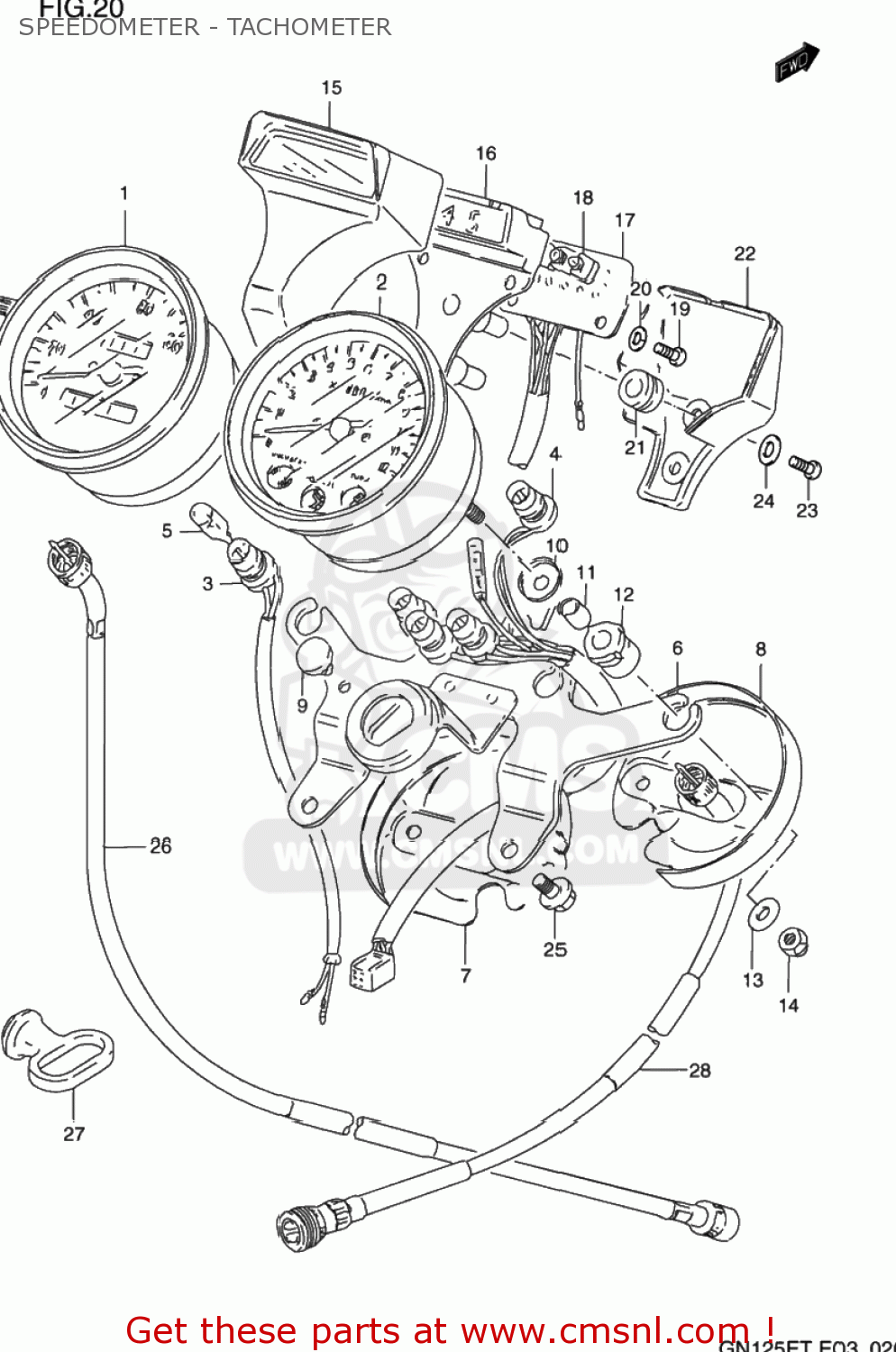

Speedometer - tachometer diagram GN125E 1992 (N) USA (E03)
SPEEDOMETER - TACHOMETER GN125E 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3411005310
ref: 1
METER,SPEED (KM/MPH)
€ 222.50
2
3421005320
ref: 2
34210-03910
TACHOMETER
€ 211.50
3
3417305300
ref: 3
SOCKET,SPEEDOMETER
€ 11.50
4
3427305320
ref: 4
SOCKET,TACHOMETER
€ 27.50
5
0947112082
ref: 5
BULB(12V3.4W,T10,BF175-01450A)
€ 3.50
6
3495005320
ref: 6
BRACKET,METER
€ 27.00
7
3419305300
ref: 7
UNDER COVER,SPEEDOMETER
€ 13.00
8
3429305300
ref: 8
UNDER COVER,TACHOMETER
€ 12.50
9
3495628011
ref: 9
CUSHION,METER
€ 5.50
10-1
3496836010
ref: 10-1
09160-05013
WASHER
€ 1.50
10-2
0916005013
ref: 10-2
WASHER(5.2X16X1)
€ 1.50
11
3418728310
ref: 11
SPACER,SPEEDOMETER
€ 2.00
12
3418928310
ref: 12
CUSHION,METER
€ 2.50
13-1
3418105300
ref: 13-1
09160-05024
WASHER,METER
€ 1.50
13-2
0916005024
ref: 13-2
WASHER(5.5X16X1.5)
€ 1.50
14-1
0831311057
ref: 14-1
08313-1005A
NUT
€ 1.50
14-2
0831310057
ref: 14-2
08313-1005A
NUT
€ 1.50
15
3638005320
ref: 15
PILOT BOX
€ 23.50
16
3638105320
ref: 16
CASE,PILOT BOX
€ 19.50
17
3645305320
ref: 17
INDICATOR,GEAR POSITION
€ 30.50
18
0947112071
ref: 18
BULB(14V1.12W)
€ 5.00
19-1
0211204128
ref: 19-1
02112-0412A
SCREW
€ 1.50
19-2
0211204123
ref: 19-2
02112-0412A
SCREW
€ 1.50
20-1
0832121047
ref: 20-1
08321-0104A
WASHER,LOCK 4M
€ 2.00
20-2
0832101043
ref: 20-2
08321-0104A
WASHER,LOCK
€ 2.00
21
3495528010
ref: 21
CUSHION
€ 4.00
22
3638305320
ref: 22
COVER,LWR
€ 13.50
23-1
0311204165
ref: 23-1
03112-04163
SCREW 4X16
€ 2.00
23-2
0311204163
ref: 23-2
SCREW,
€ 2.00
24-1
0832221047
ref: 24-1
08322-01047
WASHER 4MM
€ 2.00
24-2
0832201047
ref: 24-2
WASHER
€ 2.00
25-1
0111406168
ref: 25-1
01550-06167
BOLT
€ 1.50
25-2
0155006163
ref: 25-2
01550-0616A
BOLT
€ 2.50
26
3491005310
ref: 26
CABLE ASSY,SPEEDOMETER
€ 41.00
27
5862121203
ref: 27
58621-21204
GUIDE,CABLE
€ 7.50
28
3494005300
ref: 28
CABLE ASSY,TACHOMETER
€ 44.00
