CRANKCASE COVER
GN125E 1992 (N) USA (E03)

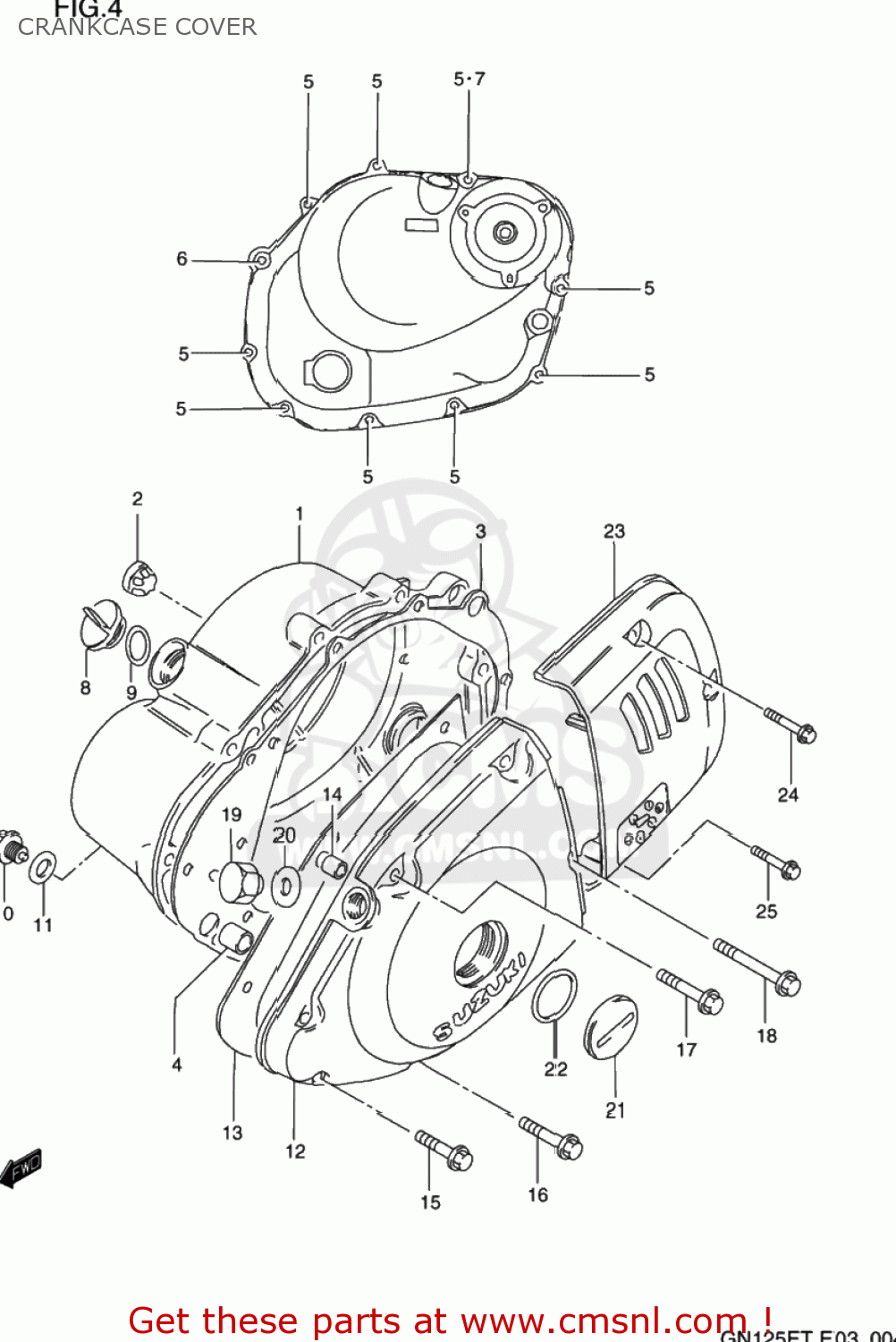

Crankcase cover diagram GN125E 1992 (N) USA (E03)
CRANKCASE COVER GN125E 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1134005301
ref: 1-1
11340-05302
COVER,CLUTCH
€ 112.50
1-2
1134005302
ref: 1-2
COVER,CLUTCH
€ 112.50
2
1197145010
ref: 2
LENS,OIL LEVEL CHECK
€ 13.00
3-1
1148205310
ref: 3-1
11482-05311
GASKET,CLUTCH COVER (NAS)
€ 16.00
3-2
1148205311
ref: 3-2
GASKET,CLUTCH COVER (NAS)
€ 16.00
4
0421113189
ref: 4
PIN
€ 2.50
5
0154706307
ref: 5
BOLT
€ 2.50
6
0154706457
ref: 6
BOLT
€ 2.50
7-1
0916806023
ref: 7-1
GASKET(5.8X13X1.2) (NAS)
€ 2.00
7-2
0916806024
ref: 7-2
GASKET(5.8X11X1.2) (NAS)
€ 2.00
8-1
0925920007
ref: 8-1
PLUG(20X10)
€ 6.50
8-2
0925920018
ref: 8-2
09259-20007
PLUG (20X10)
€ 6.50
9
0928017003
ref: 9
O RING(D:3.1,ID:16.8)
€ 2.00
10-1
0924714012
ref: 10-1
09247-14026
PLUG (14X12)
€ 3.50
10-2
0924714026
ref: 10-2
PLUG(14X12)
€ 3.50
11
0916814002
ref: 11
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
12-1
1135105301
ref: 12-1
11351-05302
COVER,MAGNETO
€ 100.00
12-2
1135105302
ref: 12-2
COVER,MAGNETO
€ 100.00
13-1
1148305310
ref: 13-1
11483-05312
GASKET,MAGNETO COVER (NAS)
€ 8.50
13-2
1148305311
ref: 13-2
11483-05312
GASKET,MAGNETO COVER (NAS)
€ 8.50
14
0421109129
ref: 14
PIN
€ 2.00
15
0154706307
ref: 15
BOLT
€ 2.50
16
0154706357
ref: 16
BOLT
€ 2.50
17
0154706407
ref: 17
BOLT
€ 2.50
18
0154706507
ref: 18
BOLT
€ 2.50
19
0924712104
ref: 19
PLUG,12X9
€ 2.50
20
0916812002
ref: 20
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
21-1
0925926003
ref: 21-1
09259-26011
PLUG
€ 8.50
21-2
0925926011
ref: 21-2
PLUG(26X9)
€ 8.50
22
0928022008
ref: 22
O RING(D:3.1,ID:22.7)
€ 2.50
23-1
1136105300
ref: 23-1
11361-05301
COVER,SPROCKET
€ 22.50
23-2
1136105301
ref: 23-2
COVER,ENGINE SPROCKET
€ 22.50
24
0154705357
ref: 24
BOLT
€ 2.50
25
0154705257
ref: 25
BOLT
€ 2.00
