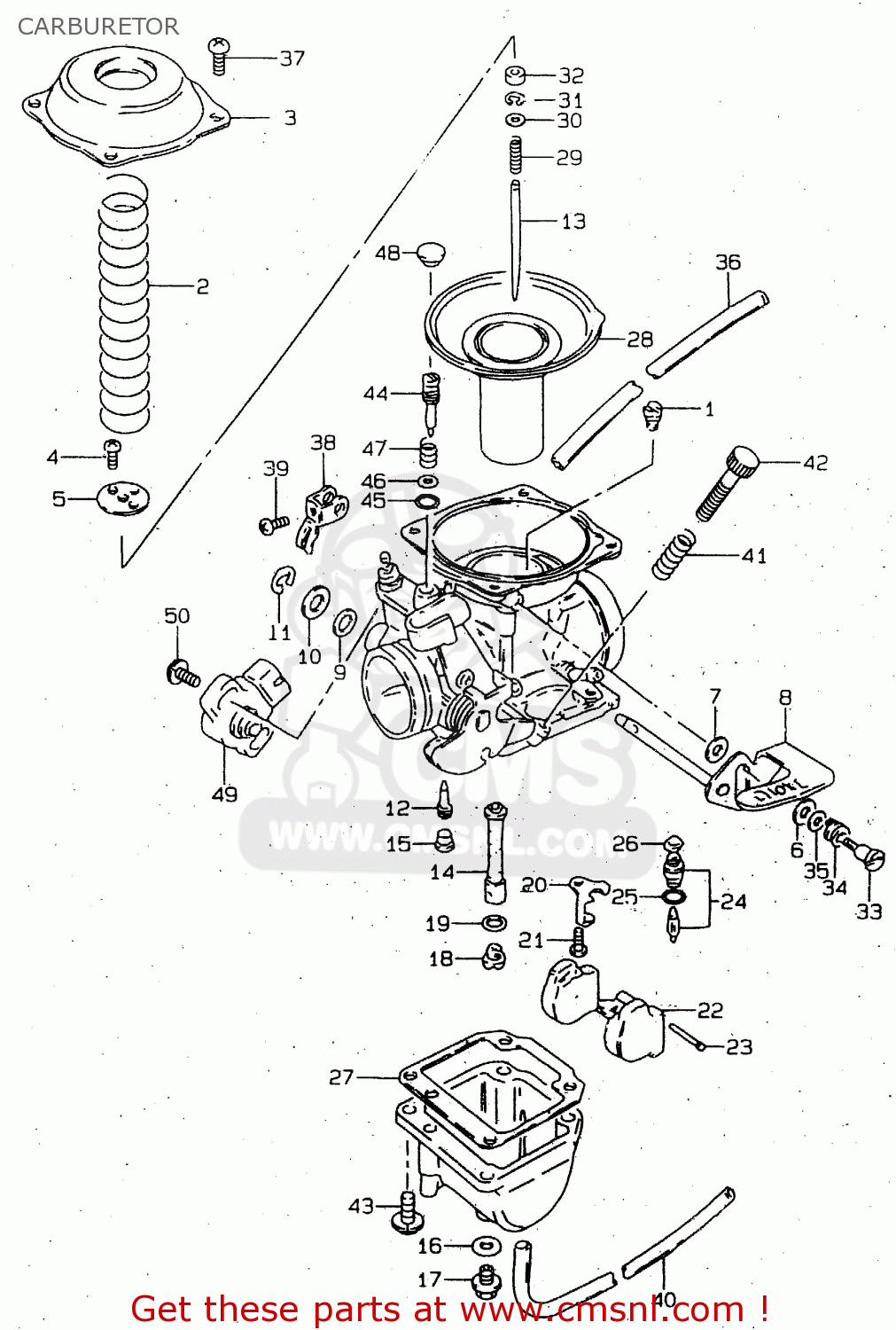

CARBURETOR

ref

part #

description

quantity

0

1320005313
ref: 0
GN125V E1

CARBURETOR ASSY

€ 332.50

0

1320005302
ref: 0
GN125EV E1

CARBURETOR ASSEMBLY

€ 144.50

0

1320005313
ref: 0
E2,E21,E71

CARBURETOR ASSY

€ 332.50

0

13200053D0
ref: 0
E18

CARBURETOR ASSY

€ 286.50

0

1320005302
ref: 0
E30

CARBURETOR ASSEMBLY

€ 144.50

0

1320005500
ref: 0
E4

CARBURETOR ASSY

€ 156.50

0

1320005510
ref: 0
E22

CARBURETOR ASSY

€ 116.50

0

1320005540
ref: 0
P9

CARBURETOR ASSY

€ 0.00

1

0949136005
ref: 1

JET,MAIN(180)

€ 9.50

1

0949129010
ref: 1
E4,E22,P9, <-09491-2

JET,MAIN(147.5)

€ 9.00

2

1350333200
ref: 2

SPRING

€ 8.50

2

1350305350
ref: 2
E4,E22,P9

SPRING,THROTTLE VALVE

€ 8.50

3

1350233210
ref: 3

COVER

€ 19.50

4

0211233083
ref: 4

SCREW

€ 2.00

4

0211203063
ref: 4
E4,E22,P9

SCREW

€ 2.00

5

1338937400
ref: 5

PLATE

€ 5.50

6

1343105300
ref: 6

PACKING (NAS)

€ 5.50

7

0916004015
ref: 7

WASHER(4.1X12X0.8)

€ 2.00

8

1341005300
ref: 8

SHAFT ASSY,STARTER

€ 19.00

8

1341005500
ref: 8
E4,E22,P9

SHAFT ASSY,STARTER

€ 0.00

9

1365151010
ref: 9
E18

SEAL

€ 4.00

10

1355747070
ref: 10
E18

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

11

1361744080
ref: 11
E18

E RING

€ 3.50

12

0949235008
ref: 12

JET,PILOT(35)

€ 7.50

12

0949235010
ref: 12
E18

JET,PILOT(37.5)

€ 10.50

12

0949217006
ref: 12
E4,E22,P9

JET,PILOT(17.5)

€ 7.50

13

1338305310
ref: 13

NEEDLE,JET

€ 15.00

13

1338305300
ref: 13
E30

NEEDLE,JET

€ 0.00

14

0949400370
ref: 14

JET,NEEDLE(P-2)

€ 21.00

14

0949400725
ref: 14
E4,E22,P9

JET,NEEDLE(O-8)

€ 26.00

15

1335744080
ref: 15
E1,E2,E18,E21,E30,E7

PLUG,NEEDLE JET

€ 4.50

16

1324644080
ref: 16

GASKET (NAS)

€ 3.50

17

1324744080
ref: 17

PLUG,DRAIN

€ 9.50

18

0949120012
ref: 18

JET,MAIN(102.5)

€ 8.50

18

0949197003
ref: 18
E4,E22,P9

JET,MAIN(97.5)

€ 8.50

19

1338203110
ref: 19
<-13332-44080

WASHER

€ 2.50

20

1337311400
ref: 20

PLATE,NEEDLE VALVE FITING

€ 7.00

20

1337339110
ref: 20
E18,E30

PLATE

€ 6.50

20

1337311400
ref: 20
GN125V E1

PLATE,NEEDLE VALVE FITING

€ 7.00

20

1337339110
ref: 20
GN125EV E1

PLATE

€ 6.50

21

0211204063
ref: 21

SCREW 4X6

€ 2.00

22

1325005300
ref: 22

FLOAT

€ 30.00

23

1325492311
ref: 23

PIN,FLOAT

€ 2.00

24

1337044500
ref: 24

VALVE ASSY,NEEDLE

€ 40.50

25

1337444080
ref: 25

O-RING,NEEDLE VALVE

€ 6.00

26

1337684110
ref: 26

FILTER

€ 6.50

27

1325105400
ref: 27

GASKET,FLOAT CHAMBER (NAS)

€ 12.00

28

13500053D0
ref: 28

DIAPHRAGM ASSY

€ 203.50

29

1338844030
ref: 29

SPRING

€ 6.00

30

1338244030
ref: 30

WASHER

€ 3.50

31

1339410010
ref: 31

CLIP

€ 4.50

32

1338747010
ref: 32

RING

€ 7.50

33

1343833110
ref: 33

SCREW

€ 5.50

33

1343333110
ref: 33
E4,E22,P9

SCREW,STARTER LEVER

€ 5.50

34

1342643010
ref: 34

SPRING

€ 4.50

35

1361543010
ref: 35

WASHER,STARTER SHAFT

€ 2.50

36

0935250823600
ref: 36
L:600->300

HOSE(5X8.2X600)

€ 13.00

37

0211205087
ref: 37

SCREW

€ 2.00

38

1342205300
ref: 38

LEVER

€ 0.00

39

1360531210
ref: 39

SCREW

€ 3.00

40

0935135653600
ref: 40
L:600->350

HOSE(3.5X6.5X600)

€ 5.50

41

1326837420
ref: 41

SPRING,THROTTLE SCREW

€ 3.50

42

1326725D00
ref: 42
<-13267-37100

ADJUSTER

€ 9.00

43

1360104148
ref: 43

SCREW

€ 2.50

43

1360145C00
ref: 43
E4,E22,P9

SCREW

€ 2.50

44

1327945400
ref: 44
E2,E4,E21,E22,E71

SCREW,PILOT

€ 8.00

44

1327945400
ref: 44
E30

SCREW,PILOT

€ 8.00

44

1327945400
ref: 44
P9

SCREW,PILOT

€ 8.00

44

1327945400
ref: 44
GN125V E1

SCREW,PILOT

€ 8.00

44

1327945400
ref: 44
GN125EV E1

SCREW,PILOT

€ 8.00

45

1329529900
ref: 45
EXCEPT E18

O RING,PILOT AIR SCREW

€ 4.00

46

1329129900
ref: 46
EXCEPT E18

WASHER

€ 2.00

47

1326847070
ref: 47
EXCEPT E18

SPRING

€ 5.00

48

1328105A00
ref: 48
E1,E2,E21,E30,E71

PLUG

€ 3.50

48

1335736A00
ref: 48
E4,E22,P9

PLUG

€ 4.50

49

1358005500
ref: 49
E4,E22

SENSOR ASSY

€ 104.00

50

1360255A00
ref: 50
E4,E22

SCREW, SENSOR

€ 3.00
