FRONT WHEEL (GN125V/W/X)
GN125E 1999 (X) SINGAPORE (E30)

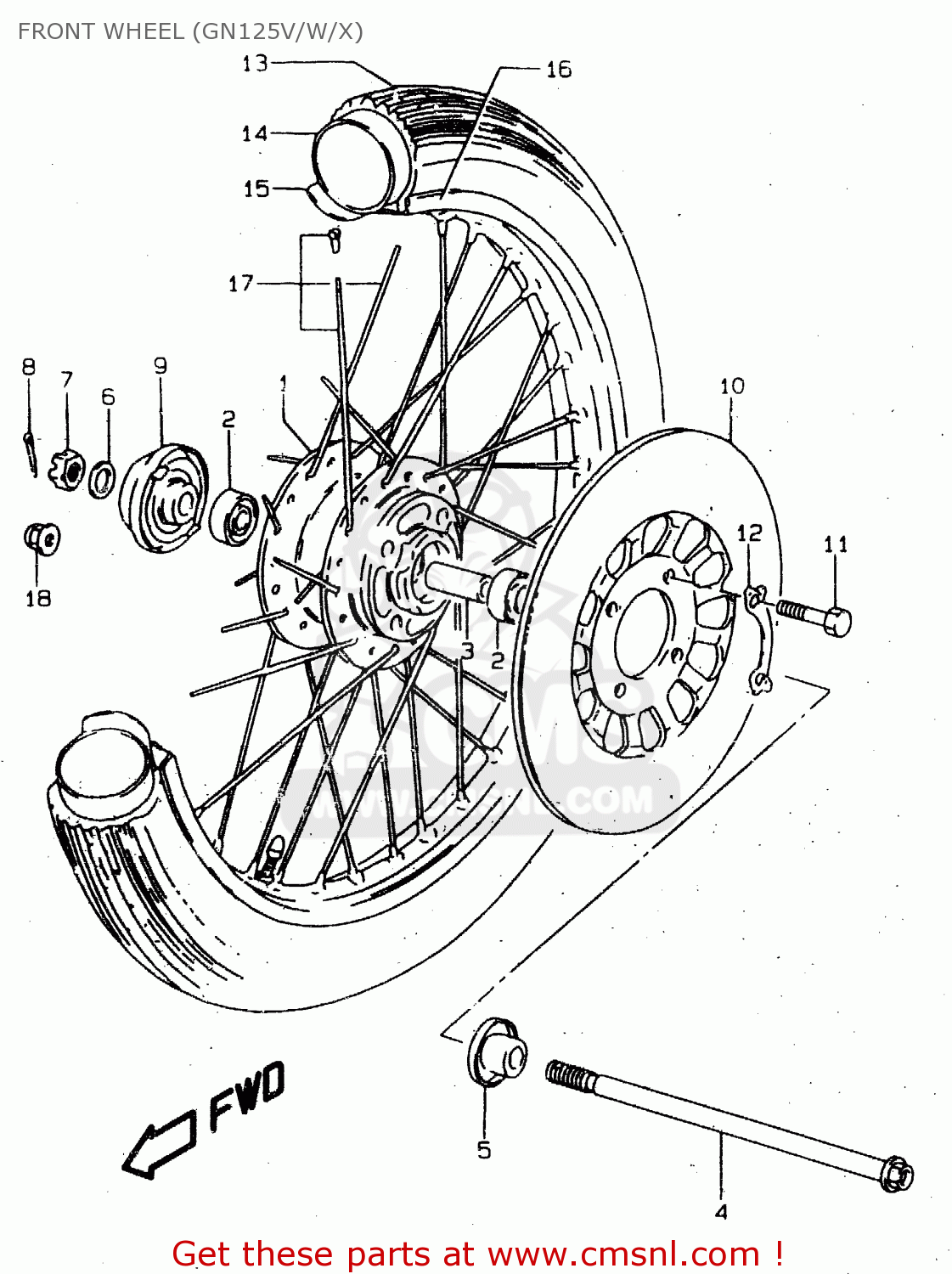

Front wheel (gn125v/w/x) diagram GN125E 1999 (X) SINGAPORE (E30)
FRONT WHEEL (GN125V/W/X) GN125E 1999 (X) SINGAPORE (E30)
×
prices are in EUR
ref
part #
description
quantity
1
5411136210
ref: 1
HUB,FR WHEEL
€ 503.50
2
0812363017
ref: 2
BEARING
€ 13.50
3
0918012144
ref: 3
SPACER(12.5X19X52)
€ 4.50
4
5471141101
ref: 4
MODEL V/W E1,E2,E4,E
AXLE,FR
€ 42.00
4
5471105300
ref: 4
E18,E22
AXLE,FR
€ 21.50
4
5471105300
ref: 4
MODEL X, E2,E4,E21,E
AXLE,FR
€ 21.50
5
5474011300
ref: 5
SPACER,FR AXLE,L
€ 13.50
6
0832201127
ref: 6
MODEL V/W E1,E2,E4,E
WASHER
€ 2.00
7
0914112003
ref: 7
MODEL V/W E1,E2,E4,E
NUT
€ 4.50
8
0411130308
ref: 8
MODEL V/W E1,E2,E4,E
COTTER PIN
€ 1.50
9
5460036400
ref: 9
BOX ASSY,SPEEDOMETER GEAR
€ 60.00
10
5921113001
ref: 10
DISC,FR BRAKE
€ 186.50
11
0910008140
ref: 11
BOLT(8X25)
€ 2.00
12
0916908019
ref: 12
WASHER
€ 2.00
13
5510012B00
ref: 13
TIRE,FR(2.75-18)
€ 201.00
14
5520011601
ref: 14
TUBE,INNER
€ 24.50
15
5526111010
ref: 15
PROTECTOR,INNER TUBE
€ 3.50
16
5531118420
ref: 16
RIM,FR WHEEL
€ 98.50
17
5532036221
ref: 17
SPOKE ASSY,FR
€ 33.50
18
0831931128
ref: 18
E18,E22
NUT 12MM
€ 4.00
18
0831931128
ref: 18
MODEL X, E2,E4,E21,E
NUT 12MM
€ 4.00
