WIRING HARNESS (GN125EV/EW/EX)

GN125E 1999 (X) SINGAPORE (E30)

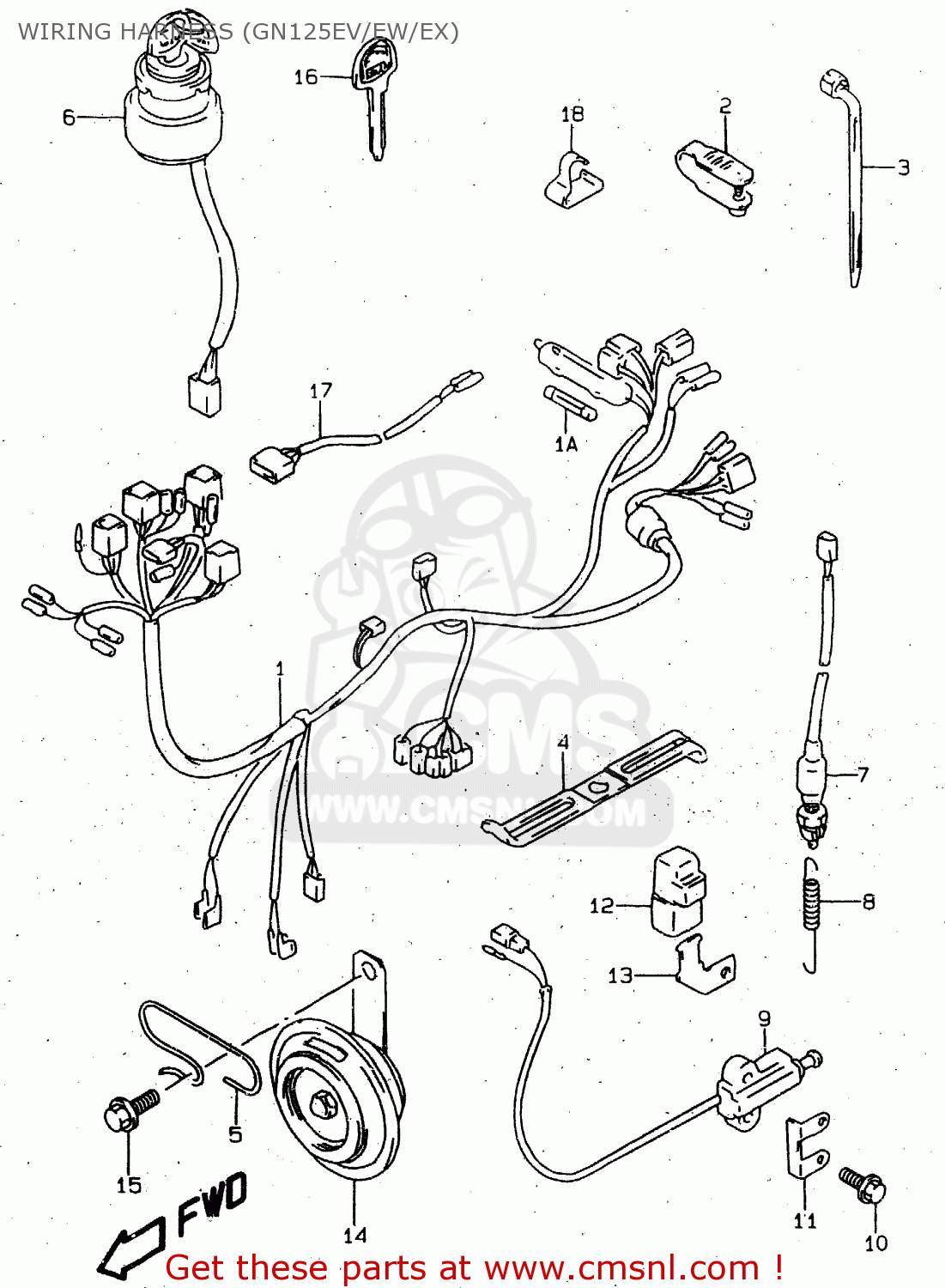

Wiring harness (gn125ev/ew/ex) diagram GN125E 1999 (X) SINGAPORE (E30)

WIRING HARNESS (GN125EV/EW/EX) GN125E 1999 (X) SINGAPORE (E30)
WIRING HARNESS (GN125EV/EW/EX) GN125E 1999 (X) SINGAPORE (E30)
WIRING HARNESS (GN125EV/EW/EX) GN125E 1999 (X) SINGAPORE (E30)
prices are in EUR
ref
part #
description
quantity
1
36610053C0
ref: 1
HARNESS,WIRING
€ 0.00
1A
0948115001
ref: 1A
FUSE(15A)
0948115001
€ 3.00
2
0940705403
ref: 2
CLAMP,L:88
0940705403
€ 1.50
3
0940714403
ref: 3
CLAMP(L:125)
0940714403
€ 2.50
3
0940718403
ref: 3
CLAMP L:165
€ 2.50
3
0940725401
ref: 3
CLAMP(L:235)
0940725401
€ 4.00
4
3665105301
ref: 4
CLAMP,STARTER MOTOR LEAD
3665105301
€ 5.00
5
3661937300
ref: 5
CLAMP,WIRING HARNESS
€ 0.00
6
3711033021
ref: 6
SWITCH ASSY,IGNITION
3711033021
€ 73.50
7
3774031D00
ref: 7
SWITCH ASSY,STOP LAMP
3774031D00
€ 20.50
8
0944306078
ref: 8
SPRING
0944306078
€ 3.00
9
3784011X50
ref: 9
SWITCH ASSY,SIDE STAND
3784011X50
€ 76.00
10
0155006203
ref: 10
BOLT
0155006203
€ 2.50
11
3784114D00
ref: 11
PROTECTOR,SIDE STAND SWITCH
3784114D00
€ 4.50
12
3874024X50
ref: 12
RELAY ASSY
3874024X50
€ 37.50
13
3874105300
ref: 13
BRACKET,SIDE STAND RELAY
€ 4.50
14
3850038361
ref: 14
HORN ASSY
€ 29.00
15
0155008163
ref: 15
BOLT
0155008163
€ 3.00
16
3714519710
ref: 16
OPT
KEY,BLANK
3714519710
€ 13.00
17
3685205300
ref: 17
WIRE,CLUTCH SWITCH LEAD
3685205300
€ 25.00
18
3679146700
ref: 18
HOLDER,FUSE CASE
3679146700
€ 9.00
