FRAME COVER (MODEL V/W)
GN125E 1999 (X) SINGAPORE (E30)

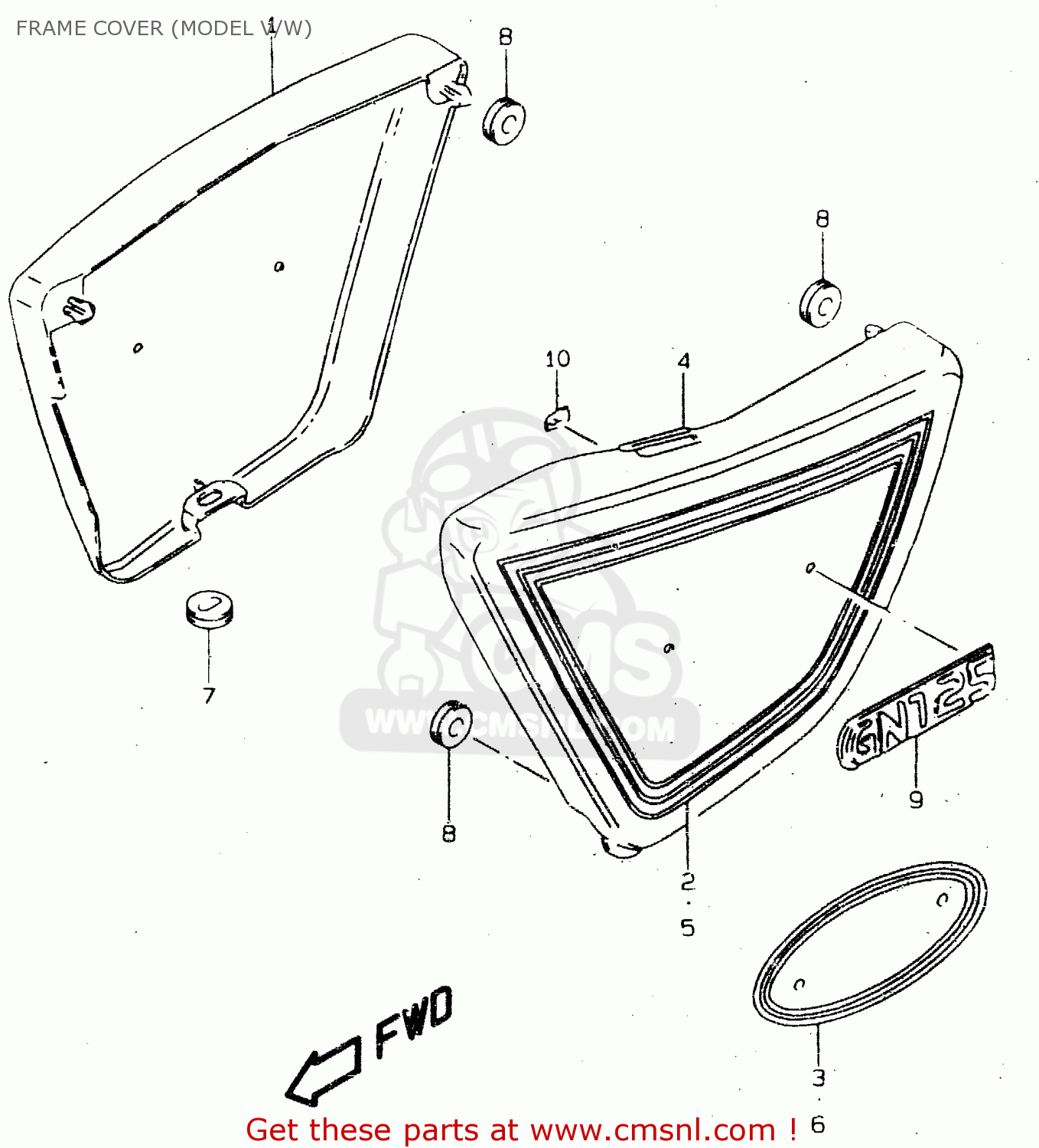

Frame cover (model v/w) diagram GN125E 1999 (X) SINGAPORE (E30)
FRAME COVER (MODEL V/W) GN125E 1999 (X) SINGAPORE (E30)
×
prices are in EUR
ref
part #
description
quantity
1
4711105301Y0R
ref: 1
MODEL V
COVER,FRAME,RIGHT (RED)
€ 39.00
1
471110530119A
ref: 1
MODEL V E1
COVER,FRAME,R(RED)
€ 63.00
1
471110530133J
ref: 1
COVER,FRAME,R(BLACK)
€ 63.00
1
471110530119A
ref: 1
MODEL W
COVER,FRAME,R(RED)
€ 63.00
1
4711105301Y98
ref: 1
MODEL W
COVER,FRAME,R(GREEN)
€ 53.50
2
6813038330G8G
ref: 2
MODEL V FOR YOR
TAPE SET,FRAME COVER,R
€ 19.50
2
6813038330G34
ref: 2
MODEL V FOR 33J
TAPE SET,FRAME COVER,R
€ 18.00
2
6813038330G33
ref: 2
MODEL V E1 FOR 19A
TAPE SET,FRAME COVER,R
€ 18.00
3
6813538300F6N
ref: 3
MODEL W
TAPE,FRAME COVER
€ 14.50
4
4721105301Y0R
ref: 4
MODEL V
C0VER,FRAME,L(RED)
€ 49.50
4
472110530119A
ref: 4
MODEL V E21
COVER,FRAME,L(RED)
€ 53.50
4
472110530133J
ref: 4
COVER,FRAME,L
€ 65.00
4
472110530119A
ref: 4
MODEL W
COVER,FRAME,L(RED)
€ 53.50
4
4721105301Y98
ref: 4
MODEL W
COVER,FRAME,L(GREEN)
€ 45.00
5
6814038330G8G
ref: 5
MODEL V FOR YOR
TAPE SET,FRAME COVER,L
€ 20.00
5
6814038330G34
ref: 5
MODEL V FOR 33J
TAPE SET,FRAME COVER,L
€ 17.50
5
6814038330G33
ref: 5
MODEL V E1 FOR 19A
TAPE SET,FRAME COVER,L
€ 18.00
6
6813538300F6N
ref: 6
MODEL W
TAPE,FRAME COVER
€ 14.50
7
0932003004
ref: 7
CUSHION
€ 2.00
8
0932008018
ref: 8
CUSHION
€ 4.00
9
6813105310
ref: 9
EMBLEM,FRAME COVER
€ 20.00
10
0914803003
ref: 10
NUT
€ 2.00
