REAR COMBINATION LAMP (E1,E71,P9)

GN125E 1999 (X) SINGAPORE (E30)

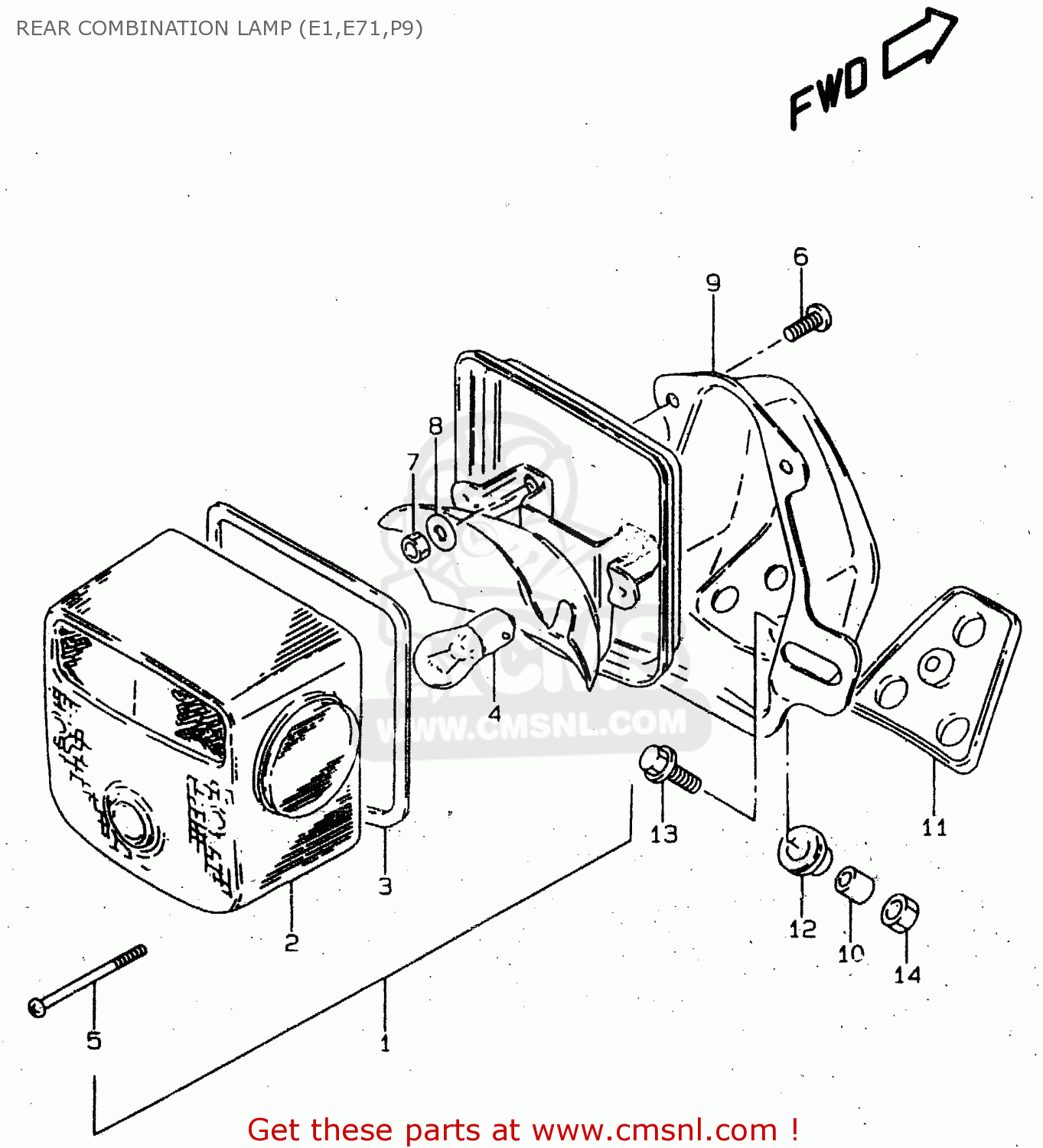

Rear combination lamp (e1,e71,p9) diagram GN125E 1999 (X) SINGAPORE (E30)

REAR COMBINATION LAMP (E1,E71,P9) GN125E 1999 (X) SINGAPORE (E30)

REAR COMBINATION LAMP (E1,E71,P9) GN125E 1999 (X) SINGAPORE (E30)

prices are in EUR

ref

part #

description

quantity

1

3572005311999
ref: 1

LAMP UNIT, TAIL

€ 115.50

2

3571248624
ref: 2

LENS,RR COMBIN

€ 66.00

3

3571330510
ref: 3

GASKET (NAS)

€ 6.00

4

0947112035
ref: 4

BULB(12V23W)

€ 5.50

5

0912504002
ref: 5

SCREW (4X55)

€ 1.50

6

0211205127
ref: 6

SCREW

€ 2.50

7

0831000057
ref: 7

NUT

€ 2.50

8

0832201057
ref: 8

WASHER

€ 2.50

9

3573026470
ref: 9

BRACKET UNIT,TAIL LAMP

€ 91.00

10

3576626470
ref: 10

SPACER

€ 2.00

11

3576526470
ref: 11

CUSHION

€ 10.00

12

3576426470
ref: 12

CUSHION

€ 2.50

13

0911606167
ref: 13

BOLT(6X20)

€ 2.00

14

0831000063
ref: 14

NUT 6MM

€ 2.00
